Thickness 0.5mm 10x10mm HPSI Silicon Carbide Substrate
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||20 pcs|
|Packaging Details:||single wafer package in 100-grade cleaning room|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Material:||SiC Single Crystal HPSI||Grade:||Production Grade|
|Thicnkss:||0.5mm||Suraface:||Double Side Polished|
|Application:||Device Maker Polishing Test||Diameter:||5X5mmt|
|Resistivity:||> 1E7 Ω.cm|
HPSI Silicon Carbide Substrate,
0.5mm Silicon Carbide Substrate,
10x10mm HPSI SIC Wafers

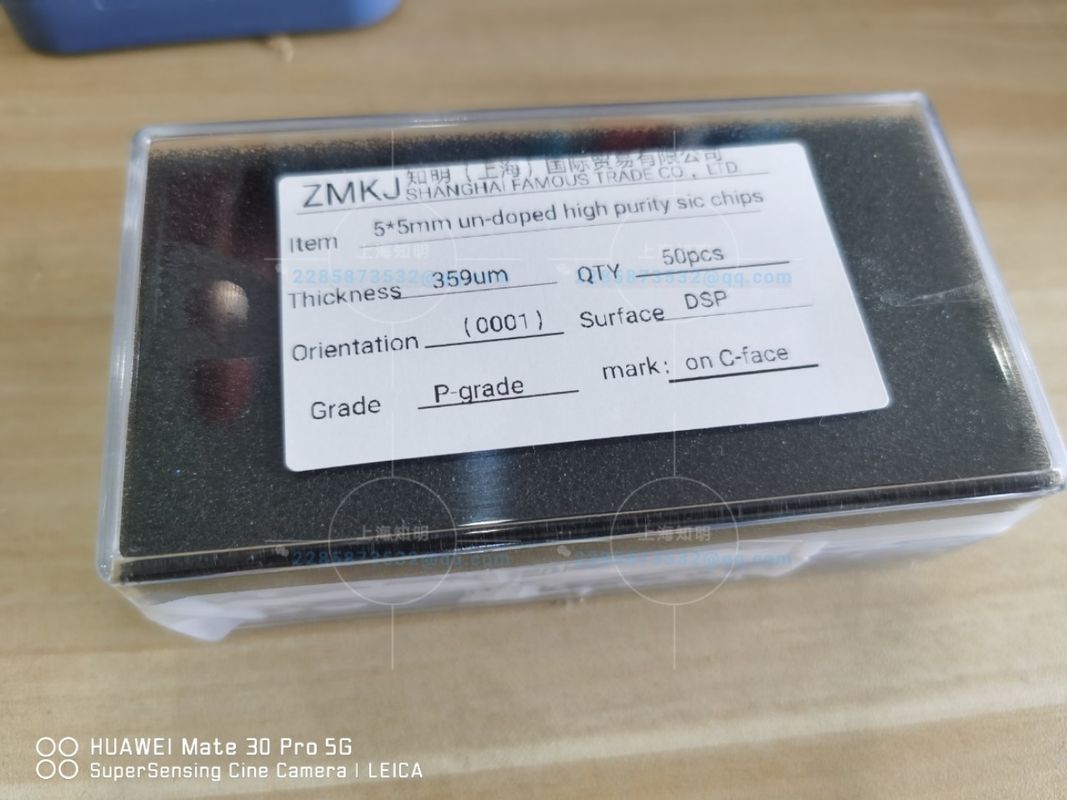

customized size 10x10mm 5*5mm high purity un-doped HPSI SIC wafers forquantum optics research test
About Silicon Carbide (SiC)Crystal
Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.
|Property||4H-SiC, Single Crystal||6H-SiC, Single Crystal|
|Lattice Parameters||a=3.076 Å c=10.053 Å||a=3.073 Å c=15.117 Å|
|Density||3.21 g/cm3||3.21 g/cm3|
|Therm. Expansion Coefficient||4-5×10-6/K||4-5×10-6/K|
|Refraction Index @750nm||
no = 2.61
ne = 2.66
no = 2.60
ne = 2.65
|Thermal Conductivity (N-type, 0.02 ohm.cm)||
|Thermal Conductivity (Semi-insulating)||
|Band-gap||3.23 eV||3.02 eV|
|Break-Down Electrical Field||3-5×106V/cm||3-5×106V/cm|
|Saturation Drift Velocity||2.0×105m/s||2.0×105m/s|
Standard specification for sic wafers
4H-N Seed crystal grade 4inch diameter Silicon Carbide (SiC) Substrate Specification
4H-N Type / High Purity SiC wafer/ingots
2 inch 4H N-Type SiC wafer/ingots
3 inch 4H N-Type SiC wafer
4 inch 4H N-Type SiC wafer/ingots
6 inch 4H N-Type SiC wafer/ingots
4H Semi-insulating / High Purity SiC wafer
2 inch 4H Semi-insulating SiC wafer
3 inch 4H Semi-insulating SiC wafer
4 inch 4H Semi-insulating SiC wafer
6 inch 4H Semi-insulating SiC wafer
6H N-Type SiC wafer
2 inch 6H N-Type SiC wafer/ingot
Customzied size for 2-6inch
About ZMKJ Company
ZMKJ can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .
