8inch 200mm Polishing Silicon Carbide Ingot Substrate Sic Chip Semiconductor
Product Details:
Place of Origin: | CHINA |
Brand Name: | ZMKJ |
Certification: | ROHS |
Model Number: | 8inch sic wafers 4h-n |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | by case |
Packaging Details: | single wafer package in 100-grade cleaning room |
Delivery Time: | 1-6weeks |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1-50pcs/month |
Detail Information |
|||
Material: | SiC Single Crystal 4H-N Type | Grade: | Dummy /Production Grade |
---|---|---|---|
Thicnkss: | 0.35mm 0.5mm | Suraface: | Double Side Polished |
Application: | Device Maker Polishing Test | Diameter: | 200±0.5mm |
Highlight: | 200mm Polishing Silicon Carbide,Sic Chip Semiconductor,8inch Sic Semiconductor |
Product Description
Custom Size Ceramic Substrate / Silicon Carbide Ceramic Excellent CorrosionSingle crystal single side polished silicon wafer sic wafer polishing wafer manufacturer Silicon Carbide SiC Wafer4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers, sic crystal ingots sic semiconductor substrates,Silicon Carbide crystal Wafer/ Customzied as-cut sic wafers
About Silicon Carbide (SiC)Crystal
Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.
Property | 4H-SiC, Single Crystal | 6H-SiC, Single Crystal |
Lattice Parameters | a=3.076 Å c=10.053 Å | a=3.073 Å c=15.117 Å |
Stacking Sequence | ABCB | ABCACB |
Mohs Hardness | ≈9.2 | ≈9.2 |
Density | 3.21 g/cm3 | 3.21 g/cm3 |
Therm. Expansion Coefficient | 4-5×10-6/K | 4-5×10-6/K |
Refraction Index @750nm |
no = 2.61 ne = 2.66 |
no = 2.60 ne = 2.65 |
Dielectric Constant | c~9.66 | c~9.66 |
Thermal Conductivity (N-type, 0.02 ohm.cm) |
a~4.2 W/cm·K@298K c~3.7 W/cm·K@298K |
|
Thermal Conductivity (Semi-insulating) |
a~4.9 W/cm·K@298K c~3.9 W/cm·K@298K |
a~4.6 W/cm·K@298K c~3.2 W/cm·K@298K |
Band-gap | 3.23 eV | 3.02 eV |
Break-Down Electrical Field | 3-5×106V/cm | 3-5×106V/cm |
Saturation Drift Velocity | 2.0×105m/s | 2.0×105m/s |
Physical & Electronic Properties of
Wide Energy Bandgap (eV)
4H-SiC: 3.26 6H-SiC: 3.03 GaAs: 1.43 Si: 1.12
Electronic devices formed in SiC can operate at extremely high temperatures without suffering from intrinsic conduction effects because of the wide energy bandgap. Also, this property allows SiC to emit and detect short wavelength light which makes the fabrication of blue light emitting diodes and nearly solar blind UV photodetectors possible.
High Breakdown Electric Field [V/cm (for 1000 V operation)]
4H-SiC: 2.2 x 106* 6H-SiC: 2.4 x 106* GaAs: 3 x 105 Si: 2.5 x 105
SiC can withstand a voltage gradient (or electric field) over eight times greater than than Si or GaAs without undergoing avalanche breakdown. This high breakdown electric field enables the fabrication of very high-voltage, high-power devices such as diodes, power transitors, power thyristors and surge suppressors, as well as high power microwave devices. Additionally, it allows the devices to be placed very close together, providing high device packing density for integrated circuits.
High Thermal Conductivity (W/cm · K @ RT)
4H-SiC: 3.0-3.8 6H-SiC: 3.0-3.8 GaAs: 0.5 Si: 1.5
SiC is an excellent thermal conductor. Heat will flow more readily through SiC than other semiconductor materials. In fact, at room temperature, SiC has a higher thermal conductivity than any metal. This property enables SiC devices to operate at extremely high power levels and still dissipate the large amounts of excess heat generated.
High Saturated Electron Drift Velocity [cm/sec (@ E ≥ 2 x 105 V/cm)]

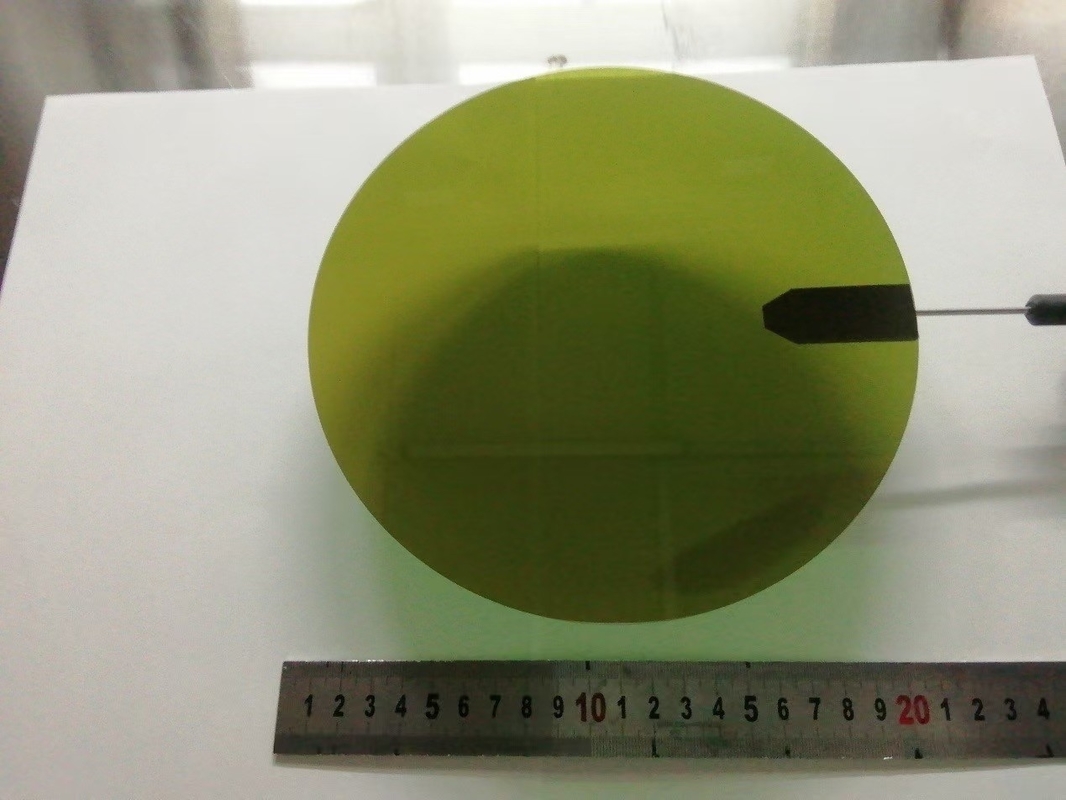

Product show:
4H-SiC: 2.0 x 107 6H-SiC: 2.0 x 107 GaAs: 1.0 x 107 Si: 1.0 x 107
SiC devices can operate at high frequencies (RF and microwave) because of the high saturated electron drift velocity of SiC.
