12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade

12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade

Brand Name: ZMSH
Model Number: Sapphire Wafer
MOQ: 25
Payment Terms: T/T
Detail Information
Place of Origin:
China
Material:
Silicon Carbide Wafer
Thickness:
3mm(other Thickness Ok)
Surface:
DSP
TTV:
<15um
BOW:
<20um
Warp:
<30um
Dia:
12inch 300mm
Highlight:

12 inch SiC Wafer

,

Conductive Dummy Grade SiC Wafer

Product Description

12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade



Abstract



Silicon carbide (SiC), as a third-generation wide-bandgap semiconductor material, offers superior properties such as ​high breakdown field strength (>30 MV/cm), ​excellent thermal conductivity (>1,500 W/m·K), and ​high electron mobility. These attributes make SiC critical for advanced applications in 5G, electric vehicles (EVs), and renewable energy. As the industry shifts toward mass production, the adoption of 12-inch SiC wafers (also known as 300mm SiC wafers) plays a crucial role in scaling up output and reducing costs. The transition to large-diameter SiC wafers not only supports higher device yields and improved performance but also enables a 15%-20% annual cost reduction (per Yole data), accelerating the commercialization of SiC-based solutions.



Key Advantages:

  • ​12inch SiC wafer Power Efficiency: SiC-based devices reduce energy consumption by ​**up to 70%**​ compared to silicon in high-voltage/current applications.
  • ​12inch SiC wafer Thermal Management: Operates stably at ​**200°C+**​ in automotive and aerospace environments.
  • ​12inch SiC wafer ​System Integration: Enables ​50%-80% smaller form factors​ for power modules, freeing space for additional components.






Compony Introduction



Our company, ZMSH, has been a prominent player in the semiconductor industry for over a decade, boasting a professional team of factory experts and sales personnel. We specialize in providing customized sapphire wafer and SiC wafer solutions, including 12inch SiC wafers and 300mm SiC wafers, to meet diverse client needs across high-tech sectors. Whether it’s tailored designs or OEM services, ZMSH is equipped to deliver high-quality SiC wafer products with competitive pricing and reliable performance. We are committed to ensuring customer satisfaction at every stage and invite you to contact us for more information or to discuss your specific requirements.






Silicon wafer Tecnical Parameters





Parameter Specification
Polytype
4H SiC
Conductivity Type
N
Diameter
300.00 ± 0.5 mm
Thickness
700 ± 50 µm
Crystal Surface Orientation Axis
4.0° toward <11-20> ± 0.5°
Notch depth
1~1.25mm
Notch orientation
<1-100> ± 5°
Si Face
CMP polished
C Face
CMP polished










SiC Wafer Applications



1. Electric Vehicles
12inch SiC-based power devices revolutionize EV design by addressing ​key limitations of silicon:

  • Higher Efficiency: Enables longer driving ranges and faster charging under extreme conditions (e.g., 800V architectures).
  • Thermal Stability: Performs reliably in harsh environments (e.g., battery heat management systems).
  • Space Optimization: Reduces component size by up to 50%, freeing space for advanced sensors and safety systems.

2. Renewable Energy
300 mm SiC technology accelerates the adoption of ​solar and wind energy:

  • Solar Inverters: Enhances grid integration efficiency, reducing energy loss during power conversion.
  • Wind Turbines: Supports higher power densities in offshore systems, lowering per-watt installation costs.

3. 5G and Telecommunications
300mm SiC addresses critical challenges in ​5G network deployment:

  • High-Frequency OPERATION: Enables ultra-fast data transmission (e.g., mmWave bands) with minimal signal loss.
  • Energy Efficiency: Reduces power consumption in base stations by up to 40%, aligning with telecom operators’ sustainability goals.

4. Industrial and Consumer Electronics
SiC drives innovation across diverse sectors:

  • Industrial Automation: Powers high-voltage motors and inverters in factories, improving productivity and energy reuse.
  • Consumer Devices: Enables compact, high-performance chargers and power adapters for laptops and smartphones.








Product Display - ZMSH

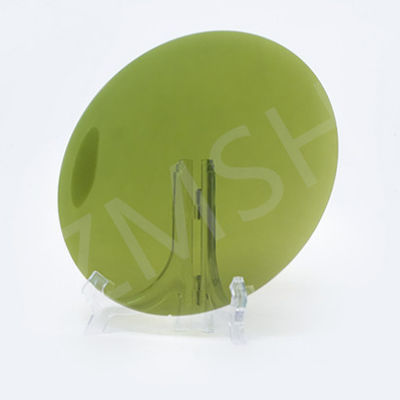

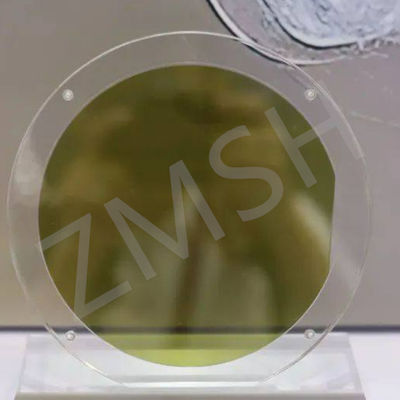

12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade 0    12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade 1

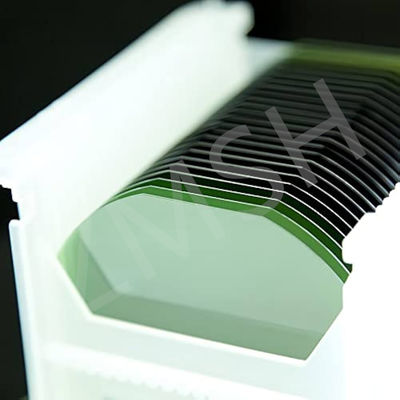

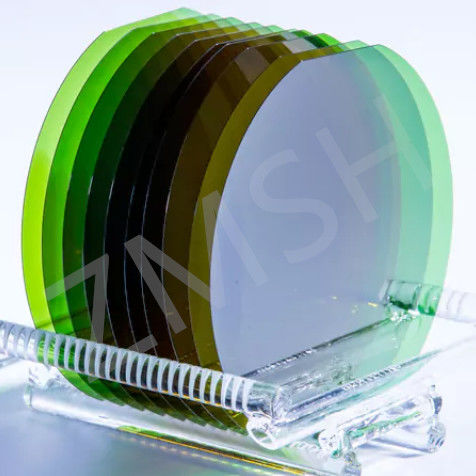

12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade 2    12 inch SiC Wafer 300mm Silicon Carbide wafer Conductive Dummy Grade N-Type Research grade 3






SiC Wafer FAQ



Q: How does 12inch SiC compare to silicon in long-term reliability?​

A: 12inch SiC’s ​high-temperature stability​ and ​radiation resistance​ make it more durable in harsh environments (e.g., EVs, aerospace). We support customers with ​AEC-Q101 certification​ and ​accelerated aging tests​ to ensure compliance with stringent reliability standards.



Q: What are the main challenges in adopting SiC technology today?​

A: While SiC offers superior performance, ​cost and maturity​ remain barriers for mass adoption. However, industry trends show ​yearly cost reductions of 15%-20%​ (Yole data) and ​rising demand from automakers and renewables​ are accelerating adoption. Our solutions address these challenges through ​scaled production​ and ​proven reliability validation.



Q: Can SiC integrate with existing silicon-based systems?​

A: Yes! SiC devices use ​compatible packaging​ (e.g., TO-247) and pin configurations, enabling seamless upgrades. However, ​optimized gate-drive designs​ are required to fully leverage SiC’s high-frequency benefits.
