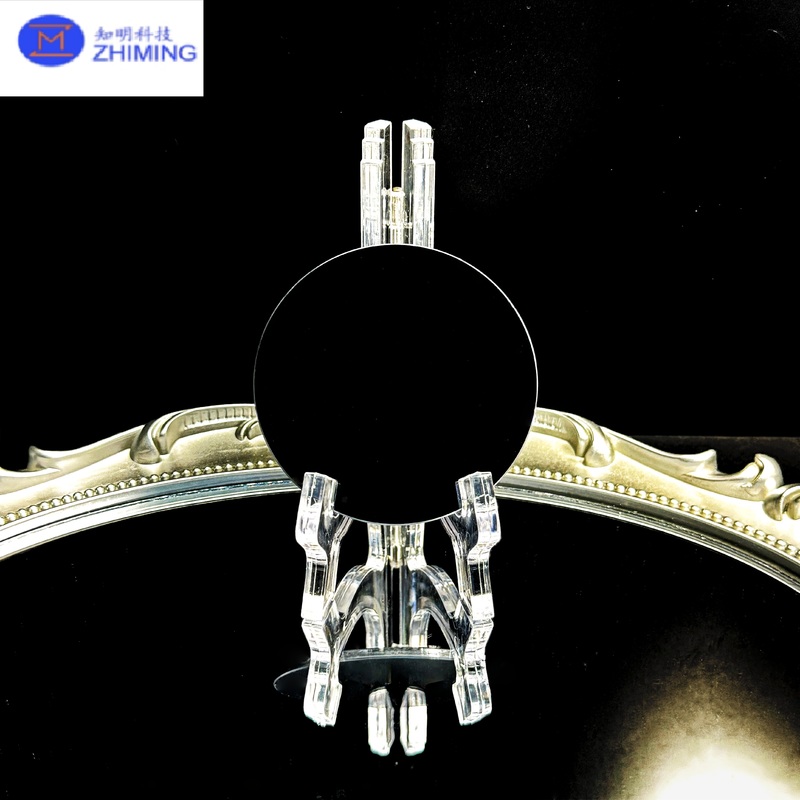

Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components

Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components

Brand Name: ZMSH
MOQ: 1
Price: by case
Packaging Details: custom cartons
Payment Terms: T/T
Detail Information
Place of Origin:
China
Supply Ability:
By case
Product Description

Product Introduction

The Silicon Carbide (SiC) Mirror is a high-performance optical component designed for applications that require exceptional rigidity, thermal stability, and optical precision. Fabricated from advanced SiC ceramics, these mirrors combine ultra-lightweight structure with superior mechanical strength and excellent thermal conductivity, making them ideal for aerospace optics, astronomical telescopes, laser systems, and semiconductor equipment.



Compared with traditional glass or metal mirrors, SiC mirrors exhibit outstanding dimensional stability across a wide temperature range and allow precise optical performance even under extreme environmental conditions such as vacuum, cryogenic, or high-temperature operation.

Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components 0     Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components 1


Manufacturing Principle

Silicon carbide mirrors are produced using CVD (Chemical Vapor Deposition) or reaction-bonded sintering (RB-SiC) techniques.

  1. Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components 2Base Material Formation: Fine SiC powder is shaped into a lightweight substrate through precision molding or additive manufacturing.

  2. Sintering and Densification: The substrate is sintered under high temperature to achieve near-theoretical density and superior rigidity.

  3. CVD SiC Coating: A thin CVD SiC layer is deposited to enhance surface smoothness and reflectivity while maintaining high hardness and corrosion resistance.

  4. Precision Polishing: The mirror surface is polished to achieve nanometer-level roughness (Ra < 1 nm), ensuring exceptional optical accuracy.

This hybrid architecture (RB-SiC + CVD SiC) combines the advantages of low mass, high stiffness, and optical-grade surface finish.


Key Advantages

  • Ultra-Lightweight Design: High stiffness-to-weight ratio enables thinner and larger mirrors with reduced mass.

  • Excellent Thermal Conductivity: Rapid heat dissipation prevents distortion caused by temperature gradients.

  • High Specific Stiffness: Maintains optical figure accuracy under dynamic or vibration environments.

  • Superior Surface Quality: Achieves mirror roughness below 1 nm RMS, suitable for UV, visible, and IR wavelengths.

  • Chemical & Radiation Resistance: Stable in vacuum, radiation, and harsh chemical atmospheres.

  • Customizable: Available in flat, spherical, parabolic, and aspheric geometries.

Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components 3    Silicon Carbide Mirror (SiC Mirror) – High-Precision Lightweight Optical Components 4


Typical Applications

  • Space and Astronomical Telescopes: Lightweight mirrors for satellite and deep-space observation systems.

  • High-Power Laser Optics: Reflective optics in CO₂, YAG, and fiber laser systems.

  • Infrared Imaging Systems: Thermal imaging and long-wave IR reflection optics.

  • Semiconductor Processing: Optical components in lithography, inspection, and wafer alignment systems.

  • Defense and Aerospace Systems: Precision mirrors for targeting, scanning, and beam steering.


Technical Specifications (Typical)

Parameter Value
Material Reaction-bonded or CVD SiC
Density 3.15 g/cm³
Young’s Modulus 410 GPa
Thermal Conductivity 120–200 W/m·K
Coefficient of Thermal Expansion (CTE) 2.2×10⁻⁶ /K
Surface Roughness (Ra) < 1 nm
Reflective Coating Aluminum, Gold, or Protected Silver
Available Sizes Ø10 mm to Ø1000 mm (customizable)




FAQ

Q1: What are the main advantages of SiC mirrors over glass mirrors?
A1: SiC mirrors are much lighter, stiffer, and more thermally stable, which allows for high-precision imaging and minimal deformation in varying thermal environments.



Q2: Can SiC mirrors be used in cryogenic or vacuum systems?
A2: Yes. SiC performs excellently under extreme temperatures and vacuum conditions, making it ideal for space and infrared optical systems.



Q3: What surface coatings are available?
A3: Common coatings include protected aluminum, silver, and gold to optimize reflectivity for specific wavelength ranges.



Q4: Are custom geometries supported?
A4: Yes. Mirrors can be produced as flat, spherical, parabolic, or freeform surfaces depending on optical design requirements.
