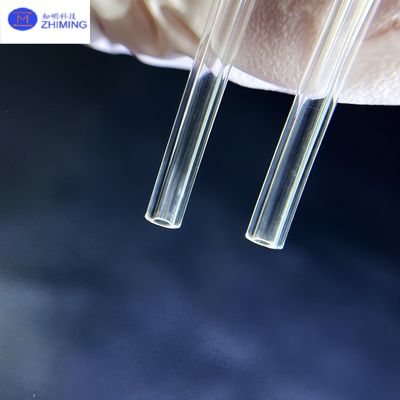

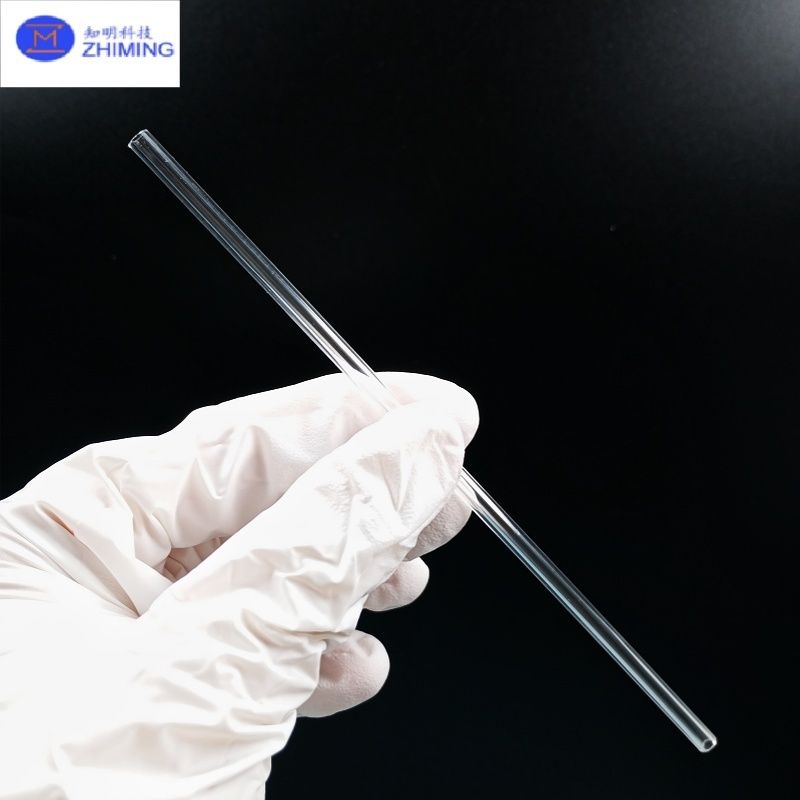

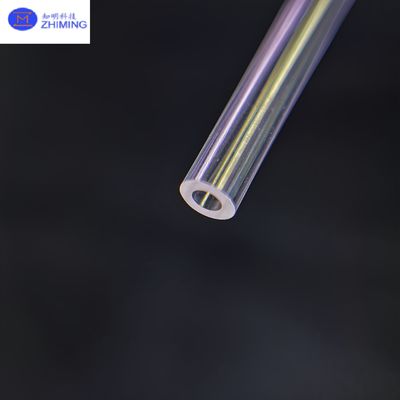

Introduce of Sapphire Capillary Tubes

Sapphire Capillary Tubes are high-performance, miniature hollow cylinders crafted from synthetic single-crystal sapphire, a material renowned for its extraordinary hardness, chemical inertness, and optical transparency. These capillaries combine mechanical durability with superior resistance to thermal shock, making them indispensable in demanding scientific and industrial applications.

One of the most compelling features of sapphire capillaries is their ability to maintain structural precision under intense thermal gradients and corrosive atmospheres. Unlike glass or ceramic counterparts, sapphire tubes do not suffer from rapid degradation, even in environments exceeding 1700°C. This makes them especially valuable in analytical chemistry setups, high-temperature furnaces, and vacuum systems.

Common application areas include chromatographic systems, blood analysis, and protective housings for delicate sensors or fiber optics. The smooth, polished internal surfaces reduce fluid friction and prevent sample contamination, which is critical for achieving reliable results in lab-scale processes.

Furthermore, sapphire capillary tubes are favored in cutting-edge sectors such as aerospace engineering, spectroscopic analysis, and laser-based instrumentation due to their excellent light transmission, thermal conductivity, and non-reactivity. Their biocompatibility also allows use in pharmaceutical delivery systems and medical implants.

Sapphire tubes can be manufactured to custom dimensions, with precision tolerances for both inner diameter (ID) and outer diameter (OD), accommodating a wide range of industrial specifications. Whether for optical, structural, or chemical use, sapphire capillaries offer long-term performance and unmatched reliability under extreme conditions.

The manufacturing of sapphire capillary tubes is a highly specialized process that involves a combination of advanced materials science, precision machining, and optical-grade polishing. These tubes are made from single-crystal aluminum oxide (Al₂O₃), commonly known as sapphire, which offers remarkable hardness, thermal stability, and chemical resistance. Due to its unique crystalline structure and physical properties, sapphire must be carefully processed using techniques tailored for brittle, anisotropic materials.

Principle of Fabrication of Sapphire Capillary Tubes

Sapphire Capillary Tubes are manufactured using two primary crystal growth methods: the Kyropoulos method (KY method) and the Edge-defined Film-fed Growth method (EFG method). Both approaches produce high-purity single-crystal sapphire, but differ in process characteristics and final tube geometry.

1. Kyropoulos (KY) Method

• The Kyropoulos method is widely used to grow bulk cylindrical sapphire boules with excellent optical clarity and low internal stress.

• In this process, high-purity Al₂O₃ powder is melted in a crucible at ~2050°C, and a seed crystal is slowly pulled while rotating under controlled thermal gradients.

• The resulting sapphire crystal is large and uniform, ideal for precision machining.

• Capillary tubes made via the KY method are typically produced by cutting, drilling (ultrasonic or laser), and polishing the rod or slab to form a hollow tube with accurate dimensions and smooth inner surfaces.

• This method is suited for applications requiring optical-grade finish, tight tolerances, and customized geometries.

2. EFG (Edge-defined Film-fed Growth) Method

• The EFG method is used to directly grow sapphire tubes or rods with a pre-defined hollow shape, reducing the need for extensive machining.

• A shaped die is placed at the melt surface, and capillary-shaped sapphire grows vertically as the molten Al₂O₃ is fed through the die by capillary action.

• This method enables the production of longer tubes, often with constant cross-sections and minimal material loss.

• While surface quality may not match KY-grown and polished tubes, EFG-grown Sapphire Capillary Tubes are ideal for industrial, chemical, and high-volume applications, where cost efficiency and throughput are prioritized.

3. Post-processing

• Regardless of growth method, Sapphire Capillary Tubes often undergo precision grinding, bore polishing, and ultrasonic cleaning to meet final dimensional and surface quality requirements.

• KY-method tubes are generally favored for optical, medical, and high-precision fluidic systems, while EFG-method tubes are preferred for technical, structural, or thermal transport uses.

Sapphire Capillary Tube Parameter

Applications of Sapphire Capillary Tubes

Sapphire Capillary Tubes are precision-engineered components designed to operate in environments where traditional glass, plastic, or ceramic capillaries fail. Their exceptional hardness, thermal stability, chemical inertness, and optical transparency make them ideal for high-performance applications across multiple industries. Below is an overview of key application areas:

1. Biomedical & Life Sciences

• Sapphire Capillary Tubes are used in microfluidic platforms, DNA analyzers, and diagnostic testing equipment.
• Their biocompatibility and non-reactive surfaces ensure that biological fluids such as blood, serum, or reagents are transported without contamination.
• The polished inner bore of Sapphire Capillary Tubes allows for precise and consistent flow, which is critical in sensitive assays.

2. Laser and Optical Systems

• Sapphire Capillary Tubes are widely applied in fiber optic protection, laser beam guidance, and spectroscopic analysis.
• With excellent transmission from UV to IR, these tubes maintain optical integrity under high-energy light exposure.
• Their scratch resistance and dimensional accuracy support long-term performance in demanding optical environments.

3. Semiconductor Manufacturing

• In cleanroom and high-vacuum systems, Sapphire Capillary Tubes are used for gas transport, plasma etching, and CVD process lines.
• These tubes remain dimensionally stable under thermal cycling and resist corrosion from aggressive process chemicals.
• Sapphire Capillary Tubes are favored for their non-contaminating material composition, ensuring high wafer yield.

 4. Analytical Chemistry & Instrumentation

• Sapphire Capillary Tubes are utilized in chromatography (HPLC, GC), elemental analysis, and spectrometry.
• Their ultra-smooth inner walls and chemical resistance enable accurate sample flow with zero interaction or retention.
• Suitable for trace analysis and high-purity chemical systems where even minute contamination is unacceptable.

5. Aerospace & Defense

• In aircraft, satellites, and defense systems, Sapphire Capillary Tubes provide robust channels for fluid management, sensor protection, and optical data transmission.
• They are built to withstand extreme vibration, temperature fluctuations, and high-altitude conditions.
• Sapphire Capillary Tubes contribute to the miniaturization and reliability of aerospace components.

Sapphire Capillary Tubes – Frequently Asked Questions (FAQ)

Q1: What are Sapphire Capillary Tubes made of?

A: Sapphire Capillary Tubes are made from synthetic single-crystal aluminum oxide (Al₂O₃), commonly known as sapphire. This material is known for its extreme hardness, chemical inertness, high thermal stability, and broad-spectrum optical transparency.

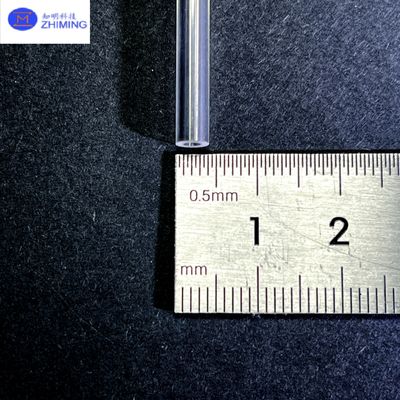

 Q2: What is the typical inner diameter (ID) and outer diameter (OD) range available?

A: Standard Sapphire Capillary Tubes are available in a wide range of sizes. Inner diameters typically range from 0.1 mm to 3.0 mm, while outer diameters can range from 0.5 mm to 10 mm or more. Custom dimensions are also available upon request.

Q3: What are the main advantages of using Sapphire Capillary Tubes over glass or quartz capillaries?

A: Compared to glass or quartz, Sapphire Capillary Tubes offer:

• Higher hardness and scratch resistance
• Superior chemical resistance to acids, bases, and solvents
• Outstanding thermal durability (can operate above 1500°C)
• Excellent optical transparency from UV to IR
• Longer lifespan in harsh environments

Q4: Are Sapphire Capillary Tubes suitable for medical and biological applications?

A: Yes. Sapphire Capillary Tubes are biocompatible and non-reactive, making them ideal for medical devices, diagnostic systems, and biological sample transport. Their smooth internal surfaces reduce residue retention and ensure accurate fluid control.

Q5: Can the tubes be customized in terms of size, length, or bore shape?

A: Absolutely. Sapphire Capillary Tubes can be customized for:

• Inner and outer diameters
• Tube length
• Tapered or flared ends
• Polished or ground surface finish

We support both standard and highly customized production based on your design specifications.
