25-500um Sapphire Fiber Optic Cable Communication Line Alumina Fiber Single Crystal Al2O3
Product Details:
Place of Origin: | China |
Brand Name: | ZMSH |
Model Number: | Sapphire fiber |
Payment & Shipping Terms:
Minimum Order Quantity: | 1m |
---|---|
Packaging Details: | contact us |
Delivery Time: | 2-4weeks |
Detail Information |
|||
Fiber Orientation: | C-axis (or A-axis) | Diameter: | 25-500um |
---|---|---|---|
Tensile Strength: | ~3300 MPa | Transmittance: | >80%(400-3000 Nm) |
Attenuation: | 0.5 - 1.0 DB @ 1550 Nm | Mohs Hardness: | 9 |
Material Type: | Sapphire YAG LuAG MgAl2O4 | Diameter Tolerance: | ≤3% |
Highlight: | Single Crystal Al2O3 Alumina Fiber,Sapphire Fiber Optic Cable,Sapphire Fiber Optic Communication Line |
Product Description
Product description of sapphire fiber
Sapphire is a material resistant to chemical corrosion and scratching, with a melting point of 2,072°C. MMI offers LHPG grade sapphire fibers with diameters ranging from 25 to 500 μm. Additionally, fibers with expanded ends through tapering are available. This is an important feature as the flexibility of the fiber varies inversely with the fourth power of the diameter (for example, a 100 μm fiber has 16 times the flexibility of a 200 μm fiber). Tapered fibers offer users high throughput capabilities without sacrificing flexibility in energy transmission and spectral applications. PTFE sheathing and/or connectors are available for fibers with diameters greater than 100 μm.
Fiber orientation | C-axis |
Melting point | 2,072℃ |
Tensile strength | 2,200 MPa |
Damage threshold | 1.3 kJ/cm2 @ 3 μm |
Numerical aperture | 0.45 (300 μm fiber, 1m) |
Attenuation | 0.5-1.0 dB in near IR (1m, 300 μm) |
Bending loss | 3% for 3cm dia.loop (100 μm fiber) |
Product Features about sapphire fiber
- High-Temperature Resistance: Sapphire fiber can operate at temperatures up to 2000°C without damage or degradation, making it especially suitable for high-temperature environments.
- Chemical Stability: Sapphire material has high resistance to most acids, bases, and other chemicals, ensuring its stability even in challenging chemical environments.
- Mechanical Strength: The mechanical strength of sapphire fiber is high, providing excellent resistance to abrasion and impact.
- Optical Transparency: Due to the purity of its material, sapphire fiber possesses a high degree of transparency in the visible and near-infrared regions.
- Broad Bandwidth: Sapphire fiber is capable of transmitting light signals across a wide range of wavelengths.
- Biocompatibility: Sapphire fiber is harmless to most biological entities, making it particularly useful in medical applications.
- Radiation Resistance: For certain nuclear applications, sapphire fiber demonstrates good radiation resistance.
- Long Lifespan: Thanks to its wear resistance and chemical stability, sapphire fiber has a long service life in many applications.
These characteristics make sapphire fiber an ideal choice for a variety of high-end and challenging applications, including sensing, medical imaging, high-temperature measurements, and nuclear applications.
Sapphire fiber's Application
- High-Temperature Sensing: Due to its high-temperature resistance, sapphire fiber is used as an optical fiber sensor in high-temperature environments, such as in steel production or aerospace engine testing.
- Medical Imaging and Treatment: The optical clarity and biocompatibility of sapphire fiber make it popular for endoscopy, laser treatments, and other medical applications.
- Chemical and Biological Sensing: Due to its chemical stability, sapphire fiber is used in chemical and biological sensors that require corrosion resistance.
- Nuclear Industry Applications: The radiation-resistant properties of sapphire fiber make it useful for monitoring in nuclear power plants and other radioactive environments.
- Optical Communication: In certain specific applications, sapphire fiber is used for data transmission, especially in situations requiring high bandwidth and fast transfer rates.
- Industrial Heating and Furnaces: In high-temperature furnaces and other heating equipment, sapphire fiber is used as a sensor to monitor equipment temperature and conditions.
- Laser Applications: Sapphire fiber can be used for the transmission of high-power lasers, such as in industrial cutting or medical treatments.
- Research and Development: In research laboratories, sapphire fiber is used for various experiments and measurements, including those in extreme environments.
These applications are just the tip of the iceberg for the potential uses of sapphire fiber. As technology advances, its application areas may further expand.

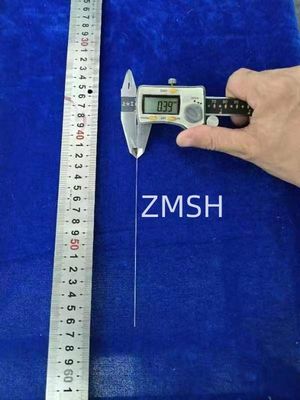

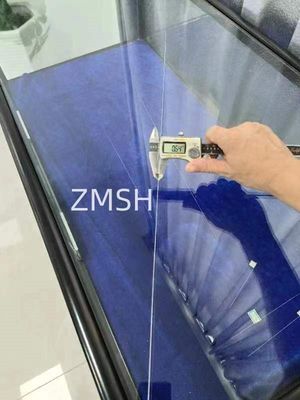

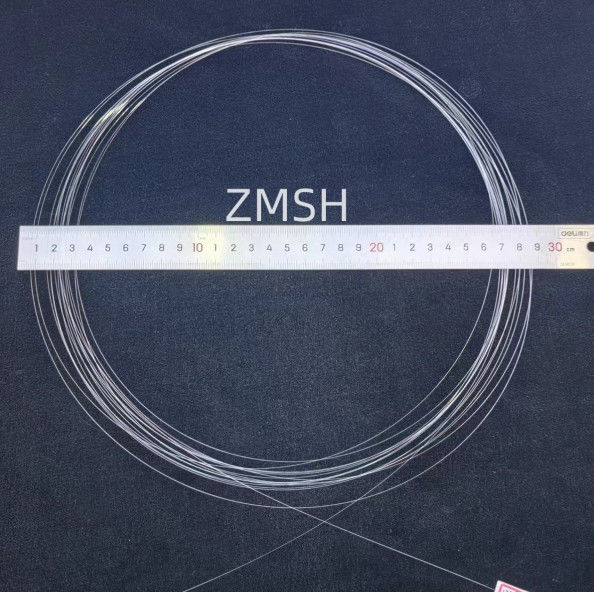

Product Pictures
