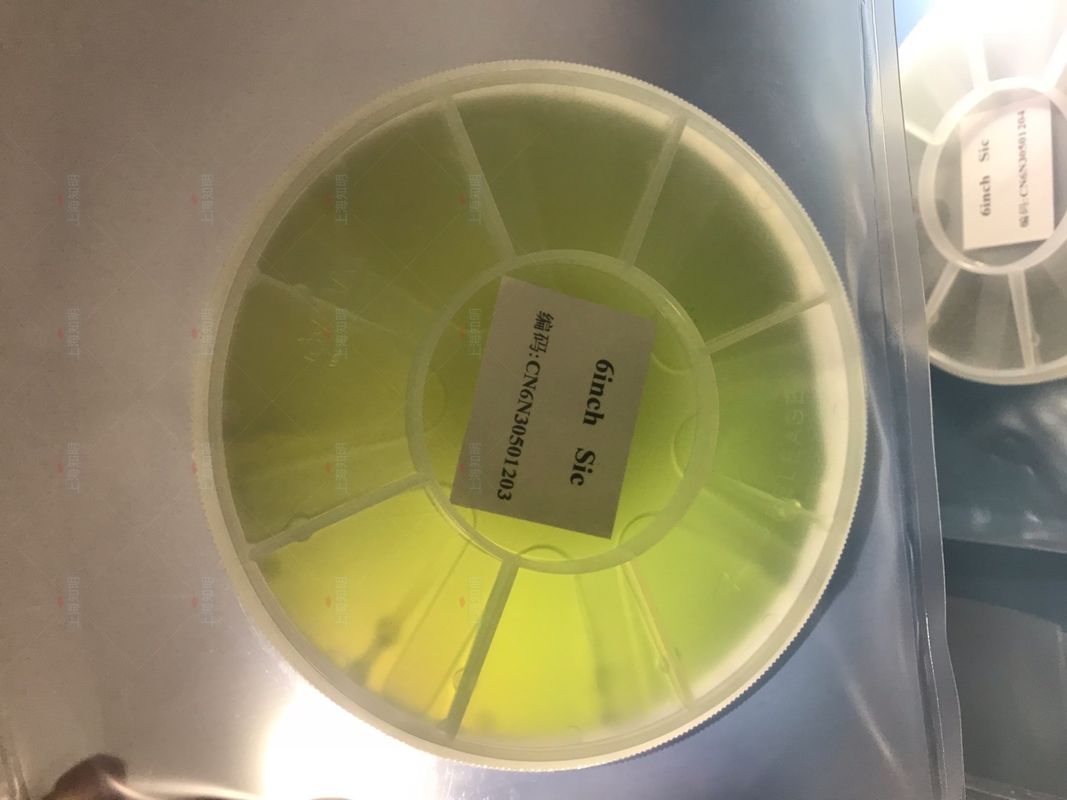

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface

  • High Light

    silicon carbide substrate

    ,

    sic wafer

  • Material
    SiC Single Crystal 4H-N Type
  • Grade
    Dummy /Production Grade
  • Thicnkss
    0.35mm 0.5mm
  • Suraface
    Double Side Polished
  • Application
    Device Maker Polishing Test
  • Diameter
    150±0.5mm
  • Place of Origin
    CHINA
  • Brand Name
    ZMKJ
  • Model Number
    6inch sic wafers 4h-n
  • Minimum Order Quantity
    1pcs
  • Price
    by case
  • Packaging Details
    single wafer package in 100-grade cleaning room
  • Delivery Time
    1-6weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    1-50pcs/month

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface



 2inch/3inch/4inch/6inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers, sic crystal ingots sic semiconductor substrates,Silicon Carbide crystal Wafer/ Customzied as-cut sic wafers

About Silicon Carbide (SiC)Crystal

Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.


1. Description
Property 4H-SiC, Single Crystal 6H-SiC, Single Crystal
Lattice Parameters a=3.076 Å c=10.053 Å a=3.073 Å c=15.117 Å
Stacking Sequence ABCB ABCACB
Mohs Hardness ≈9.2 ≈9.2
Density 3.21 g/cm3 3.21 g/cm3
Therm. Expansion Coefficient 4-5×10-6/K 4-5×10-6/K
Refraction Index @750nm

no = 2.61

ne = 2.66

no = 2.60

ne = 2.65

Dielectric Constant c~9.66 c~9.66
Thermal Conductivity (N-type, 0.02 ohm.cm)

a~4.2 W/cm·K@298K

c~3.7 W/cm·K@298K


Thermal Conductivity (Semi-insulating)

a~4.9 W/cm·K@298K

c~3.9 W/cm·K@298K

a~4.6 W/cm·K@298K

c~3.2 W/cm·K@298K

Band-gap 3.23 eV 3.02 eV
Break-Down Electrical Field 3-5×106V/cm 3-5×106V/cm
Saturation Drift Velocity 2.0×105m/s 2.0×105m/s



4 inch n-doped 4H Silicon Carbide SiC Wafer

 High purity 4inch diameter Silicon Carbide (SiC) Substrate Specification

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface 1

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface 2Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface 3

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface 4

About  SiC Substrates Applications

Customized Sic Wafer SiC Single Crystal 4H-N Type Double Side Polished Surface 5

CATALOGUE   COMMON  SIZE




4H-N Type / High Purity  SiC wafer/ingots
2 inch 4H N-Type SiC wafer/ingots
3 inch 4H N-Type SiC wafer
4 inch 4H N-Type SiC wafer/ingots
6 inch 4H N-Type SiC wafer/ingots



4H Semi-insulating /  High Purity SiC wafer

2 inch 4H Semi-insulating SiC wafer
3 inch 4H Semi-insulating SiC wafer
4 inch 4H Semi-insulating SiC wafer
6 inch 4H Semi-insulating SiC wafer


6H N-Type SiC wafer
2 inch 6H N-Type SiC wafer/ingot


 Customzied size for 2-6inch


About ZMKJ Company



ZMKJ can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .



FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them and

Freight is in accordance with the actual settlement.



Q: How to pay?

A: T/T 100% deposit before delivery.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 1pcs. if 2-5pcs it's better.

(2) For customized commen products, the MOQ is 10pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.



Q: Do you have standard products?

A: Our standard products in stock. as like substrates 4inch 0.35mm.
