Transparent Sapphire Tube AL2O3 High Hardness KY EFG Polished Lon Source Customization

Transparent Sapphire Tube AL2O3 High Hardness KY EFG Polished Lon Source Customization

Description of Sapphire tube:

When it comes to tube and rod materials, transparent or not, sapphire tubes are the go-to materials in so many applications. "Exceptional" applies to sapphire's performance under numerous conditions: mechanical, optical, thermal, and chemical. In these cases, a sapphire tube is without a peer.

The character of Sapphire tube:

• Sapphire tubes are the best high-pressure containers and transport plumbing for many high-pressure systems. A sapphire tube can handle extreme pressures while allowing for safe observation and spectral analysis of fluids and gasses.
• Sapphire tubes can be used in hostile environments to house sensitive sensors, protecting the sensors against pressure and mechanical abuse.
• Sapphire rods are superior for rod bearing and standoff applications that involve high abrasion and wear while maintaining dimensional stability.
• Sapphire transmits light from below 190nm to over 5 microns.
• Sapphire is highly robust at extreme temperatures and is readily available in tube form.
• Sapphire tubes are incredibly chemical and plasma-resistant.

The form of Sapphire tube:

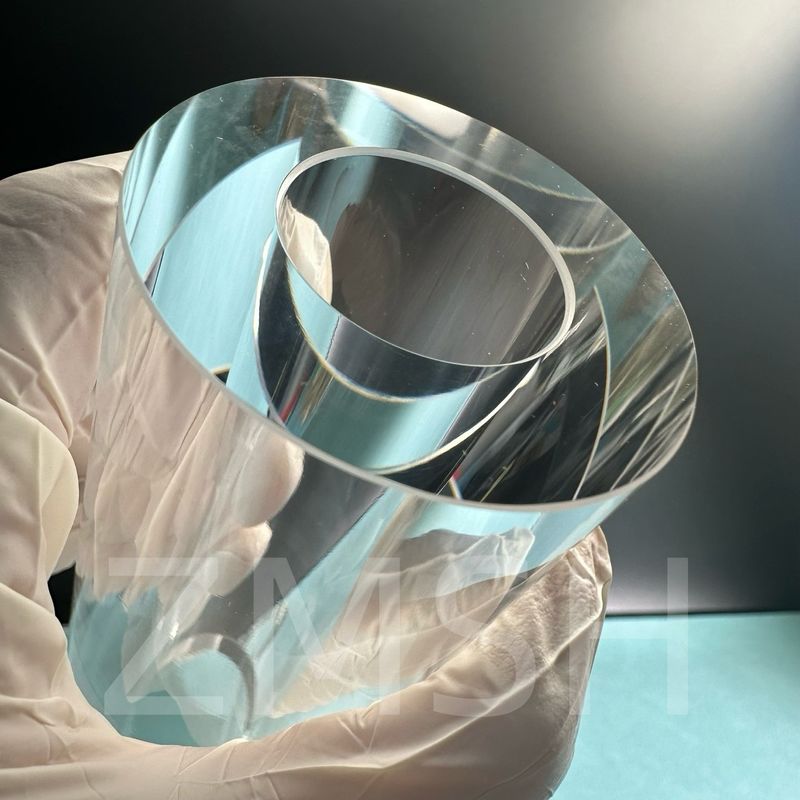

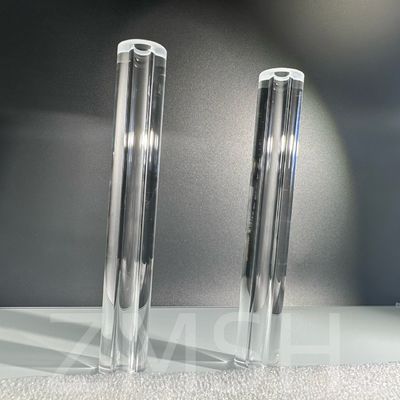

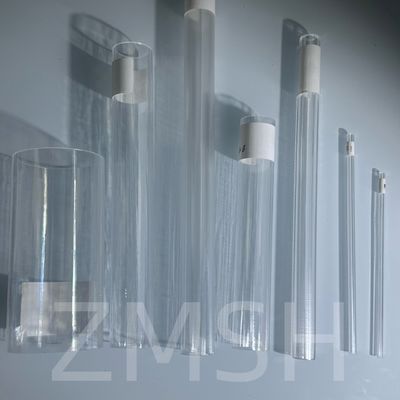

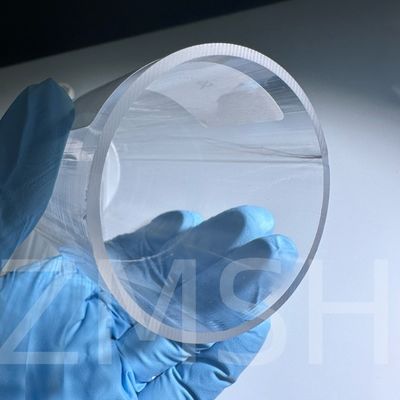

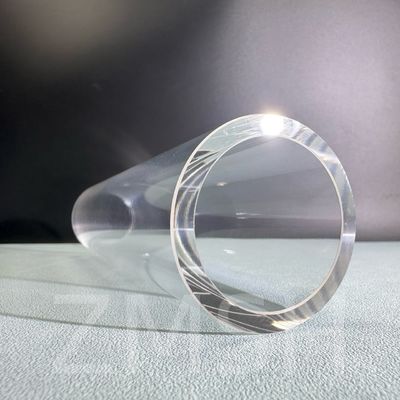

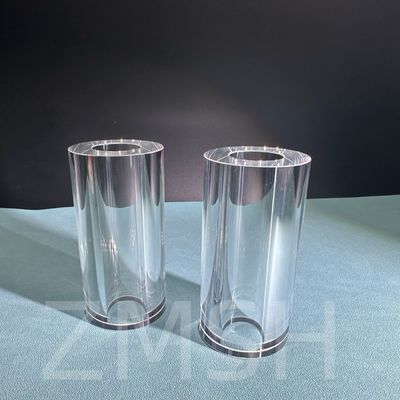

The physical photo of the Sapphire tube:

Application of Sapphire tube:

• Chemical: sapphire tube is not subject to the conventional acid and alkali media corrosion characteristics, but also has a strong pressure resistance, used in the chemical industry for reaction kettle or reaction observation tube, to solve the chemical industry has long been troubled by the material selection problem;
• Blasting: sapphire tube is used in the field of microscopic observation of blasting, which can realize visual process tracking and analysis;
• Petroleum: Sapphire tubes are used for core sampling and material analysis, enabling wide-field, real-time observation.
• Semiconductor Processing applications:
• (HPD CVD, PECVD, Dry Etch, Wet Etch)
• Plasma containment tubes
• Plasma applicator tube
• Process gas injector nozzles
• Thermocouple protection sheath (Thermowell)
• Water treatment/cleaning
• Endpoint detector
• Excimer Corona Tubes
• Test and Analytical instruments:
• Nuclear Magnetic Resonance spectroscopy (NMR)
• Inductively coupled plasma mass spectrometry (ICP-MS)
• Thermo-optic temperature measurement
• Inline petroleum processing analysis
• Mass spectroscopy
• Biological and chemical sample analysis
• Plugged tubes
• Test tubes
• Lamps and Lamp Envelopes applications:
• Electronic Infra-Red countermeasures
• Ultraviolet sterilization
• Flashlamps
• High-intensity lamps

Application picture of Sapphire tube:

Packing and Shipping:

FAQ:

1. Q:What is the pressure in the sapphire tube?
    A:Sapphire capillary tube with inner diameter 0.6mm and wall thickness 0.2mm can withstand inside pressure exceeding 100 MPa.

2. Q:What is sapphire on the Mohs scale?
    A: Sapphire ranks 9 on the Mohs hardness scale. Corundum is stable under normal wearing conditions, which means it's resistant to the effects of heat, light, and common chemicals.
