OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Certification: | ROHS |
| Model Number: | Sapphire Tube |
Payment & Shipping Terms:
| Delivery Time: | 2-4 weeks |
|---|---|
| Payment Terms: | 100%T/T |
|
Detail Information |
|||
| Color: | Transparent | Growth Technology: | EFG/KY |
|---|---|---|---|
| Purity: | 99.995% | Size: | Customized |
| Anti-corrosion: | High | Length: | 1-1500mm |
| Heat Resistance: | High | Surface Quality: | High |
| Highlight: | Wear resistance Sapphire tube,Customizable Sapphire tube,High temperature Sapphire tube |
||
Product Description
OD5.1 ID2.0 L108.00±0.25mm Sapphire tube High temperature and wear resistance Customizable
Description of Sapphire tube:
Sapphire tube has exceptional hardness, making it highly resistant to wear and tear.
The hardness of the sapphire tube is second only to diamond, making it one of the hardest materials in the world. This property makes it an excellent choice for applications where high wear resistance is required. Sapphire tube is an ideal choice for industries such as aerospace, defense, and medical equipment.
The size of the sapphire tube is customized to meet the customer's specific needs. This customization ensures that the product is suitable for various applications. The size can range from a few centimeters to several meters, depending on the customer's requirements. This customized size makes it easier to use the product in various applications.
The Character of Sapphire Tube:
1. High Strength, High Rigidity, High Anti-Abrasion, High Anti-Heat, High AntiCorrosion Characteristics, and High Anti-Plasma Characteristics.
2. Stable Dielectric Constant, Very Low Dielectric Loss, Good Electrical Insulation.
3. Excellent Light Transmission.
4. Good Thermal Conductivity and High Heat Resistance.
Form of Sapphire tube:
| Compound Formula | Al2O3 |
| Molecular Weight | 101.96 |
| Appearance | Sapphire Tube |
| Melting Point | 2050 °C (3720 °F) |
| Boiling Point | 2,977° C (5,391° F) |
| Density | 4.0 g/cm3 |
| Morphology | Trigonal (hex), R3c |
| Solubility in H2O | 98 x 10-6 g/100g |
| Refractive Index | 1.8 |
| Electrical Resistivity | 17 10x Ω-m |
| Poisson's Ratio | 0.28 |
| Specific Heat | 760 J Kg-1 K-1 (293K) |
| Tensile Strength | 1390 MPa (Ultimate) |
| Thermal Conductivity | 30 W/m-K |
| Thermal Expansion | 5.3 µm/m-K |
| Young's Modulus | 450 GPa |
| Exact Mass | 101.948 g/mol |
| Monoisotopic Mass | 101.94782 Da |

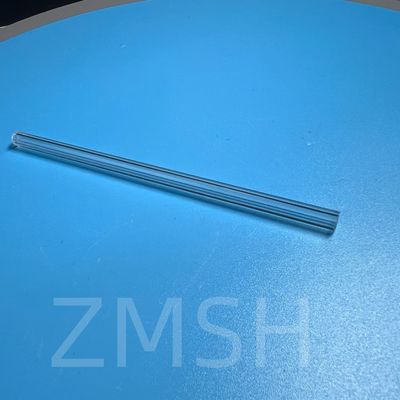

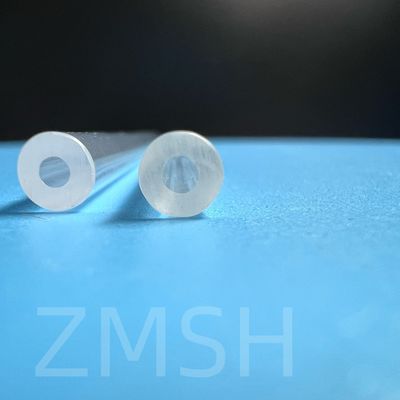

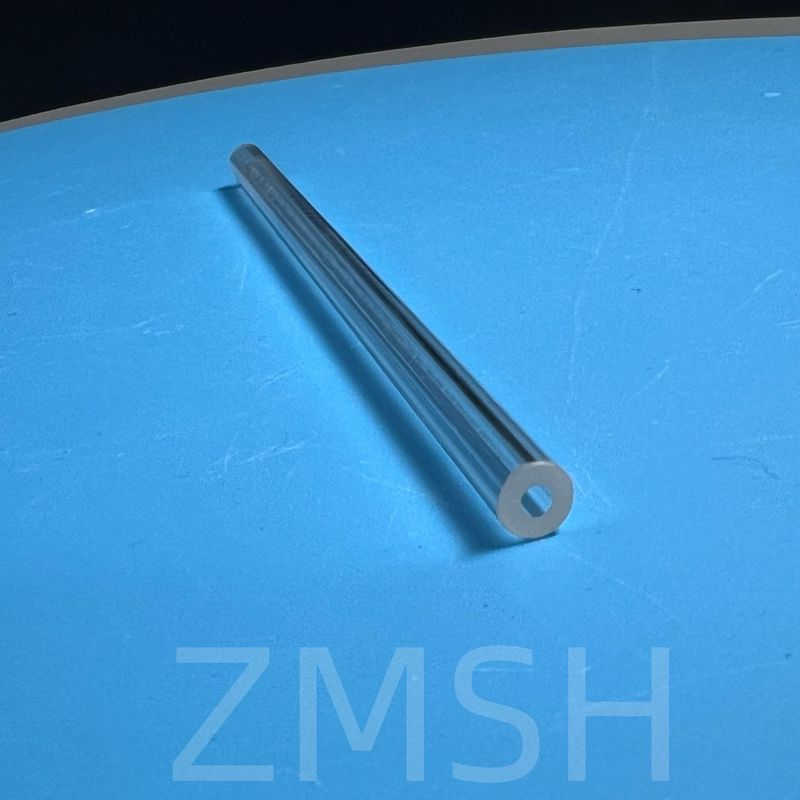

Physical Photo of Sapphire tube:
Application of Sapphire tube:
Semiconductor Processing applications:
(HPD CVD, PECVD, Dry Etch, Wet Etch)
- Plasma containment tubes
- Plasma applicator tube
- Process gas injector nozzles
- Thermocouple protection sheath (Thermowell)
- Water treatment/cleaning
- Endpoint detector
- Excimer Corona Tubes
Test and Analytical instruments:
- Nuclear Magnetic Resonance spectroscopy (NMR)
- Inductively coupled plasma mass spectrometry (ICP-MS)
- Thermo-optic temperature measurement
- Inline petroleum processing analysis
- Mass spectroscopy
- Biological and chemical sample analysis
- Plugged tubes
- Test tubes
Lamps and Lamp Envelopes applications:
- Electronic Infra-Red countermeasures
- Ultraviolet sterilization
- Flashlamps
- High-intensity lamps
Application Picture of Sapphire tube:
