Sapphire single crystal tube Al2O3 rods ribbons for high pressure applications
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Model Number: | Sapphire Tube |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 2 weeks |
| Payment Terms: | 100%T/T |
| Supply Ability: | 100000 |
|
Detail Information |
|||
| Products Name: | Sapphire Tube/ Quartz Tube/ Al2O3 Single Crystal | Hardness: | 9 |
|---|---|---|---|
| Heat Resistance: | High | Size: | Customized |
| Light Transmittance: | High | Growth Technology: | EFG/KY |
| Thickness: | Customized | Anti-corrosion: | High |
Product Description
Product Description:
Our Sapphire tubes provide a number of advantages for semiconductor processing applications, as compared to quartz, alumina, and silicon carbide. It is highly resistant to radiation, corrosion, and thermal shock. It also has a high transmission rate for visible, infrared or ultraviolet light, often with high intensity at high temperatures and pressures.
In addition, Sapphire tubes are used in various analytical instruments. This offers increased accuracy and reliability of processes due to their high mechanical strength, high thermal conductivity, and chemically inert properties. Additionally, because of the advanced engineering techniques used in our product, they offer longer lifetime and higher performance when compared to other materials.

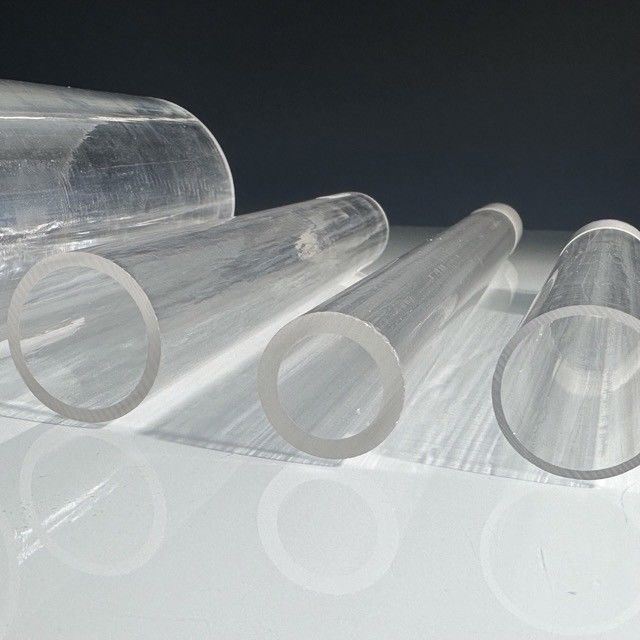

SAPPHIRE TUBES
- Typical dimensions ranging from 1” to 1.5” (25 to 38 mm OD), with diameters to 3” (76 mm) and lengths to 30” (750 mm
- Product geometry could be considered based on the customer drawing.
- Outer diameters could be precisely ground or left with “as grown” finish
- Inner diameter is left with “as grown” finish – which proves to be optimal in contact with plasma
Features:
The window is made with excellent materials which have a great performance in terms of high strength, hardness, wear resistance, high temperature resistance, and corrosion resistance. Moreover, these materials have a spectrum ranging from 220nm to 5500nm, which covers nearly the entire ultraviolet light to the width of infrared wavelengt`h.
Technical Parameters:
| Parameter | Value |
|---|---|
| Growth technology | EFG/KY |
| Heat Resistance | High |
| Size | Customized |
| Thickness | Customized |
| Material | Sapphire Crystal glass/Al2O3 99.999% |
| Diameter | Customized |
| Light Transmittance | High |
| Tolerance | High |
| Length | 1-800mm |
| Anti-scratch | High |
Applications:
Semiconductor Processing applications are highly specialized and include HPD CVD, PECVD, Dry Etch, Wet Etch, Plasma containment tubes, Plasma applicator tube, Process gas injector nozzles, Thermocouple protection sheath (Thermowell), Water treatment/cleaning, Endpoint detector, and Excimer Corona Tubes.
Test and Analytical instruments also play a key role in semiconductor processing and range from Nuclear Magnetic Resonance spectroscopy (NMR) and Inductively coupled plasma mass spectrometry (ICP-MS) to Thermo-optic temperature measurement, Inline petroleum processing analysis, Mass spectroscopy, Biological and chemical sample analysis, Plugged tubes, and Test tubes.
Lamps and Lamp Envelopes applications are also specialized and involve Electronic Infra-Red countermeasures, Ultraviolet sterilization, Flashlamps, and High-intensity lamps.
Customization:
Brand Name: ZMSH
Model Number: Sapphire Tube
Place of Origin: China
Minimum Order Quantity: 10
Delivery Time: 2 weeks
Payment Terms: 100%T/T
Supply Ability: 100000
Color: Transparent
Anti-scratch: High
Anti-corrosion: High
Surface Quality: High
Material: Sapphire
Focus on: Sapphire rod, Sapphire tube, Al2O3 99.999% tube
Support and Services:
- 24-hour customer service helpline
- Online support for product installation and troubleshooting
- Regular software updates and patches
- On-site repair and maintenance services
- Customer training and education on product usage
Packing and Shipping:
Sapphire Tube products are packed and shipped with the utmost care and security.
- We package each product using high-quality materials.
- We use bubble wrap and other protective materials to ensure your product arrives safely.
- We ship our products via a reliable courier service with tracking information.
FAQ:
Q1: What is the brand name of Sapphire Tube?
A1: The brand name of Sapphire Tube is ZMSH.
Q2: What is the Model Number of Sapphire Tube?
A2: The Model Number of Sapphire Tube is Sapphire Tube.
Q3: Where is the origin of Sapphire Tube?
A3: The origin of Sapphire Tube is China.
Q4: What is the Minimum Order Quantity of Sapphire Tube?
A4: The Minimum Order Quantity of Sapphire Tube is 10.
Q5: How long does it take to deliver Sapphire Tube?
A5: It takes 2 weeks to deliver Sapphire Tube.
