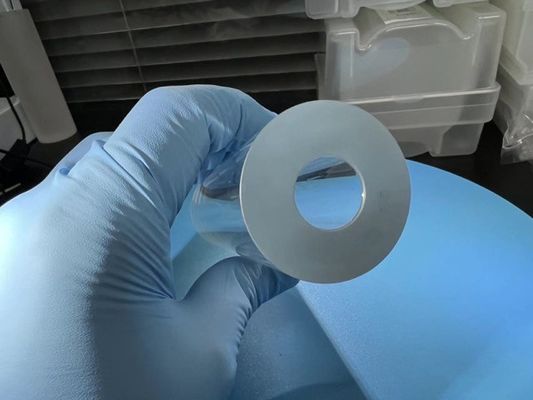

High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
Product Details:
Place of Origin: | China |
Brand Name: | ZMSH |
Certification: | ROHS |
Model Number: | Sapphire tube |
Payment & Shipping Terms:
Minimum Order Quantity: | 2pcs |
---|---|
Price: | by case |
Packaging Details: | plastic bag |
Delivery Time: | 2-4weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000pcs per month |
Detail Information |
|||
Material: | Sapphire Crystal | Surface: | Optical Polished Rough Blank |
---|---|---|---|
Hardness: | Mohs 9.0 | Technology: | KY |
Working Temperature: | 1950°C | Purity: | 99.995% |
Length: | 1-300mm | Diemeter: | 50.4mm 2inch |
Highlight: | High Temperature Resistance Sapphire Tube,50.4mm Sapphire Rods,Optical Polished Sapphire Rods |
Product Description
Pressure Resistant Sapphire Glass Tube Al2O3 Sapphire Glass Tube Single Crystal Sapphire Glass Tube
Semiconductor Processing applications:
(HPD CVD, PECVD, Dry Etch, Wet Etch)
-
Plasma containment tubes
-
Plasma applicator tube
-
Process gas injector nozzles
-
Thermocouple protection sheath (Thermowell)
-
Water treatment/cleaning
-
Endpoint detector
-
Excimer Corona Tubes
Lamps and Lamp Envelopes applications:
-
Electronic Infra-Red countermeasures
-
Ultraviolet sterilization
-
Flashlamps
-
High-intensity lamps
Sapphire Tube Benefits
Sapphire tubes made of synthetic sapphire possess unique combination of excellent optical, physical and chemical properties. | ||||
One of the hardest minerials and ranks a 9 on the Mohs scale, sapphire is virtually scratch resistance. Sapphire has high melting temperature of 2030 °C. Its excellent thermal conductivity and heat resistance make it ideal for high temperature applications. Its exceptional chemical stability and corrosion resistance can withstands harsh environments such as fluorine plasma, acid and alkaline. In addition, sapphire offers excellent transmission bandwidths between the UV and IR at 0.15-5.5µm. | ||||
The edge-defined-film fed method ( EFG method ) provides the ability to produce various shapes of sapphire tubes with minimal or no grinding. | ||||
All this unique properties offer a cost-effective solution for the applications where hardness, scratch proof, corrosion resistance, heat resistant as well as optical properties of sapphire tubes are required. |
SAPPHIRE TUBE DETAILS:
Recommend Products:
2inch GSGG 2inch YAG 2inch MgO
FAQ
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 3pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
