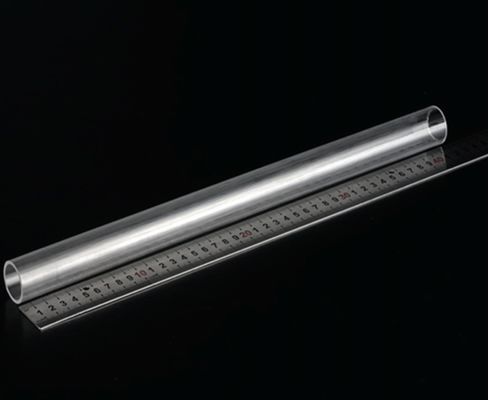

Optical Polished Sapphire Glass Tube Cylinder Lens Tube / Rod High Temperature
Product Details:
| Place of Origin: | china |
| Brand Name: | zmkj |
| Model Number: | sapphire tube |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | by case |
| Packaging Details: | plastic bag |
| Delivery Time: | 1-2weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Crystal | Surface: | Polished Or Rough |
|---|---|---|---|
| Orientation: | C-AXIS/A-AXIS/M-AXIS/M-AXIS | Application: | Tube/pipe |
| Hardness: | 9.0 | ||
| High Light: | Optical Polished Sapphire Glass Tube,High Temperature Sapphire Glass Len Rod,Cylinder Sapphire Glass Tube |
||
Product Description
Advanced Custom Sapphire Shaped Glass Tube For Medical Laboratory Utensils/High Temperture Transparent Sapphire Glass Crystal Test Quartz Tube with Flange/Optical Polished Sapphire Glass Tube/High quality Sapphire tube & Sapphire Ring of various specification
Sapphire Tube (Optical Grade) with Many Size Used to Protective Tube,Insulating Tube, and Flow Control
A sapphire tube can handle extreme pressures while allowing for safe observation and spectral analysis of fluids and gasses.
| Product name | Sapphire tube |
| Diameter | 0.5-500mmd |
| Tolerance | +0/-0.05mm |
| Thickness | Customization |
| Length | Customization |
| Clear Aperture | >90% |
| Surface quality |
60/40
|
| Application | Research and Semiconductor |
| Usage | UV and IR lamp |
| Packing | Carton or as per customer's requirements |
Special specifications can also be produced according to drawing and sample.
Feature
- High hardness - 9H
- Scratch resistance
- Abrasion resistance
- High mechanical strength
- High temperature resistance
- Good thermal stability
- High optical production rate
Sapphire, which is the second hardest crystal, features a variety of attributes that are ideal for use in harsh environments, including extreme surface hardness, high thermal conductivity, high dielectric constant, as well as a strong resistance to a variety of chemical acids or alkalis. Compared to many standard optical materials, Sapphire Optical Components offer thinner designs, along with transmission ranges from 0.15 – 5.5μm for optimum performance in the ultraviolet to the MWIR.
Sapphire Optical Components are used in a variety of applications requiring high durability or broad spectral ranges, including semiconductor, FTIR spectroscopy, or FLIR imaging.
|
GENERAL
|
||
|
Chemical Formula
|
Al2O3
|
|
|
Crystal Stucture
|
Hexagonal System (hk o 1)
|
|
|
Unit Cell Dimension
|
a=4.758 Å,Å c=12.991 Å, c:a=2.730
|
|
|
PHYSICAL
|
||
|
|
Metric
|
English (Imperial)
|
|
Density
|
3.98 g/cc
|
0.144 lb/in3
|
|
Hardness
|
1525 - 2000 Knoop, 9 mhos
|
3700° F
|
|
Melting Point
|
2310 K (2040° C)
|
|
|
STRUCTURAL
|
||
|
Tensile Strength
|
275 MPa to 400 MPa
|
40,000 to 58,000 psi
|
|
Tensile Strength at 20° C
|
|
58,000 psi (design min.)
|
|
Tensile Strength at 500° C
|
|
40,000 psi (design min.)
|
|
Tensile Strength at 1000° C
|
355 MPa
|
52,000 psi (design min.)
|
|
Flexural Stength
|
480 MPa to 895 MPa
|
70,000 to 130,000 psi
|
|
Compression Strength
|
2.0 GPa (ultimate)
|
300,000 psi (ultimate)
|
Sapphire parts products in detail
Recommend Products
FAQ
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 3pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
