Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished

Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished

  • High Light

    Polished Sapphire Glass

    ,

    Monocrystalline Sapphire Tube

    ,

    Transparent Sapphire Crystal Glass

  • Material
    Sapphire Crystal
  • Surface
    Transparent
  • Orientation
    C-AXIS
  • Application
    Tube/pipe
  • Hardness
    9.0
  • Name
    Sapphire Pipe
  • Length
    ~350mm
  • Diameter
    ~300mm
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Certification
    rohs
  • Model Number
    sapphire tube
  • Minimum Order Quantity
    2pcs
  • Price
    by case
  • Packaging Details
    plastic bag
  • Delivery Time
    2-4weeks
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    3000pcs per month

Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished


sapphire bearing parts with hole, Al2O3 sapphire single crystal glass tube ,sapphire optical glass ingots, monocrystalline Al2O3 Sapphire Pipe Sapphire glass Tube transparent polished

What is sapphire?

Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, and single crystal Al2O3,have 9.0 hardness.
Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.
The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,
sapphire is the best choice in comparison with other synthetic single-crystals.

Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished 0


Product name industrial sapphire wafer
sapphire optical lens chemical formula AL2O3
Crystal structure Hexagonal
Hardness Mohs 9H
Compressvise strength Gpa 2.0
Density(20) 3.98g/cm
Fusion point 2040
Boiling point 2980
Coefficient of Thermal Expansion α=5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Optical transmission range 0.17-5.5μm
Transmission(0.3~5um) 85-88%
Refractive index no=1.768nd
ne=1.76nd
dn/dt 13×10-6/K(@633nm)
Permittivity 11.5(//c), 9.3(⊥c)



How about advantage of sapphire glass?

1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance
-------------------------------------------------------------------------------------------------------------------

What applications arethese products for ?
LED OPtical element applications mobile camera cover glass
mechanical parts watch and other consumer electronics military applications
Fingerprint recognition allication SOS substrates Artificial jewelry

Sapphire  parts products in detail

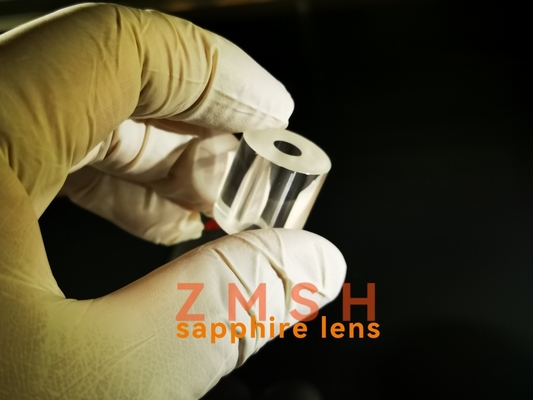

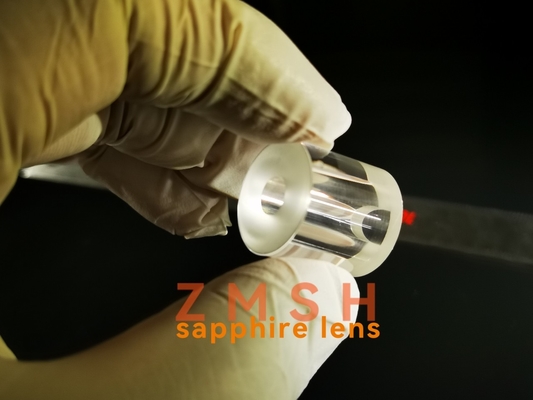

 Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished 1

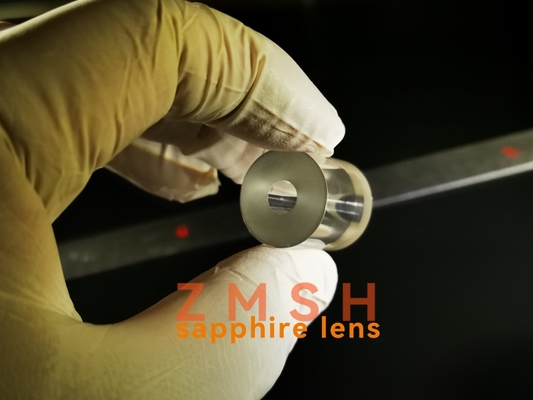

Monocrystalline Al2O3 Sapphire Glass Tube Transparent Polished 2

4. We also can supply professional customized service in time and provide
cooperation and support of new product development and technology appliance
in other semiconductor crystal material products


FAQ

Q:What is your minimum order requirement?
A:MOQ:3 piece


Q:How long will it take to execute my order and delivery it ?
A:confirm the order 1days After confirming the payment and delivery in 5days if on stocks.


Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.


Q:How to pay?
A:T/T, Paypal, West Union, bank transfer.


Q:HOW about the freight ?
A:we can help you pay for the fee if you don’t have account,
if the order is over 10000usd, we can delivery by CIF.
Q:If you have any other questions,please do not hesitate to contact me.
A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com

we are at your side any time~~
