Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt

Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt

  • High Light

    sapphire lens

    ,

    sapphire parts

  • Material
    Sapphire Single Crystal
  • Size
    38x40x0.3mmt
  • Edge
    Single Side
  • Orientation
    Cut Orientation A-axis
  • Hardeness
    9.0
  • Applications
    Blade
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Model Number
    38x4.5x0.3mmt
  • Minimum Order Quantity
    50pcs
  • Price
    by case
  • Packaging Details
    packing in film
  • Delivery Time
    2-4weeks
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    100000pcs

Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt



sapphire glass blade for razor,Al2O3 single crystal glass wafer,artificial sapphire injector ,sapphre lenssapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens



The Outstanding Advantage For Sapphire

1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance


sapphire physical property

Product Name: Aluminum oxide (Al2O3) crystal substrate Sapphire crystal glass
Product Description: Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal properties, excellent electrical characteristics and dielectric properties, and anti-chemicalcorrosion, it is high temperature, thermal conductivity, high hardness, infrared transparent, chemically stable good. Widely used in high-temperature infrared window materials and III-V nitride epitaxial film substrate and a variety of materials to meet the growing blue, purple, white light-emitting diode (LED) and blue laser (LD) needs, Branch Crystal company specializing in the production of high quality polished sapphire crystal and epitaxial substrates will provide you with a lot of high quality and low price monocrystalline substrate.
Technical parameters:

Crystal structure Hexagonal a = 4.758 Å c = 12.992 Å
Crystal orientation

(11-20) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å

(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å
Crystal purity > 99.99%
Mp 2040 o C
Density 3.98 g / cm 3
Hardness 9 (mohs)
Thermal expansion 7.5 (x10 -6 / o C)
Heat capacity 0.10 (cal / o C)
Thermal conductivity 46.06 @ 0 o C 25.12 @ 100 o C, 12.56 @ 400 o C (W / (mK))
Permittivity ~ 9.4 @ 300K at A axis ~ 11.58 @ 300K at C axis
Loss tangent <2x10 -5 at A axis, <5 x10 -5 at C axis


---------------------------------------------------------------------------------------------------------------------------------

Applications of sapphire product in Medical
· Sapphire is used in surgical systems for laser transmission and in contact with bodily fluids.

Endoscope lenses - sapphire is often used in endoscope lenses due to its durability in contact with tissues and in sterilisation environments such as autoclaving
· Sapphire knives - with a sapphire knife, thinner sections are possible. The near perfect cutting edge of this knife / blade gives distortion-free sections down to 10 microns thick.

· Surgical tips - sapphire is used in contact tips for various surgical laser applications
·

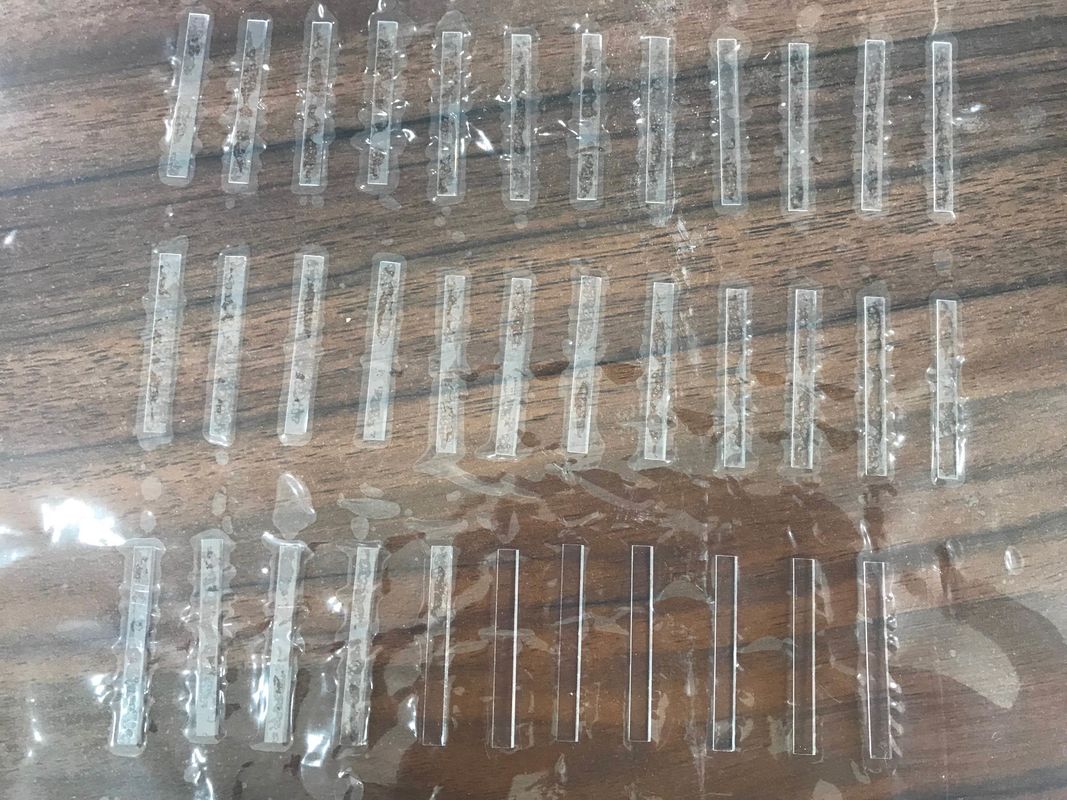

3.0 sample in detail

Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt 0

Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt 1



FAQ



Q:Why to choose ZMKJ?

A. ZMKJ has a factory manufactuer offers custom varied high quality optical and semi wafers products.

B. A compelet set of trade serves timely.

C. Stable delivery,General produce time:7-20 days.

Q:How to pay?

100% in advance before delivery by TT,paypal, Alipay. delivery company choose DHL,Fedex ,SF,EMS.

Al2O3 Single Crystal Custom Sapphire Glass Razor Medical Blade 38x4.5x0.3mmt 2
