Product Description

2inch silicon wafers p-type n-type CZ growth method BOW ≤30 for LED lighting

Silicon wafers' abstract

Silicon wafers are the foundational material used in the semiconductor industry for the fabrication of integrated circuits and various microdevices. Made from highly purified silicon, these wafers serve as the substrates onto which circuits are imprinted using sophisticated photolithographic techniques.

Silicon wafers'  properties

Silicon wafers possess several key properties that make them indispensable in the semiconductor industry. These properties are crucial for the performance and functionality of the devices that are fabricated on them. Here are some of the primary properties of silicon wafers:

1. Electrical Properties:

   • Semiconductor Behavior: Silicon is a semiconductor, meaning it can conduct electricity under certain conditions but not others, which is critical for creating electronic switches.
   • Bandgap: Silicon has a bandgap of about 1.12 eV at room temperature, providing an optimal balance between electrical conductivity and insulating properties, suitable for various electronic applications.

2. Mechanical Properties:

   • Hardness and Strength: Silicon is a relatively hard and strong material, making it durable during the manufacturing process.
   • Brittleness: Despite its strength, silicon is brittle, which requires careful handling to prevent breaking or chipping during wafer processing.

3. Thermal Properties:

   • Thermal Conductivity: Silicon has good thermal conductivity (about 150 W/mK at room temperature), which is essential for dissipating heat generated by electronic devices.
   • Thermal Expansion Coefficient: Silicon has a relatively low thermal expansion coefficient, which helps maintain structural integrity under varying temperatures during device operation and processing.

4. Chemical Properties:

   • Oxidation: Silicon readily forms a silicon dioxide (SiO2) layer when exposed to oxygen, especially at high temperatures. This natural oxide layer is useful in various manufacturing steps, such as creating insulation layers and gate oxides in MOSFETs.
   • Chemical Stability: Silicon is chemically stable under most conditions, which is crucial for maintaining the purity and performance of the electronic devices.

5. Optical Properties:

   • Transparency to Infrared Light: Silicon is transparent to infrared light, which is utilized in infrared detectors and other photonic applications.

​

These properties are leveraged during the semiconductor device fabrication process, where precise control over the electrical, mechanical, and chemical characteristics of the silicon wafers is required to produce reliable and high-performance electronic components. Silicon's adaptability to doping (the addition of impurities to modify its electrical properties) further enhances its utility in creating diverse electronic and photonic devices.

Silicon wafers'  applications

Silicon wafers are fundamental to numerous applications across various fields, primarily due to their versatile properties as a semiconductor material. Here are some of the primary applications:

1. Integrated Circuits (ICs): Silicon wafers are the primary substrate used for fabricating integrated circuits, including microprocessors, memory chips (like DRAM and flash), and an array of digital and analog circuits that form the backbone of all modern electronics.

2. Solar Cells: Silicon is a major component in the photovoltaic industry for the production of solar cells. The silicon in solar cells is typically processed into multicrystalline or monocrystalline forms, which are then used to convert solar energy into electrical energy.

3. Microelectromechanical Systems (MEMS): MEMS devices integrate mechanical and electrical components at a microscopic scale on silicon wafers. These devices include sensors (such as accelerometers and gyroscopes), actuators, and microstructures used in automotive systems, smartphones, medical devices, and various consumer electronics.

4. Optoelectronics: Silicon wafers are used in the production of optoelectronic devices such as light-emitting diodes (LEDs) and optical sensors. While silicon itself is not typically used for emitting light, it is crucial in the structure of devices that manipulate or detect light.

5. Power Electronics: Silicon wafers are utilized in manufacturing power electronic devices, which control and convert electric power efficiently in electric vehicles, renewable energy systems, and power grids. These devices include power diodes, transistors, and thyristors.

6. Semiconductor Lasers: Although less common than other materials for the active layers, silicon is used in the fabrication of parts of semiconductor lasers, especially in integrated photonic devices where light is manipulated on a silicon chip.

7. Quantum Computing: Emerging applications in quantum computing use silicon wafers to create quantum dots or other structures that can host qubits, the fundamental units of quantum information.

The widespread use of silicon wafers across these diverse applications stems from their electrical versatility, mechanical stability, thermal conductivity, and compatibility with existing manufacturing technologies. As the semiconductor industry continues to evolve, the role of silicon wafers remains central, continually adapting to new technologies and applications.

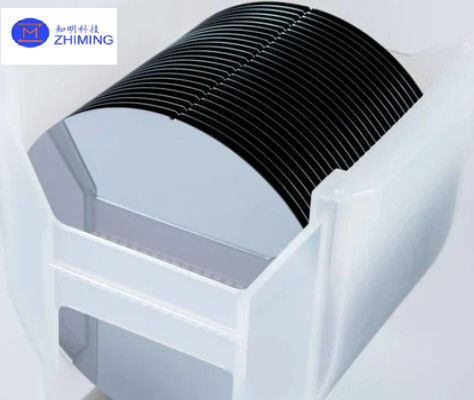

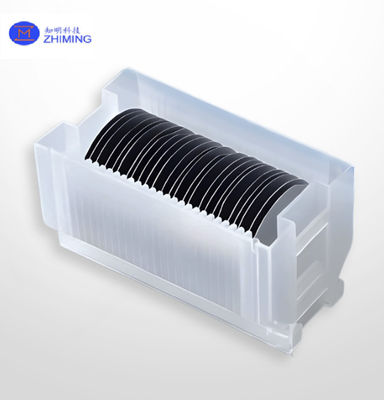

Silicon wafers'  showcase

Q&A

What is  silicon wafer used for?

A silicon wafer is used primarily as a substrate for fabricating integrated circuits (ICs) and microelectronic devices. Here are the key uses of silicon wafers:

1. Integrated Circuits: Silicon wafers are the foundational material upon which most semiconductor devices or chips are built. These include microprocessors, memory devices, and a vast array of other digital and analog circuits that are integral to computers, mobile phones, and many other types of electronic gadgets.

2. Solar Cells: They are extensively used in the solar energy sector to manufacture photovoltaic cells, which convert sunlight into electricity. Silicon's ability to absorb solar energy makes it ideal for this application.

3. Microelectromechanical Systems (MEMS): Silicon wafers are used to create MEMS devices, which integrate tiny mechanical and electronic components. These are used in various applications such as sensors, actuators, and systems-on-a-chip.

4. Optoelectronics: In the field of optoelectronics, silicon wafers are used to produce components that interact with light, such as photodetectors, LEDs, and elements of optical communications systems.

5. Power Devices: Silicon is used in power electronic devices that manage and convert electrical power efficiently in systems ranging from electric vehicles to solar power inverters.

The versatility, electrical properties, and mechanical stability of silicon wafers make them essential in the realms of computing, telecommunications, energy, and many areas of consumer electronics.
