Product Description

Customizable sapphire JGSI JGS2 quartz optical components Strong thermal stability

sapphire JGSI JGS2 quartz optical components' abstract

Sapphire and JGSI JGS2 quartz composite optical components offer a unique blend of high transparency, mechanical strength, and thermal stability, making them valuable in various optical systems. This study investigates the optical characteristics and applications of these composite components. Experimental results demonstrate excellent transmission properties across a broad spectral range, with sapphire contributing exceptional hardness and JGSI JGS2 quartz providing superior optical clarity. The composite material exhibits minimal birefringence and dispersion, ensuring precise optical performance. Applications range from aerospace and defense to telecommunications and scientific instrumentation. This abstract highlights the synergistic benefits of combining sapphire and JGSI JGS2 quartz in optical component fabrication, paving the way for advanced optical systems in diverse industries.

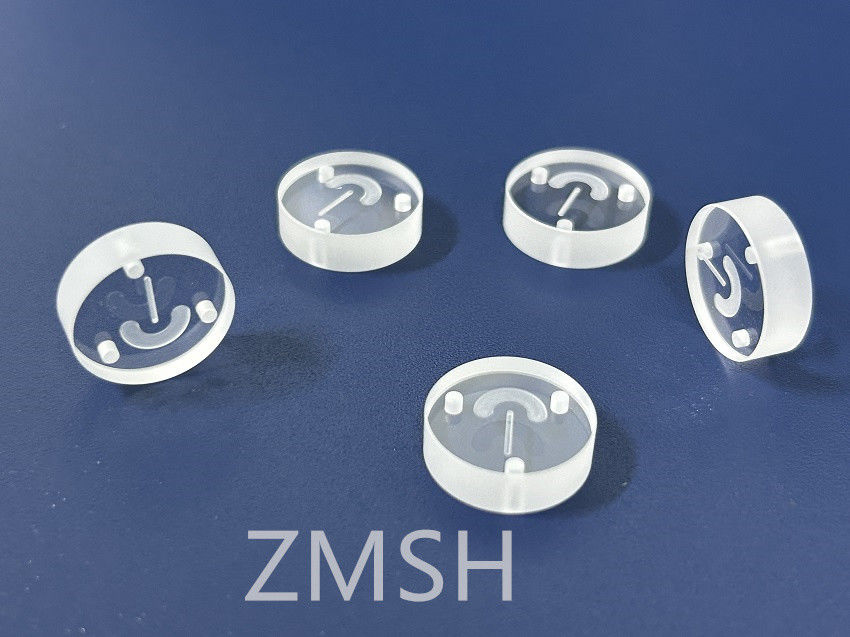

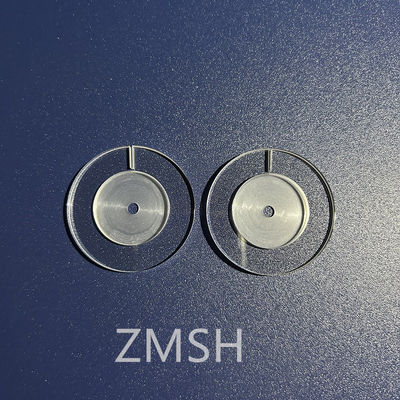

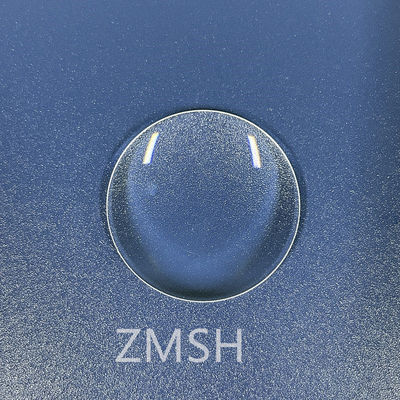

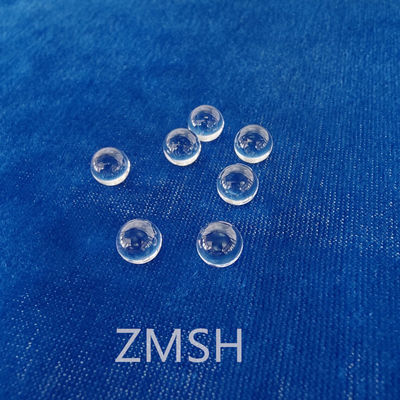

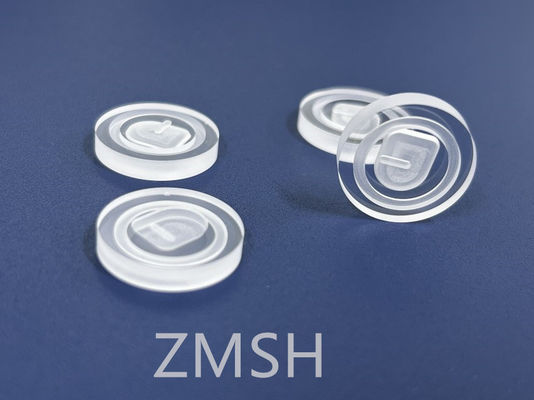

sapphire JGSI JGS2 quartz optical components' showcase

sapphire JGSI JGS2 quartz optical components' properties

Sapphire and JGSI JGS2 quartz are both renowned for their optical properties, and when used in combination, they offer a unique set of characteristics. Here are some properties of each material:

Sapphire:

1. High Transparency: Sapphire has excellent transparency from the ultraviolet (UV) to the near-infrared (NIR) regions of the electromagnetic spectrum, making it suitable for a wide range of optical applications.
2. Hardness: Sapphire is one of the hardest known materials, ranking 9 on the Mohs scale, which ensures excellent scratch resistance and durability.
3. Chemical Stability: It is highly resistant to chemical attack, making it suitable for use in harsh environments.
4. Thermal Conductivity: Sapphire exhibits high thermal conductivity, allowing for efficient heat dissipation in optical systems.
5. Dielectric Properties: Sapphire has high dielectric strength and low loss tangent, making it suitable for use in high-frequency and high-power applications.

JGSI JGS2 Quartz:

1. Optical Transparency: JGSI JGS2 quartz offers exceptional optical clarity and transparency across a broad spectral range, similar to sapphire.
2. Mechanical Stability: It possesses good mechanical strength and resistance to thermal shock, although not as high as sapphire.
3. Low Birefringence: JGSI JGS2 quartz typically exhibits low birefringence, making it suitable for applications requiring precise optical alignment.
4. Thermal Stability: It has good thermal stability, although not as high as sapphire, making it suitable for use in moderate temperature environments.
5. Chemical Resistance: JGSI JGS2 quartz is resistant to many chemicals and acids, although it may not be as inert as sapphire in some aggressive chemical environments.

Composite Properties:

1. Synergistic Benefits: By combining sapphire and JGSI JGS2 quartz in optical components, the composite can leverage the strengths of both materials, such as the hardness of sapphire and the optical clarity of JGSI JGS2 quartz.
2. Customization: The composite's properties can be tailored to specific requirements by adjusting the ratio of sapphire to JGSI JGS2 quartz, allowing for customization based on the application's needs.
3. Enhanced Performance: The composite material can offer enhanced performance compared to individual materials alone, such as improved mechanical stability, thermal conductivity, and optical transmission.

Overall, the properties of sapphire and JGSI JGS2 quartz make them valuable materials for optical components, and their combination in composite structures can lead to innovative solutions for various optical applications.

sapphire JGSI JGS2 quartz optical components' applications

1. Imaging Systems:

   • Sapphire and JGSI JGS2 quartz components are used in lenses, windows, and prisms for imaging systems due to their high optical transparency and low distortion properties.

2. Laser Systems:

   • Sapphire and JGSI JGS2 quartz are utilized in laser systems for optical windows, laser rods, and laser cavities due to their excellent optical and thermal properties.

3. Optical Communications:

   • These components find applications in optical communications systems for fiber-optic connectors, isolators, and circulators due to their high optical transparency and mechanical stability.

4. Aerospace and Defense:

   • Sapphire and JGSI JGS2 quartz optical components are used in aerospace and defense applications for cockpit displays, missile domes, and infrared windows due to their durability and high optical performance.

5. Scientific Instrumentation:

   • They are employed in scientific instruments such as spectrometers, microscopes, and telescopes due to their excellent optical properties and stability.

6. Medical Devices:

   • Sapphire and JGSI JGS2 quartz components find applications in medical devices such as endoscopes, lasers, and optical sensors due to their biocompatibility and optical properties.

   • Q&A

   • What is the difference between JGS1 and JGS2?

   •
   • JGS1 is used for optics operating in the deep UV and the visible wavelength range (Laser Lenses, Windows, Prisms, Mirrors, etc.). It is practically free of bubbles and inclusions. Optical Grade Fused Quartz (JGS2) provides good UV and visible transmission.
   •

   • What are the components of quartz glass?

   •
   • During the manufacture of quartz glass, quartz sand is poured into a vertical furnace. The material is melted in crucibles inside the furnace and drawn through a nozzle to rods or plates. A mandrel shaft is also used in the production of a quartz glass rod.
