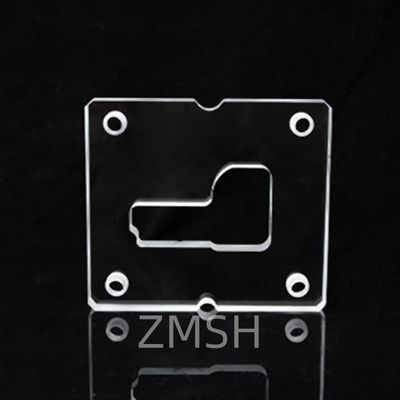

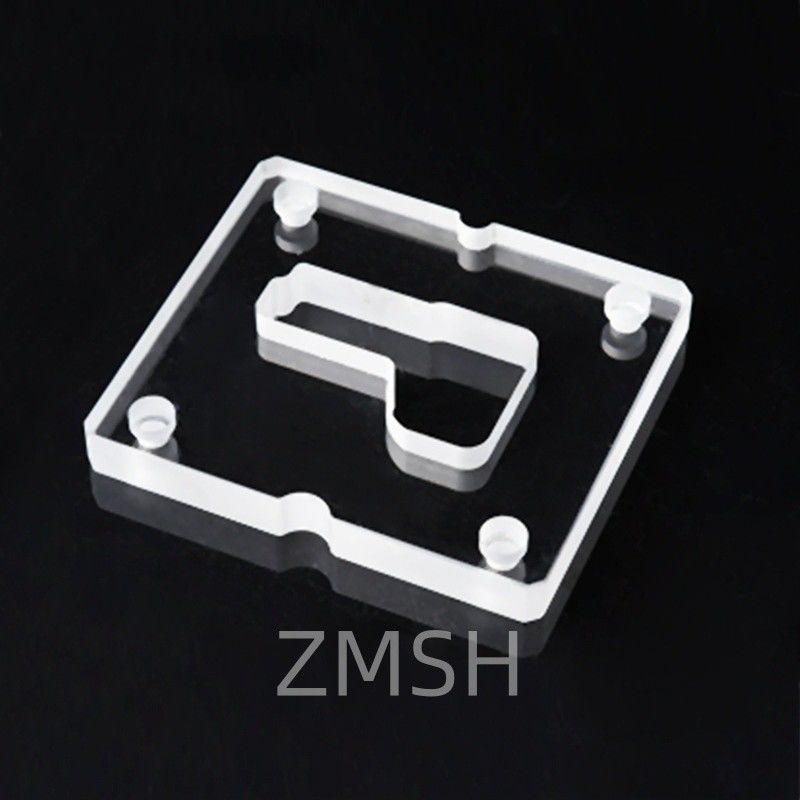

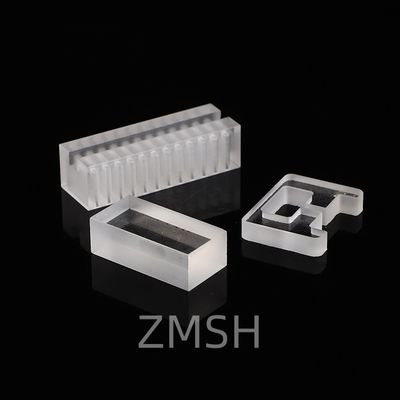

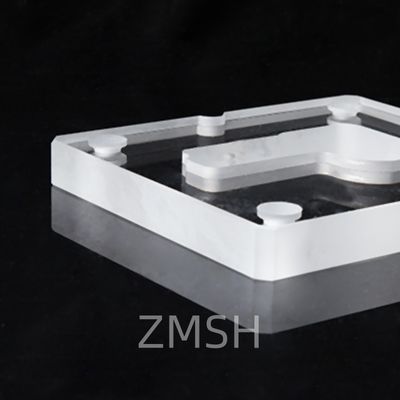

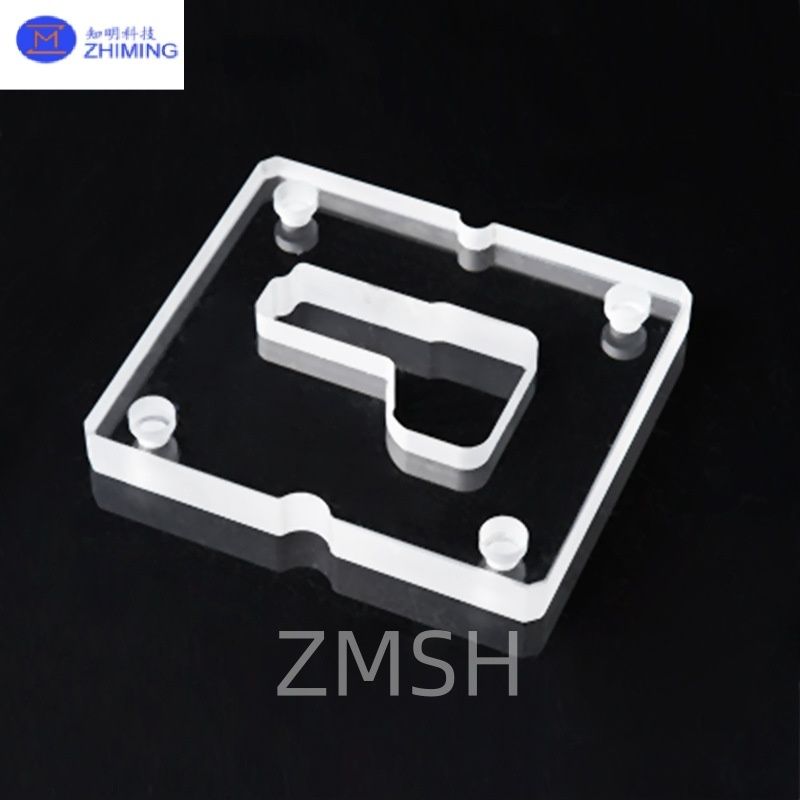

Custom Shaped Fused Quartz Plates with Through Holes Optical
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Model Number: | Quartz through-hole shaped plates |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | 20USD |
| Packaging Details: | custom cartons |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | By case |
|
Detail Information |
|||
| Property: | Typical Values | Diameter: | 10mm-600mm |
|---|---|---|---|
| Length: | 10mm-1000mm | Width: | 10mm-1000mm |
| Sio2: | ＞99.9% | Density: | 2.2×10³kg/m² |
Product Description
Introduction
Quartz through-hole shaped plates are high-precision optical or structural components made from ultra-pure quartz materials. These custom-shaped plates feature one or more holes drilled through the substrate and are used in applications requiring high thermal resistance, chemical durability, and precise light or fluid passage.
Available in JGS1, JGS2, and JGS3 grades, these quartz plates support a wide range of photonic, electronic, and biomedical systems.
Material Grades
-
JGS1 (UV Grade Fused Silica):
Excellent transmission from 185–2500 nm, ideal for UV lasers and lithography. Very low OH⁻ content and minimal birefringence. -
JGS2 (Optical Grade Fused Silica):
Suitable for visible and near-infrared applications (260–2500 nm), with high optical homogeneity. -
JGS3 (Infrared Quartz Glass):
Optimized for IR wavelengths (>300 nm), less transparent in the deep UV range, suitable for thermal optics and industrial use.
Manufacturing Process
-
Material Selection & Cutting
High-purity quartz blanks are cut into custom shapes using CNC, waterjet, or laser cutting based on drawing specifications. -
Hole Drilling
Precision holes are machined via ultrasonic, CO₂ laser, or mechanical drilling, depending on tolerance and application. -
Polishing & Finishing
Optical surfaces can be single- or double-side polished, with options for matte edges, beveling, or chemical polishing. -
Cleaning & Packaging
Ultra-clean environments are used for final inspection and class-100 packaging to ensure compatibility with cleanroom use.
Applications
-
Semiconductor Etching & CVD Fixtures
-
Optical Windows with Alignment or Fiber Ports
-
Biotech Lab-On-Chip Devices & Flow Cells
-
Laser Systems with Beam Apertures
-
Sensor Mounting Plates & Vacuum Interfaces
Parameter
| property | typical values |
| diameter | 10mm-600mm |
| length | 10mm-1000mm |
| width | 10mm-1000mm |
| thickness | 0.5mm-60mm |
| color | clear/transparent |
| Sio2 | ＞99.9% |
| density | 2.2×10³kg/m² |
| moths hardness | 5.3~6.5(moths scale) |
| compressive strength | ＞1.1×109 pa |
| coefficient of thermal expansion | 5.5×10-7cm/cm℃ |
| the temperature for a short time | 1200℃ |
| the temperature for a long time | 1100℃ |
| softening point | 1730℃ |
| annealing point | 1250℃ |
| index of refraction | 1.4585 |
| transmittance rate | 85% |
FAQ
Q1: Can hole size and position be fully customized?
A1: Yes. We support customized hole diameters (e.g., 0.1–20 mm) and positions according to CAD drawings.
Q2: What is the difference between JGS1 and JGS2 for optical usage?
A2: JGS1 transmits deep UV light and has higher purity, while JGS2 offers cost-effective performance for visible/NIR use.
Q3: Are these plates chemically resistant?
A3: All grades of quartz are highly resistant to most acids and solvents except hydrofluoric acid (HF).
Q4: Can multiple holes or shapes be included in one plate?
A4: Absolutely. Multi-hole and complex outer geometries (ovals, slots, square cuts) are supported.
