UV/IR Grade Quartz Through Hole Plates Custom Cut High Temperature Chemical
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Model Number: | Quartz through-hole shaped plates |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | 20USD |
| Packaging Details: | custom cartons |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | By case |
|
Detail Information |
|||
| Property: | Typical Values | Diameter: | 10mm-600mm |
|---|---|---|---|
| Length: | 10mm-1000mm | Width: | 10mm-1000mm |
| Sio2: | ＞99.9% | Density: | 2.2×10³kg/m² |
Product Description
Overview

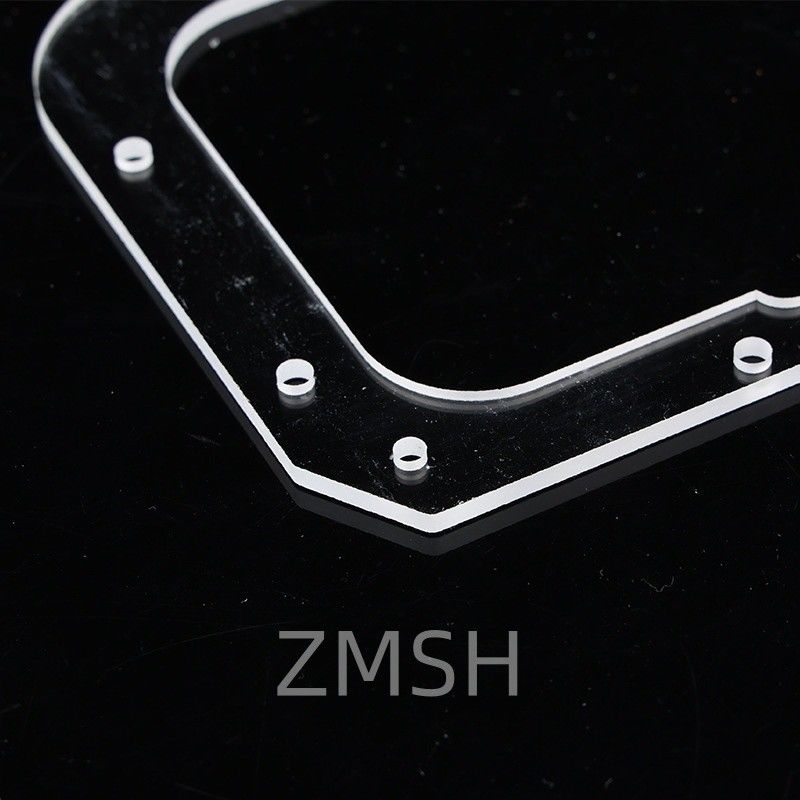

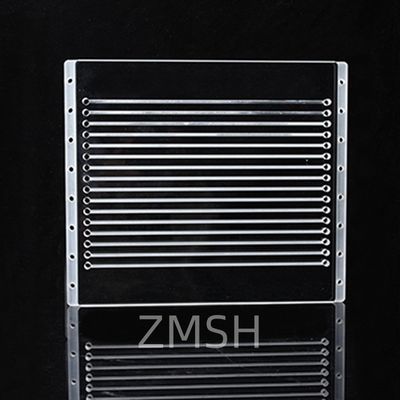

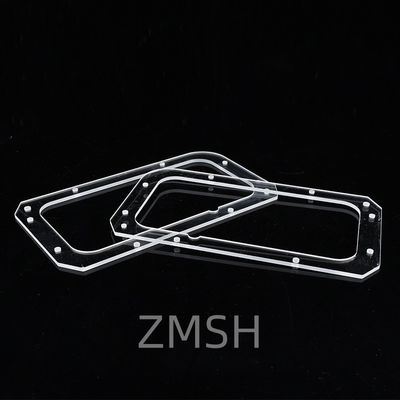

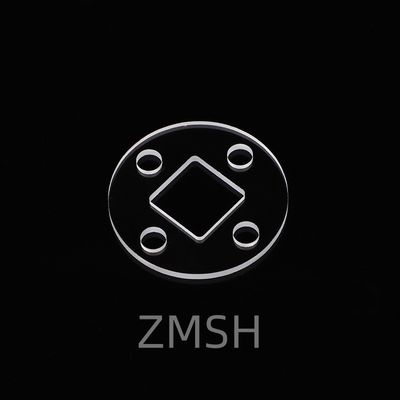

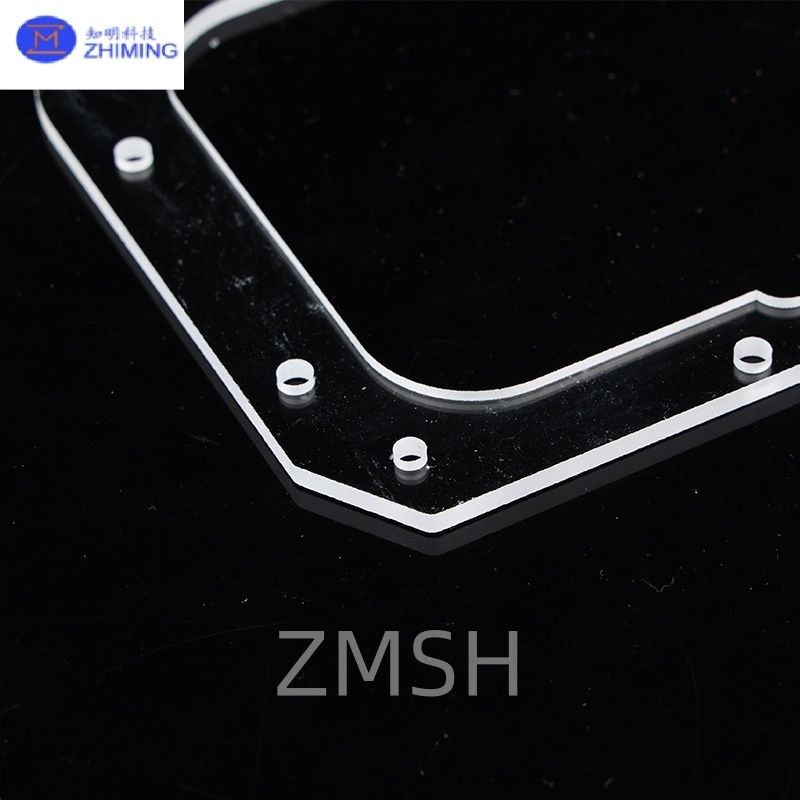

Quartz plates with through-holes are engineered components fabricated from high-purity silica glass, available in custom dimensions and complex geometries. These shaped quartz substrates are designed to support high-performance applications in optics, microfluidics, vacuum systems, and high-temperature manufacturing.
The integrated holes allow for beam alignment, gas flow, fiber feedthroughs, or mounting functions. The plates are offered in various material types to match spectral and thermal needs.
Quartz Material Types Explained
-
JGS1 (UV-Grade Quartz):
Best for applications in excimer laser optics, UV lithography, and DUV detection. Superior transmission down to 185 nm. -
JGS2 (Standard Optical Quartz):
Balanced cost and performance in the 260–2500 nm range. Suitable for imaging systems and general photonics. -
JGS3 (Infrared Quartz):
Higher OH⁻ content, better thermal shock resistance. Ideal for high-heat environments, not suitable for UV-critical tasks.
How They’re Made
-
CNC Machining: For outer profile and shaping
-
Laser or Ultrasonic Drilling: To create precision through-holes
-
Edge Treatment: Chamfering, beveling, or laser smoothing
-
Surface Finish: Optical polish, matte, or rough finish as required
Use Cases
-
Fiber optic component mounting
-
IR/visible laser optics with apertures
-
Gas flow chambers or microfluidic platforms
-
High-temperature filter plates
-
UV-transparent diagnostic windows
FAQ
Q1: Do you offer double-side polishing for these plates?
A1: Yes, both single-side and double-side polished finishes are available for optical alignment and bonding applications.
Q2: What’s the typical thickness range?
A2: Standard thickness is 0.5–10 mm, but custom thicknesses are available upon request.
Q3: Can you process complex shapes like notches or slots?
A3: Yes. We can fabricate complex contours including keyways, curved edges, or hybrid geometries.
Q4: Is JGS3 suitable for laser use?
A4: JGS3 can be used with IR lasers but is not suitable for deep-UV laser optics due to lower transmission.
