4" Sapphire Based GaN Templates Semiconductor Substrate

4" Sapphire Based GaN Templates Semiconductor Substrate

  • High Light

    5G saw gan templates

    ,

    4" gan templates

    ,

    GaN semiconductor Substrate

  • Substrate
    Sapphire Wafer
  • Layer
    GaN Template
  • Layer Thickness
    1-5um
  • Conductivity Type
    N/P
  • Orientation
    0001
  • Application
    High Power/high Frequency Electronic Devices
  • Application 2
    5G Saw/BAW Devices
  • Silicon Thickness
    525um/625um/725um
  • Place of Origin
    China
  • Brand Name
    ZMKJ
  • Model Number
    4inch GaN-sapphire
  • Minimum Order Quantity
    5pcs
  • Price
    by case
  • Packaging Details
    single wafer container in cleaning room
  • Delivery Time
    in 30days
  • Payment Terms
    T/T, Western Union, paypal
  • Supply Ability
    50pcs/month

4" Sapphire Based GaN Templates Semiconductor Substrate

2inch 4inch 4" Sapphire based GaN templates GaN film on sapphire substrate



Properties of GaN



Chemical properties of GaN

1) At room temperature, GaN is insoluble in water, acid and alkali.

2)Dissolved in a hot alkaline solution at a very slow rate.

3) NaOH, H2SO4 and H3PO4 can quickly corrode the poor quality of GaN, can be used for these poor quality GaN crystal defect detection.

4) GaN in the HCL or hydrogen, at high temperature presents unstable characteristics.

5) GaN is the most stable under nitrogen.

Electrical properties of GaN

1) The electrical properties of GaN are the most important factors affecting the device.

2) The GaN with no doping was n in all the cases, and the electron concentration of the best sample was about 4*(10^16)/c㎡.

3) Generally, the prepared P samples are highly compensated.

Optical properties of GaN

1) Wide band gap compound semiconductor material with high band width (2.3~6.2eV), can cover the red yellow green, blue, violet and ultraviolet spectrum, so far is that any other semiconductor materials are unable to achieve.

2) Mainly used in blue and violet light emitting device.

Properties of GaN Material

1) High frequency property, arrive at 300G Hz. (Si is 10G & GaAs is 80G)

2) High temperature property, Normal work at 300℃, very suitable for aerospace, military and other high temperature environment.

3) The electron drift has high saturation velocity, low dielectric constant and good thermal conductivity.

4) Acid and alkali resistance, corrosion resistance, can be used in harsh environment.

5) High voltage characteristics, impact resistance, high reliability.

6) Large power, the communication equipment is very eager.


Application of GaN

Main usage of GaN:

1) light emitting diodes, LED

2) field effect transistors, FET

3) laser diodes, LD


                             Specification

C4" Sapphire Based GaN Templates Semiconductor Substrate 0aracteristic Specification



Other relaterd  4INCH  GaN Template Specification



  GaN/ Al₂O₃ Substrates (4") 4inch
Item  Un-doped N-type

High-doped

N-type

Size  (mm) Φ100.0±0.5 (4")
Substrate Structure GaN on Sapphire(0001)
SurfaceFinished  (Standard: SSP Option: DSP)
Thickness (μm) 4.5±0.5; 20±2;Customized
Conduction Type  Un-doped N-type High-doped N-type
Resistivity  (Ω·cm)(300K) ≤0.5 ≤0.05 ≤0.01
GaN Thickness Uniformity

≤±10% (4")
Dislocation Density (cm-2)

≤5×108
Useable Surface Area >90%
Package  Packaged in a class 100 clean room environment.

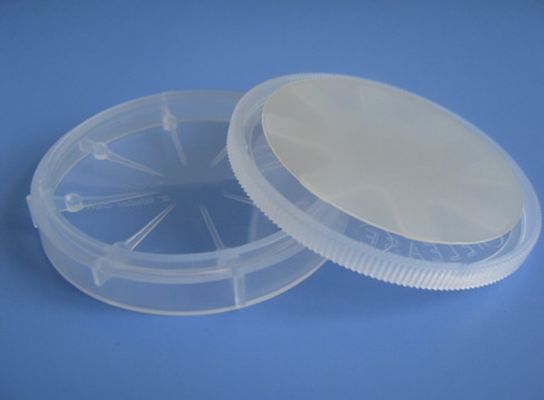

4" Sapphire Based GaN Templates Semiconductor Substrate 1

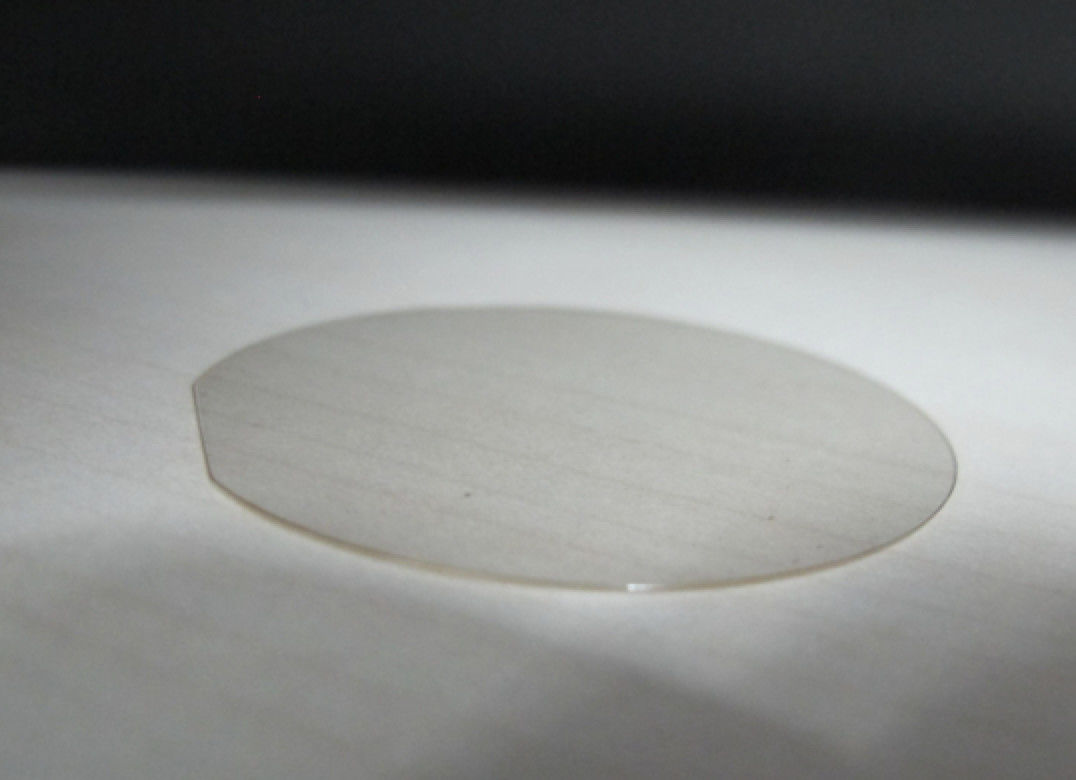

4" Sapphire Based GaN Templates Semiconductor Substrate 24" Sapphire Based GaN Templates Semiconductor Substrate 3

Crystal structure

Wurtzite

Lattice constant (Å) a=3.112, c=4.982
Conduction band type Direct bandgap
Density (g/cm3) 3.23
Surface microhardness (Knoop test) 800
Melting point (℃) 2750 (10-100 bar in N2)
Thermal conductivity (W/m·K) 320
Band gap energy (eV) 6.28
Electron mobility (V·s/cm2) 1100
Electric breakdown field (MV/cm) 11.7
