Yttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAG
Product Details:
| Place of Origin: | China |
| Brand Name: | zmkj |
| Model Number: | YAG Ingots |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10kg |
|---|---|
| Price: | by case |
| Packaging Details: | single wafer case under 1000 cleaning room |
| Delivery Time: | 3-4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Material: | YAG Single Crystal | Size: | 2inch |
|---|---|---|---|
| Thermal Conductivity: | 7.4 W·m-1·K-1 | Spectral Range: | 400~1100nm(but Not 470~500nm)。 |
| Product Name: | Yttrium Aluminum Garnet | Doping: | Er:YAG Ce:YAG Nd:YAG Yb:YAG |
| High Light: | Yttrium Aluminum Garnet Wafer,YAG Ingots Synthetic Gem Stone,Yb YAG Wafer |
||
Product Description
10x10mmt Terbium gallium garnet (TGG)crystals substrate wafer for laser device
Product Type: Yttrium aluminum garnet (YAG) is an isotropic crystal with cubic symmetry. It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band. Therefore, undoped pure YAG crystals are a new type of substrate and window materials for ultraviolet and infrared optical devices. At the same time, the excellent physical and chemical properties and optical properties of YAG crystals make them important optical applications in high temperature and high energy physical environments.
The application of YAG material:
Undoped pure YAG crystal is a new type of substrate and window material for ultraviolet and infrared optical devices.
YAG crystals have important optical applications in high-temperature and high-energy physical environments.
The application of YAG material:
It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band.
| The main performance parameters | |
| Crystal structure | Cubic |
| Lattice Constant | 12.02 A |
| Melting point | 1970 ℃ |
| Mohs hardness | 8.5 |
| Density | 4.55 + 0.04g/cm3 |
| Specific heat | 0.59J/g cm? -3 @0-20 ℃ |
| Modulus of elasticity | 310 GPa |
| Young's modulus | 3.17x10 4 Kg/mm2 |
| Poisson ratio | 0.3 |
| Tensile strength | 0.13-0.26GPa |
| Thermal expansion coefficient |
[111]: 7.8x10 -6 /℃ @0-250℃ [110] : 7.7x10 -6 / ℃ @0-250℃ [100]: 8.2x10 -6 / ℃ @0-250℃ |
| Thermal conductivity |
14W/m/K@20 ℃ 10.5W/m/K@100 ℃ |
| Calorescence coefficient | Dn/dt = 7.3x10-6 /℃ |
| Thermal shock | 800W/m |
| Refractive index | 1.8197@1064mm |
| Transmittance range | 250-5000nm (Without absorption in 2000 - 3000 nm) |
| Anti-optical-damage threshold | ≥ 15Jcm -2 @1064nm |
| Standard Orientation | <111> and <100> |

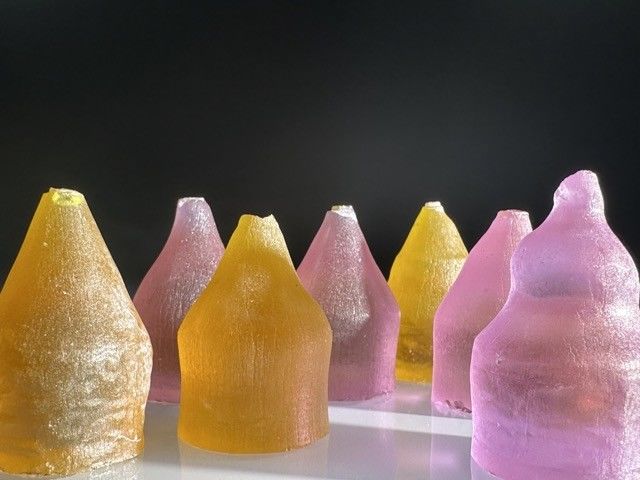

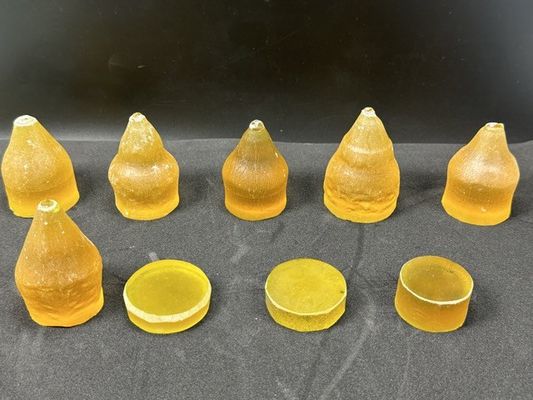

Some leftover YAG crystal anchorage
We also can offer Er:YAG, Ce:YAG, Nd:YAG, Yb:YAG, and others
