Quartz Fused Silica Optical Polished Sapphire Tube / Rod K9 High Hardness Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | zmkj |
| Certification: | ROHS |
| Model Number: | Sapphire tube and rod |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | by case |
| Packaging Details: | plastic bag |
| Delivery Time: | 1-2weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs per month |
|
Detail Information |
|||
| Material: | Al2O3 99.999% | Surface: | Polished Or Rough |
|---|---|---|---|
| Application: | Physics, Chemistry, Optics | Hardness: | 9.0 |
| Characteristic: | High Temperature Resistance | Feature: | Heat And Pressure Resistance |
| High Light: | Quartz Fused Silica Optical Sapphire Tube,High Hardness Resistance Sapphire Rod,K9 Polished Sapphire Tube |
||
Product Description
Sapphire Tube Rod Quartz Fused Silica Optical Polished K9 High Hardness Resistance

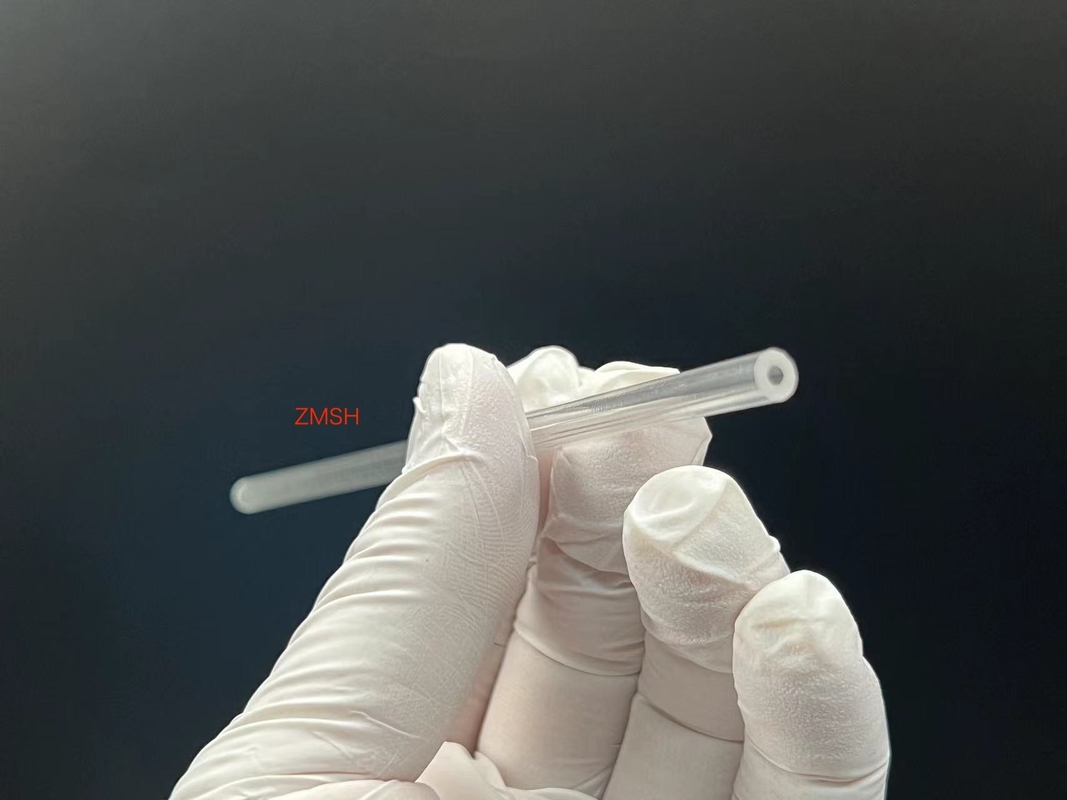

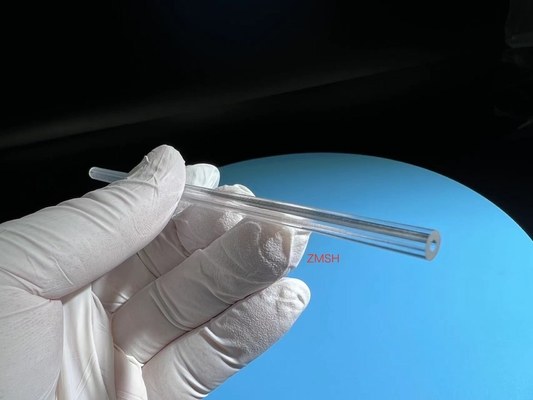

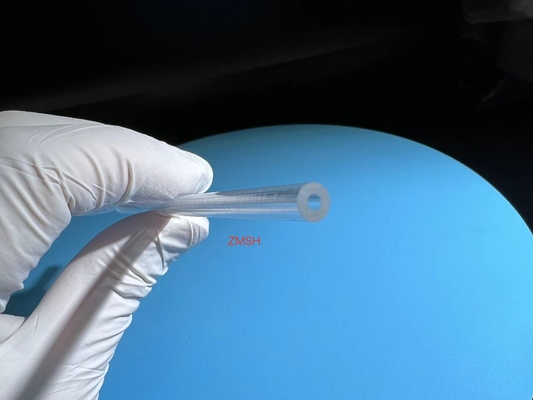

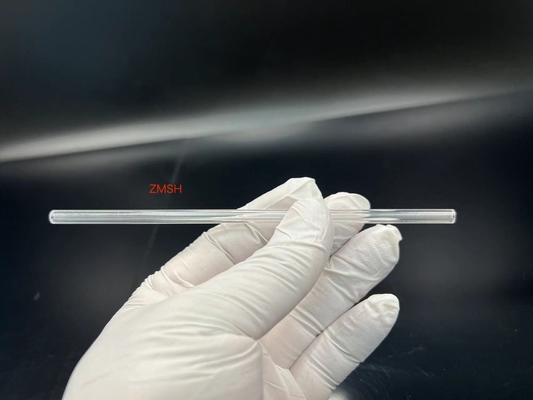

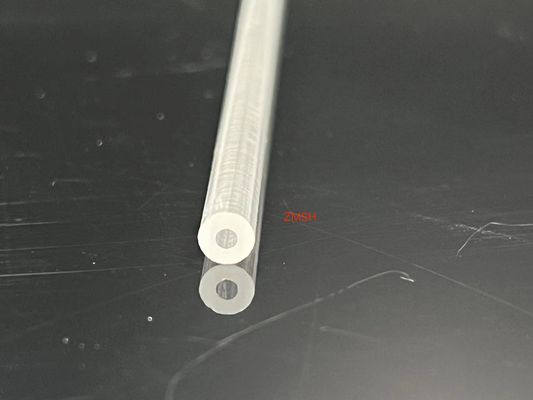

Sapphire tube:
As one of the hardest substances known, sapphire has an extremely high melting point (2000°C), excellent physical, chemical, and optical properties, and is widely used in a variety of harsh engineering environments.
Sapphire tube characteristics:
- excellent heat and pressure resistance: our sapphire tube use temperature up to 1950℃ high temperature
- ultra-high purity: our sapphire tube is 99.995% purity, and ultra-high purity ensures the performance advantages of sapphire.
- ultra-high hardness and durability: sapphire tube hardness up to Mohs9, with strong wear resistance.
- strong air tightness: Our sapphire tube uses proprietary technology molding, with 100% air tightness, preventing residual gas penetration and chemical gas corrosion resistance.
|
Sapphire tube(One end sealing fitting is available) |
|||
|
Items |
Out dia |
Thick |
Length |
|
1 |
5～10mm |
1～4mm |
0～1400mm |
|
2 |
10～20mm |
1～8mm |
0～1400mm |
|
3 |
20～30mm |
1～10mm |
0～1400mm |
|
4 |
30～50mm |
1～15mm |
0～1400mm |
|
5 |
50～70mm |
1～15mm |
0～400mm |
|
6 |
1～3mm |
inner hole |
0～150mm |
- 上一篇:无上一条
Sapphire tube application field:
• Energy: removing NOx, etc
• Heavy oil reactor: petrochemical and other fields
• Optical applications: UV lamps, automotive lights
• Glass and ceramic industry: Replacement of Pt probes, no pollution
• Instrument manufacturing: microwave digestion instrument, high-temperature reactor, laboratory testing instrument, etc
• Corrosive environmental manufacturing: concentrated or boiling mineral acids, high-temperature reactive oxides
• Semiconductor manufacturing: Up to 99.995% purity of sapphire casing ensures a clean production process
Sapphire, which is the second hardest crystal, features a variety of attributes that are ideal for use in harsh environments, including extreme surface hardness, high thermal conductivity, high dielectric constant, as well as a strong resistance to a variety of chemical acids or alkalis. Compared to many standard optical materials, Sapphire Optical Components offer thinner designs, along with transmission ranges from 0.15 – 5.5μm for optimum performance in the ultraviolet to the MWIR.
Sapphire Optical Components are used in a variety of applications requiring high durability or broad spectral ranges, including semiconductor, FTIR spectroscopy, or FLIR imaging.
|
GENERAL
|
||
|
Chemical Formula
|
Al2O3
|
|
|
Crystal Stucture
|
Hexagonal System (hk o 1)
|
|
|
Unit Cell Dimension
|
a=4.758 Å,Å c=12.991 Å, c:a=2.730
|
|
|
PHYSICAL
|
||
|
|
Metric
|
English (Imperial)
|
|
Density
|
3.98 g/cc
|
0.144 lb/in3
|
|
Hardness
|
1525 - 2000 Knoop, 9 mhos
|
3700° F
|
|
Melting Point
|
2310 K (2040° C)
|
|
|
STRUCTURAL
|
||
|
Tensile Strength
|
275 MPa to 400 MPa
|
40,000 to 58,000 psi
|
|
Tensile Strength at 20° C
|
|
58,000 psi (design min.)
|
|
Tensile Strength at 500° C
|
|
40,000 psi (design min.)
|
|
Tensile Strength at 1000° C
|
355 MPa
|
52,000 psi (design min.)
|
|
Flexural Stength
|
480 MPa to 895 MPa
|
70,000 to 130,000 psi
|
|
Compression Strength
|
2.0 GPa (ultimate)
|
300,000 psi (ultimate)
|
Sapphire parts products in detail
Recommend Products
FAQ
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 3pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
