Sapphire Crystal Overview

Sapphire crystal is a synthetic single-crystal aluminum oxide (Al₂O₃) material renowned for its exceptional hardness, optical transparency, thermal stability, and chemical resistance. With a Mohs hardness of 9—second only to diamond—sapphire crystal is widely used in semiconductor manufacturing, optical systems, aerospace, medical devices, defense, consumer electronics, and luxury watches.

As a professional sapphire crystal manufacturer, we provide crystal growth, orientation, slicing, grinding, polishing, CNC machining, and customized sapphire components. Our vertically integrated manufacturing process ensures consistent crystal quality, stable supply, and precise dimensional control.

KY Sapphire Crystal Growth Technology

One of our core manufacturing technologies is the Kyropoulos (KY) crystal growth method, one of the world's most advanced processes for producing large-diameter, high-quality sapphire crystals.

Unlike flame fusion or Verneuil methods, the KY process allows sapphire crystals to grow slowly under carefully controlled thermal conditions, minimizing internal stress and crystal defects. The result is a crystal with excellent optical homogeneity, low dislocation density, and outstanding mechanical properties.

KY Sapphire Growth Process

The manufacturing process typically includes:

1. High-Purity Raw Material Preparation
   • 99.99%–99.999% high-purity Al₂O₃ powder
   • Strict impurity control
   • Controlled atmosphere inside the furnace
2. Melting
   • Aluminum oxide is melted at approximately 2050°C inside a tungsten or molybdenum crucible.
3. Seed Crystal Introduction
   • A precisely oriented sapphire seed crystal (C-plane, A-plane, R-plane, M-plane, etc.) is dipped into the molten material.
4. Slow Crystal Growth
   • The crystal is grown over several days or weeks by carefully controlling temperature gradients and pulling rates.
   • Slow growth minimizes thermal stress and produces large single crystals with excellent structural integrity.
5. Controlled Cooling
   • After growth, the boule is cooled gradually to prevent cracking and residual stress.
6. Annealing
   • Internal stress is further relieved through heat treatment, improving optical and mechanical performance.
7. Orientation & Precision Machining
   • X-ray orientation
   • Diamond wire cutting
   • Grinding
   • Double-side polishing (DSP)
   • Optical polishing
   • Precision CNC machining

Advantages of KY Sapphire Crystal

• Large diameter sapphire boules
• Excellent crystal uniformity
• Low dislocation density
• High optical transmission (UV to IR)
• Outstanding thermal stability
• High dielectric strength
• Excellent plasma resistance
• Superior mechanical strength
• Minimal internal stress
• Suitable for ultra-precision machining

Technical Specifications

Available Products

Using KY-grown sapphire crystals, we manufacture:

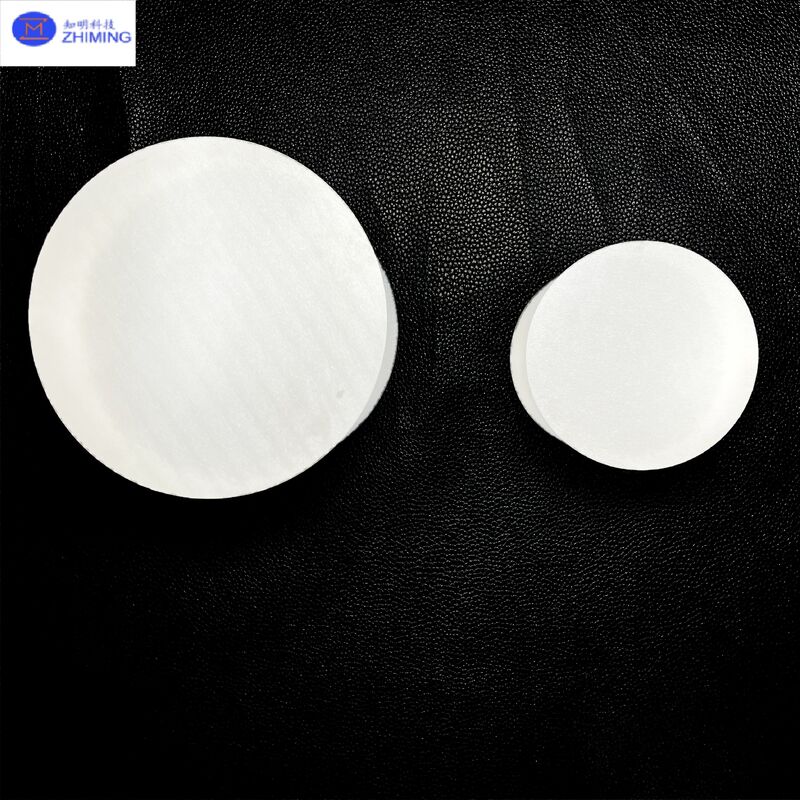

• Sapphire Wafers
• Sapphire Boules
• Sapphire Ingots
• Sapphire Rods
• Sapphire Tubes
• Sapphire Windows
• Sapphire Domes
• Sapphire Lenses
• Sapphire Watch Crystals
• Sapphire Watch Cases
• Sapphire Bearings
• Sapphire Pistons
• Sapphire Optical Components
• Customized Sapphire Parts

Applications

KY-grown sapphire crystals are widely used in:

• Semiconductor substrates
• LED manufacturing
• GaN epitaxy
• Optical windows
• High-power laser systems
• Aerospace equipment
• Vacuum chambers
• Plasma processing equipment
• Medical instruments
• Defense optics
• Scientific research
• Luxury watches
• Jewelry materials

Why Choose Us?

• In-house KY sapphire crystal growth
• Complete production from crystal growth to finished parts
• Precision CNC machining
• Custom crystal orientations
• OEM & ODM manufacturing
• Strict quality inspection
• Fast prototype service
• Global export experience
• ISO-compliant manufacturing
• Competitive factory pricing

FAQ

What is the KY sapphire growth method?

The Kyropoulos (KY) method is a crystal growth technology that produces large, high-quality sapphire crystals with low internal stress, excellent optical uniformity, and minimal crystal defects. It is widely used for semiconductor substrates and optical-grade sapphire.

Why choose KY-grown sapphire instead of Verneuil sapphire?

KY-grown sapphire offers significantly better crystal quality, lower birefringence, improved optical performance, higher structural integrity, and better suitability for precision machining.

Can you manufacture customized sapphire components?

Yes. We provide custom sapphire products based on customer drawings, including optical windows, wafers, tubes, rods, domes, lenses, watch components, and semiconductor parts.
