Sapphire Wafer 6inch C Axis to M Axis Orientation 350um Thickness

Sapphire Wafer 6inch C Axis to M Axis Orientation 350um Thickness

Brand Name: ZMSH
Model Number: 6inch
MOQ: 10pieces
Packaging Details: Vacuum Package
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
RoHS
Diameter:
6inch
Thickness:
350±15um
Roughness:
Ra ≤ 0.2nm
Warp:
≤ 15um
TTV:
≤ 10um
Shape:
Round, Flat, Notch
Scratch/Dig.:
20/10
Polish:
DSP Or SSP
Product Description

Sapphire Wafer 6inch C Axis to M Axis Orientation 350um Thickness



Product Description

Sapphire wafers are single‑crystal substrates grown from high‑purity aluminum oxide (Al₂O₃) via processes such as the Kyropoulos (KY) and Heat Exchanger Method (HEM). Their molecular structure consists of three oxygen atoms and two aluminum atoms covalently bonded in a hexagonal lattice. This structure endows sapphire wafers with a range of superior properties, making them a key material across multiple high‑precision and cutting‑edge fields.



Product Parameters:



Diameter: 6inch or 150±0.1mm
Thickness: 350±15um; 500 ± 15 um; 1000±15um
Roughness: Ra ≤ 0.2 nm
Warp: ≤ 15um
TTV: ≤ 10um
Polish: DSP (Double Side Polished); SSP(Single Side Polished)
Shape: Round, Flat, Notch
Wafer Orientation: C Axis to M Axis
Edge Form: 45°, C shape
Material: Sapphire
Remarks:

All specifications above can be customized upon your request.



Product Pictures:

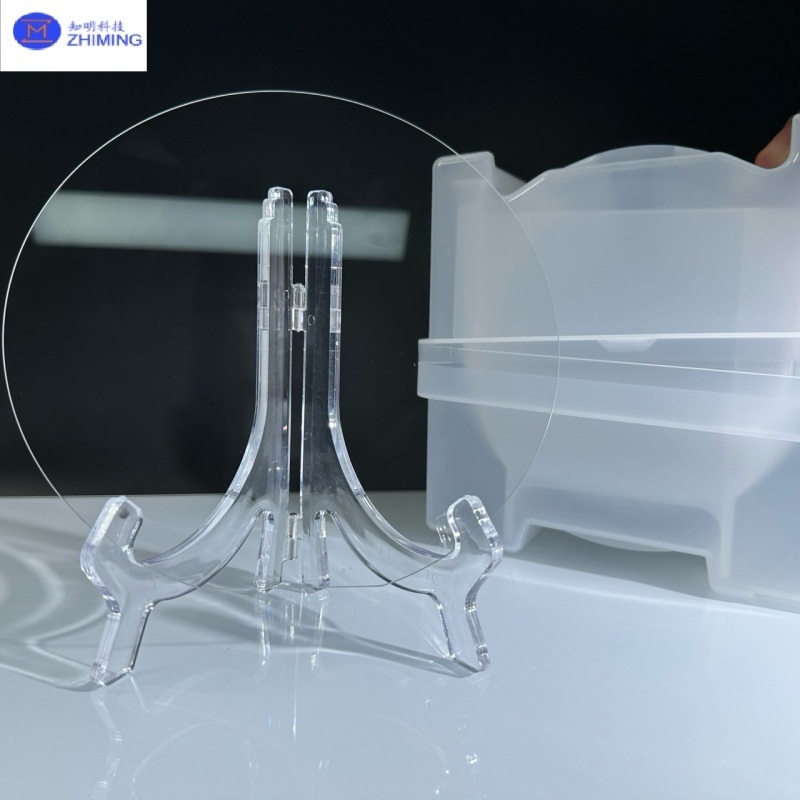

Sapphire Wafer 6inch C Axis to M Axis Orientation 350um Thickness 0



Product Highlights:



* Common crystallographic orientations include C‑plane (0001), A‑plane (11‑20), and R‑plane (1‑102); the choice of orientation tailors optical, mechanical, and epitaxial behavior for specific devices.



* Typical optical transmission spans the near‑UV to mid‑infrared (approximately 0.19–5.5 μm), with high transparency in the 0.3–5 μm range, supporting applications in optics and optoelectronics.



* Mechanical and thermal properties include a Mohs hardness of 9, high strength and wear resistance, and a melting point ~2050°C, enabling performance under extreme environments.



* Chemical stability is excellent—resistant to most acids and alkalis—with notable attack only by HF, phosphoric acid, and molten KOH at elevated temperatures.



* Representative applications: LED substrates (GaN on sapphire), infrared and laser windows, optical components, and wear‑resistant covers in consumer electronics.



Related Product Recommendation:



2inch Spphire Wafer Orientation C Axis:

Sapphire Wafer 6inch C Axis to M Axis Orientation 350um Thickness 1



FAQ:



Q: Which sizes are availale for ZMSH sapphire wafer?

A: 2inch, 3inch, 4inch, 6inch, 8inch, 12inch.

Q:What is your minimum order for 6inch sapphire wafer?
A:MOQ: 10pieces

Q:How long will it take to execute my order and delivery it ?
A:confirm the order 1days After confirming the payment and delivery in 5days if on stocks.

Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.
