Ultrafast Laser Rainbow Marking Machine Metal Interference Stripes With Dynamic Angle-Shift Rainbow Effects
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | T/T |
|
Detail Information |
|||
| Laser Output Average Power: | 2500W | Laser Wavelength: | 1060 Nm |
|---|---|---|---|
| Laser Repetition Frequency: | 1-1000 KHZ | Cooling Method: | Water Cooling |
| Highlight: | Dynamic Angle Shift Rainbow Marking Machine,Ultrafast Laser Rainbow Marking Machine,Metal Interference Stripes Rainbow Marking Machine |
||
Product Description
Product Overview

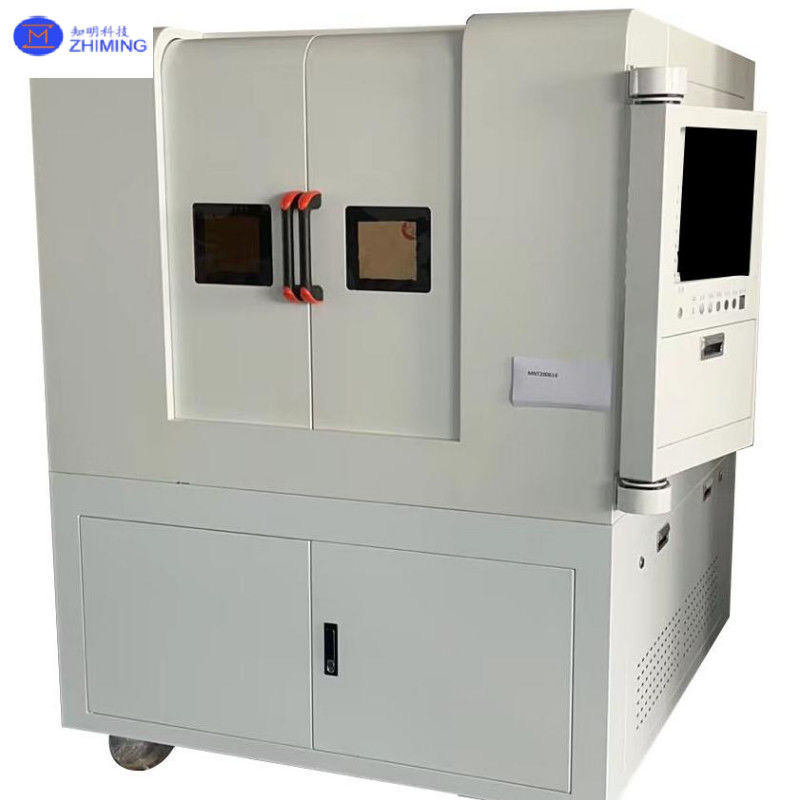

The Ultrafast Laser Rainbow Marking Machine is a high-end system utilizing ultrafast laser technology. It generates dynamic rainbow effects on mirror-like surfaces (e.g., stainless steel, PVD coatings) through nano-scale physical interference patterns created by high-peak-power lasers. The machine supports direct processing on metals and transfer printing to plastics/films, combining anti-counterfeiting and decorative functions. It is widely used in luxury goods, cosmetic packaging, commemorative coins, and security labels.
Technical Principles
- Ultrafast Laser Processing: High-peak-power lasers create nano-scale physical stripes on material surfaces through ionization, producing rainbow dispersion via light interference and diffraction.
- Customized Optical Design: Dynamic control of laser paths ensures multi-angle visibility of rainbow effects.
- Software Control: Built-in software adjusts optical paths for complex patterns and enables effect transfer to other materials.
Specification
| Technical Parameters | |
| Laser output average Power | 2500W |
| Laser wavelength | 1060 nm |
| Laser repetition frequency | 1-1000 KHZ |
| Peak power stability | <5%rms |
| Average power stability | <1%rms |
| Beam quality | M2≤1.2 |
| Marking area | 150mm ×150mm(Can be customized) |
| Minimum line width | 0.01 mm |
| Marking speed | ≤3000 mm/s |
| Visual customization system | Professional CCD map alignment system |
| Cooling method | Water cooling |
| Operating environment temperature | 15-35℃ |
| input fle formats | PLT, DXF and other formats |
Applications
-

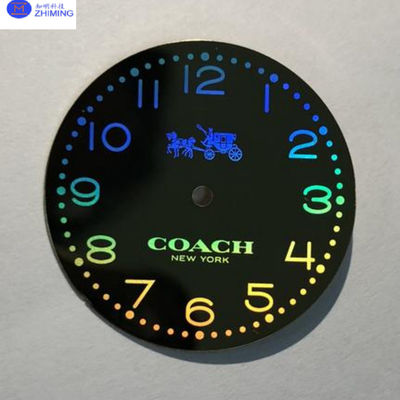

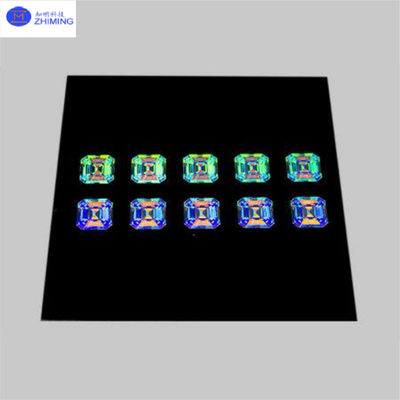

Security Labels: Anti-counterfeiting tags for pharmaceuticals, cosmetics, tobacco/alcohol packaging, and holographic reliefs on currency/coins.
-

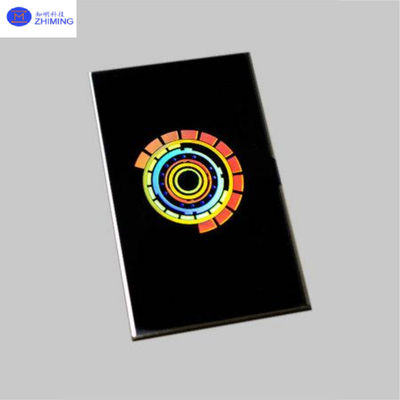

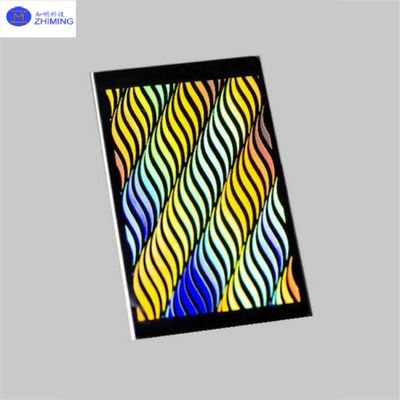

Luxury Packaging: Rainbow laser decoration on stainless steel/PVD cosmetic cases and jewelry tags.
-
Industrial Materials: Nano-structure processing on solar panels to reduce reflection and improve efficiency.
-
Transfer Printing: Rainbow effects transferred to plastics, precious metals, and films via molds.
Q&A
Q1: How does the rainbow effect prevent counterfeiting?
A1: Nano-scale physical stripes created by ultrafast lasers cannot be replicated by conventional methods. The color-shifting effect varies with viewing angles, making duplication extremely difficult.
Q2: What materials are compatible?
A2: Direct processing materials: stainless steel, mold steel, nickel, chrome, PVD coatings. Transfer materials: plastics, jewelry, precious metals, films.
Q3: Can anti-counterfeiting solutions be customized?
A3: Yes, including angle-dependent patterns or micro-features embedded in designs for industry-specific needs.
