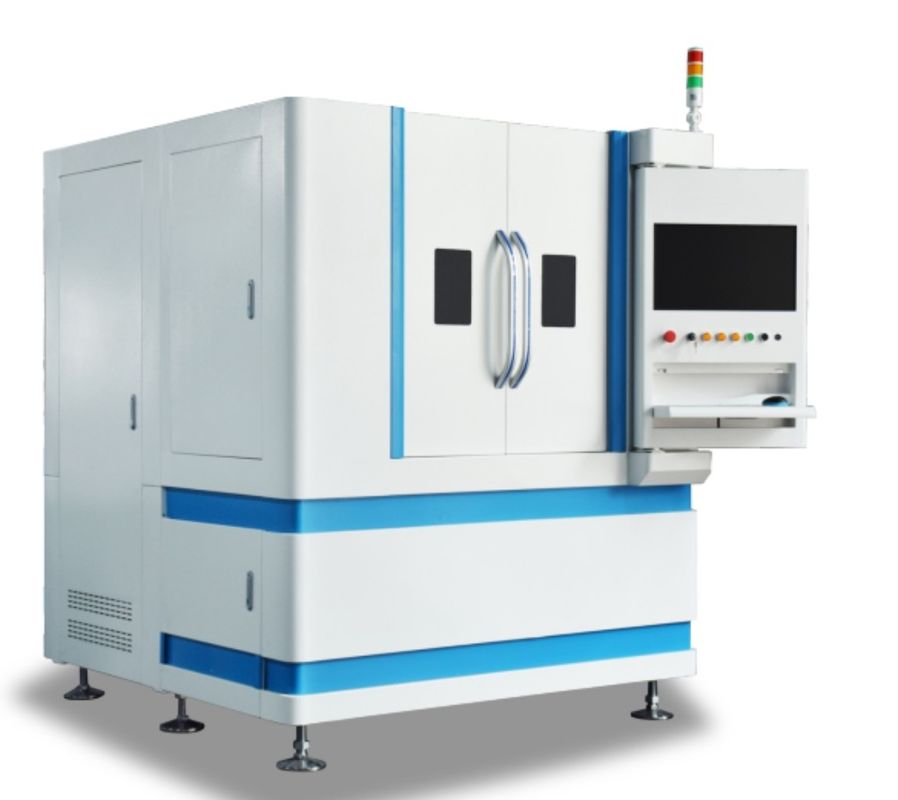

Green Light Nanosecond Glass Laser Drilling Machine Sapphire Quartz Glass BF33
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | undetermined |
| Packaging Details: | foamed plastic＋carton |
| Delivery Time: | 1-2 months |
| Payment Terms: | T/T |
| Supply Ability: | 1pcs/month |
|
Detail Information |
|||
| Laser Wavelength: | Operates At 532 Nm (green Light) | Pulse Duration: | Uses Nanosecond Pulse Durations (typically 5–10 Ns) |
|---|---|---|---|
| Drilling Precision: | Capable Of Producing Micro-holes As Small As 20 µm In Diameter | Heat-Affected Zone (HAZ): | Extremely Low Heat-affected Zone |
| Highlight: | Sapphire Glass Laser Drilling Machine,Quartz Glass Laser Drilling Machine,BF33 Glass Laser Drilling Machine |
||
Product Description
Green Light Nanosecondd Glass Laser Drilling Machine sapphire opticalglass quartz Platform size 600*900(mm) operate at 532 nm
Abstract of Green Light Nanosecond Glass Laser Drilling Machine
The Infrared Nanosecond Glass Laser Drilling Machine utilizes green laser technology with nanosecond pulse duration to perform high-precision drilling on glass and other transparent materials. The machine is designed to create micro-holes with minimal thermal impact, ensuring clean edges and high-quality results without damaging the surrounding material. This makes it ideal for a range of applications in microelectronics, sensors, and other precision industries.
The attribute of Green Light Nanosecond Glass Laser Drilling Machine
Platform size can be customized, flexible use;
Special-shapeddrilling is simple and convenient,one molding;
The drilling edge is small and the processing surface is flat;
The production of various specifications seamless witching,simple operation,easy to use;
Low operating cost,high yield, no consumables, no pollution;
Will not scratch the surface of the product.
| Attribute | Description |
| Laser Wavelength | 532 nm (green light), ideal for high absorption in glass materials. |
| Pulse Duration | Nanosecond (5–10 ns), providing fast, high-precision drilling with minimal heat impact. |
| Drilling Precision | Micro-holes as small as 20 µm in diameter, suitable for fine microelectronics and sensors. |
| Heat-Affected Zone (HAZ) | Extremely low HAZ, ensuring clean cuts without thermal damage to surrounding material. |
| Drilling Speed | High-speed drilling with rapid pulse repetition rates, optimizing productivity in industrial applications. |
| Material Compatibility | suchasordinaryglass,opticalglass,quartz,sapphire,reinforced glass, filter, mirrorand other shape processing |
| Automation | Computerized control systems for precise alignment and repeatable accuracy in mass production. |
| Applications | Ideal for microelectronics, sensors, medical devices, optical components, and glass substrates. |
| Non-Contact Process | Laser-based, eliminating physical tool wear and reducing maintenance needs. |
| Edge Quality | Produces smooth, clean edges with minimal debris, ensuring high-quality results. |
| Flexibility | Capable of processing various glass thicknesses, from thin to thick, across diverse industries. |
The Application of Green Light Nanosecond Glass Laser Drilling Machine
1.Consumer Electronics
Drilling speaker holes, microphone holes, and camera holes in smartphone cover glass
Processing glass components for tablets, smartwatches, and other wearable devices
Structuring glass panels for sensors or display integration
2. Semiconductor and Optoelectronics
Drilling through-glass vias (TGVs) for advanced packaging
Creating holes in quartz wafers and glass substrates for microelectronic components
Micro-holes for optical alignment in photonics devices
3. Medical and Laboratory Devices
Fabricating microfluidic channels and holes in lab-on-a-chip systems
Drilling in medical-grade glass for diagnostic or analytical tools
High-precision openings in capillaries and lab containers
4. Automotive Industry
Hole drilling in HUD (Head-Up Display) panels
Openings in touch control panels made of reinforced glass
Customized micro-structuring for sensors and displays in automotive glass
5. Optical and Precision Instruments
Drilling alignment holes in optical components
Micro-hole processing in lenses, prisms, and waveguides
Precision vent or laser passage holes in scientific glassware

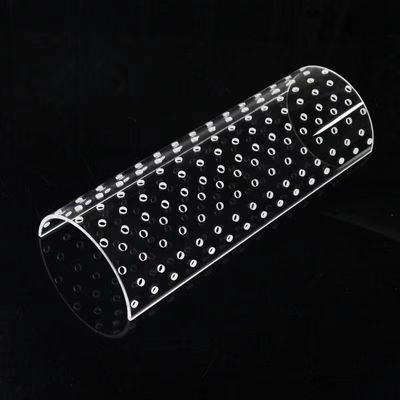

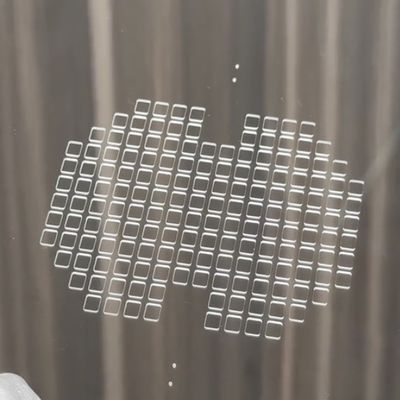

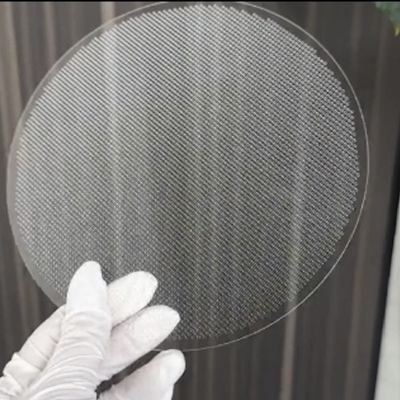

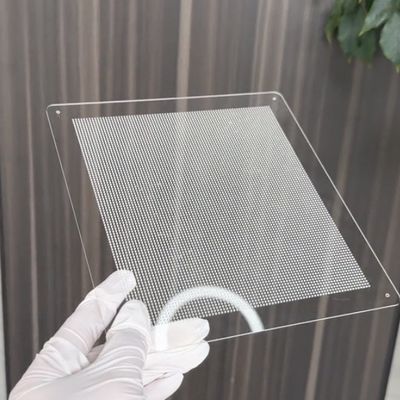

The Physical picture of Glass Laser Drilling Sample
Q&A
Q: Which types of glass materials are most suitable for processing with a Green Light Nanosecond Glass Laser Drilling Machine?
A: Fused Silica/Quartz Glass; Sapphire Glass ;Borosilicate Glass
