Product Details:

Place of Origin: China
Brand Name: ZMSH

Payment & Shipping Terms:

Minimum Order Quantity: 2
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Countertop Volume:: 300*300*150 Positioning Accuracy μm:: +/-5
Repeated Positioning Accuracy μm:: +/-2 Numerical Control Type:: DPSS Nd:YAG
Highlight:

AR silicon carbide lens processing

,

Microjet laser equipment

,

High Precision Microjet Laser Equipment

Product Description

Product Introduction



Microjet laser technology equipment is a combination of laser and high-speed water jet advanced processing technology, its core lies in the use of laser beam focus coupled to high-speed water jet, through the water jet guide laser accurately acting on the surface of the workpiece, so as to achieve efficient and high-precision processing effect. This technology has significant advantages in the field of hard and brittle material processing, and also shows a wide range of application potential in many fields such as semiconductors, aerospace, and medical devices.



Microjet laser technology equipment is mainly composed of laser system, light-water coupling system, high precision machine tool system, pure water/high pressure pump system, visual identification system and light-water electric machine tool control software system. Among them, the laser system adopts solid nanosecond laser with wavelength of 532/1064nm, and achieves high power output through frequency doubling technology. The optical water coupling system transmits the laser beam through the optical fiber and is coupled with the high-speed water jet to achieve the effect of cooling and guiding the laser beam.





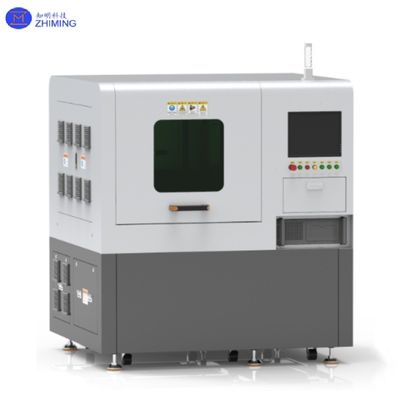

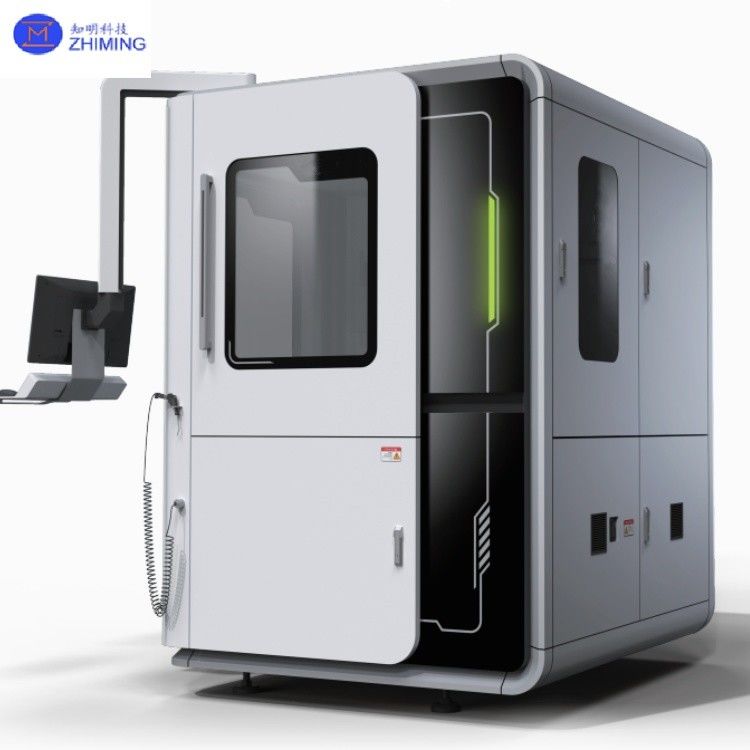

Microjet Laser Equipment High Precision Wafer Slicing AR Silicon Carbide Lens Processing 0Microjet Laser Equipment High Precision Wafer Slicing AR Silicon Carbide Lens Processing 1





Major advantage



The working principle of microjet laser technology is to focus the laser beam into the high-speed water jet, forming a total reflection effect, so that the laser energy is evenly distributed in the inner wall of the water column. When the laser beam reaches the surface of the workpiece, it is guided and cooled by the water jet to achieve precise cutting or machining. This process not only improves machining accuracy, but also effectively reduces material losses and heat-affected areas.





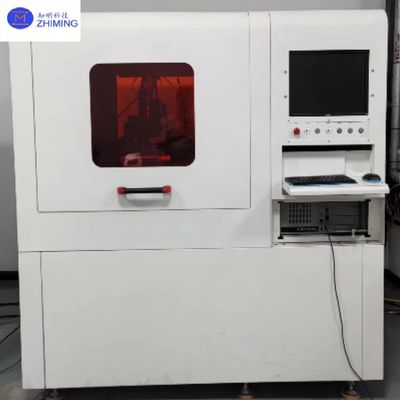

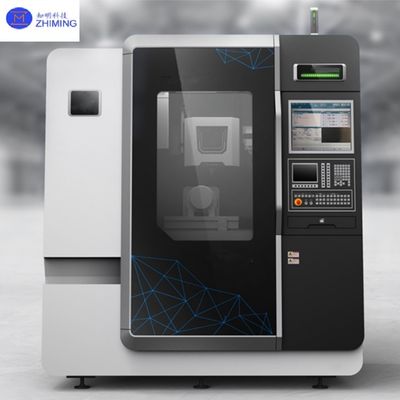

Microjet Laser Equipment High Precision Wafer Slicing AR Silicon Carbide Lens Processing 2





Specifications



Countertop volume 300*300*150 400*400*200
Linear axis XY Linear motor. Linear motor Linear motor. Linear motor
Linear axis Z 150 200
Positioning accuracy μm +/-5 +/-5
Repeated positioning accuracy μm +/-2 +/-2
Acceleration G 1 0.29
Numerical control 3 axis /3+1 axis /3+2 axis 3 axis /3+1 axis /3+2 axis
Numerical control type DPSS Nd:YAG DPSS Nd:YAG
Wavelength nm 532/1064 532/1064
Rated power W 50/100/200 50/100/200
Water jet 40-100 40-100
Nozzle pressure bar 50-100 50-600
Dimensions (machine tool) (width * length * height) mm 1445*1944*2260 1700*1500*2120
Size (control cabinet) (W * L * H) 700*2500*1600 700*2500*1600
Weight (equipment) T 2.5 3
Weight (control cabinet) KG 800 800
Processing capability

Surface roughness Ra≤1.6um

Opening speed ≥1.25mm/s

Circumference cutting ≥6mm/s

Linear cutting speed ≥50mm/s

Surface roughness Ra≤1.2um

Opening speed ≥1.25mm/s

Circumference cutting ≥6mm/s

Linear cutting speed ≥50mm/s



For gallium nitride crystal, ultra-wide band gap semiconductor materials (diamond/Gallium oxide), aerospace special materials, LTCC carbon ceramic substrate, photovoltaic, scintillator crystal and other materials processing.

Note: Processing capacity varies depending on material characteristics





Applications



Third generation semiconductor and aerospace materials processing: used for precision processing of third generation semiconductor materials such as silicon carbide and gallium nitride, as well as complex parts processing of materials such as superalloys and ceramic substrates in the aerospace field.

Medical device parts processing: suitable for high-precision cutting and processing of cardiovascular stents, implants, surgical tools and other medical instruments.

Ingot cutting: Used for efficient cutting of semiconductor materials such as silicon wafers and silicon carbide ingot.

Hard and brittle materials processing: including diamond, silicon nitride and other materials of complex parts processing.



ZMSH service



Customized solutions: Provide personalized equipment design and process optimization according to customer needs.
Technical support and training: Provide equipment operation training and technical support for customers to ensure that customers can use the equipment efficiently.
After-sales service: Provide long-term technical maintenance and spare parts supply service to ensure the stable operation of equipment.
R&d cooperation: Jointly develop new technologies or new processes with customers to promote industrial upgrading.
