Sapphire Prism Al2O3 Ky Method Laser & Optical Communication Customizable Specifications
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 |
|---|---|
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Material: | Al2O3 | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | DSP 60/40 | Tolerance: | ±0.03mm |
| Grade: | Optical Grade | Transmittance: | ＞70％ At 200nm |
| Highlight: | Al2O3 Kyropoulos method Sapphire prism,Customizable Specifications Sapphire prism |
||
Product Description
Abstract
Synthetic sapphire prisms are manufactured using high-purity aluminum oxide (α-Al₂O₃) through advanced crystal growth techniques such as the Kyropoulos method.
Key advantages include:
- Exceptional Physical Properties:
Mohs hardness of 9, second only to diamond, with a dry friction coefficient of 0.14 against steel.
High-temperature resistance (melting point: 2050°C) and chemical stability, resistant to acid/alkali corrosion.
- Superior Optical Performance:
Broadband transmittance over 90% across 170nm–6000nm, with a refractive index of 1.76, suitable for UV, visible, and IR optical systems.
Surface roughness as low as 0.1μm, enabling precise beam control.
- Customizable Specifications:
Customizable sizes (5–300mm edge length) with tight tolerances (±0.02mm linear, 20''–10' angular).
Special designs: planar/curved surfaces, oil grooves, or drilled holes.
Company Introduction
Our company, ZMSH, has been a prominent player in the semiconductor industry for over a decade, boasting a professional team of factory experts and sales personnel. We specialize in providing customized sapphire wafer solutions, offering both tailored designs and OEM services to meet diverse client needs. At ZMSH, we are committed to delivering products that excel in both price and quality, ensuring customer satisfaction at every stage. We invite you to contact us for more information or to discuss your specific requirements.
Sapphire Prism Tecnical Parameters
| Name | optical glass |
| Material | Sapphire,quartz |
| DiameterTolerance | +/-0.03 mm |
| ThicknessTolerance | +/-0.01 mm |
| Cler Aperture | over 90% |
| Flatness | ^/4 @632.8nm |
| Surface Quality | 80/50~10/5 scratch and dig |
| Transmission | above 92% |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Focal Length Tolerance | +/-2% |
| Back Focal Length Tolerance | +/-2% |
| Coating | available |
| Usage | opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,polarizer,electronic instrument,led etc. |
Sapphire Prism Applications
- Laser & Optical Communication:
- Beam shaping for lasers, optical path transmission in fiber communication, stable under high-power laser environments.
- Medical & Precision Instruments:
- Optical windows for endoscopes and microscopes, ensuring high-definition imaging; bearings and contacts for precision measurement devices.
- Aerospace & Defense:
- Satellite optics, high-intensity laser windows, and infrared military equipment, durable in extreme conditions.
- Consumer Electronics:
- Camera lens covers for smartphones, smartwatch screens, combining aesthetics with scratch resistance.
- Industrial Measurement:
- Corrosion-resistant components for flow meters and code readers, extending equipment lifespan.

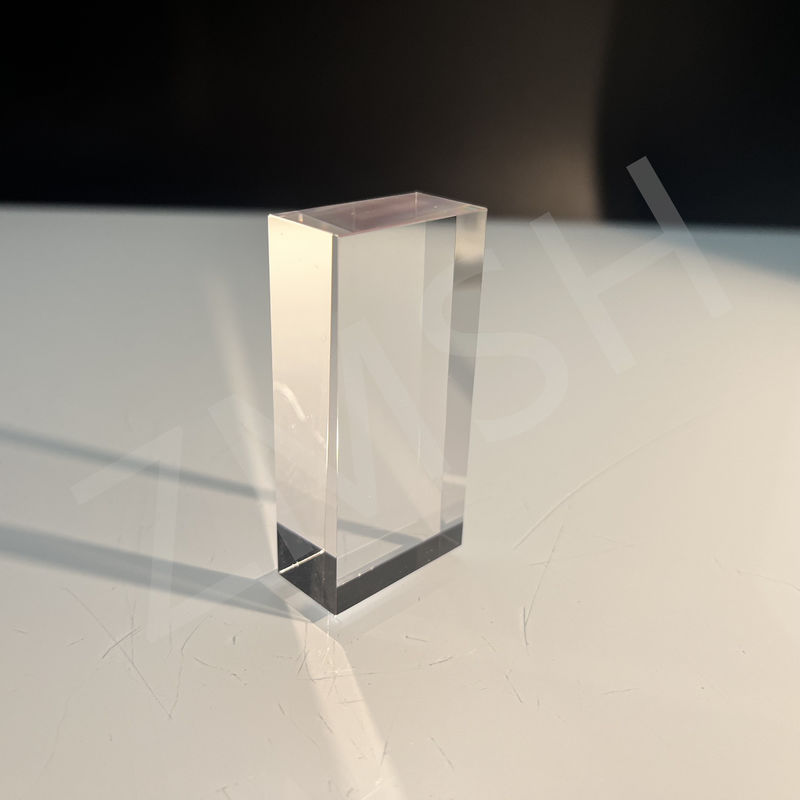

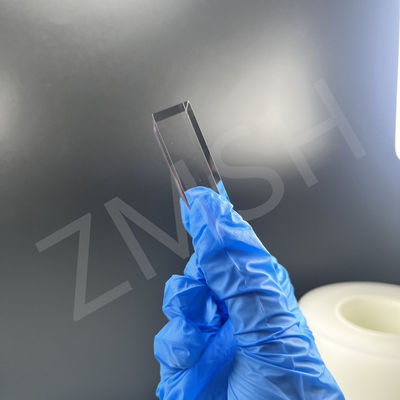

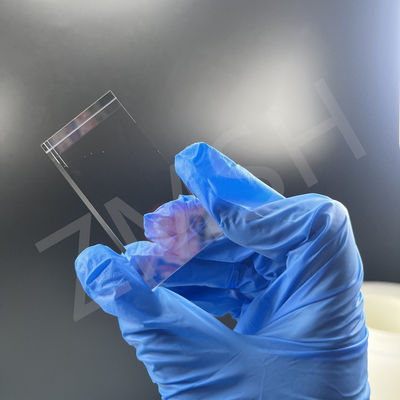

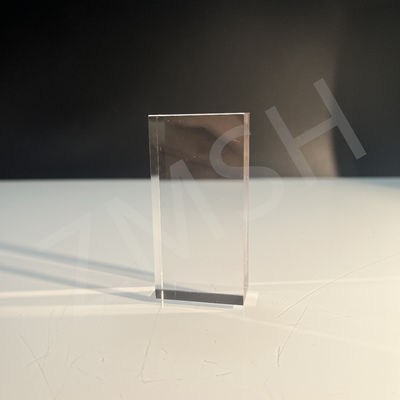

Product Display - ZMSH
Sapphire Prism FAQ
Q: How do sapphire prisms perform optically compared to glass prisms?
A: Broadband transparency: Transmit >90% light across a wide spectral range (170nm–6000nm), covering UV, visible, and infrared wavelengths.
High refractive index: 1.76 refractive index enables precise light bending and beam control, critical for lasers and imaging systems.
Surface precision: Achieve surface roughness ≤0.1μm (or even 0.012μm with polishing), minimizing light scattering.
Q: Can sapphire prisms be customized for specific needs?
A: Yes. We can offer :
Size flexibility: Prisms with edge lengths from 5mm to 300mm, with tight tolerances (±0.02mm linear, 20'' angular);
Special designs: Options include curved surfaces, drilled holes, or oil grooves;
Coatings: Anti-reflective (AR) or scratch-resistant coatings to enhance performance.
Q: How to maintain sapphire prisms?
A: Cleaning: Use lint-free cloths and mild solvents (e.g., isopropyl alcohol) to avoid surface contamination.
Handling: Avoid direct contact with harder materials (e.g., diamond tools) or abrasive surfaces.
Storage: Keep in protective cases to prevent accidental impacts.
