Gallium Nitride On Silicon Wafer GaN-on-Si 2 Inch 4 Inch 6 Inch 8 Inch For CMOS Technology

Gallium Nitride on Silicon wafer GaN-on-Si 2,4,6,8inch for CMOS technology

Gallium Nitride on Silicon wafer's abstract

Gallium Nitride on Silicon (GaN-on-Si) represents a promising advancement in semiconductor technology, combining the advantageous properties of gallium nitride (GaN) with the cost-effective substrate of silicon. This abstract explores the key characteristics and potential applications of GaN-on-Si wafers in the semiconductor industry.

GaN-on-Si wafers leverage GaN's superior thermal and electrical properties, which surpass traditional silicon devices in terms of performance and efficiency. The integration of GaN on silicon substrates offers enhanced thermal conductivity compared to other substrates like sapphire, contributing to improved power handling capabilities and reduced heat dissipation in high-power applications.

The selection of semiconductor materials plays a critical role in achieving reliable and efficient electronic devices. Silicon, known for its stability and reliability, has long dominated the industry but faces challenges in meeting the increasingly stringent demands of modern electronics. GaN-on-Si emerges as a viable alternative, capable of addressing these challenges with its high breakdown voltage, high electron mobility, and compatibility with existing silicon fabrication processes.

Simulation and analysis tools are crucial in assessing the electrical and thermal properties of GaN-on-Si wafers, aiding designers in optimizing device performance and efficiency. This abstract emphasizes the importance of material selection in semiconductor manufacturing, highlighting GaN-on-Si as a promising candidate for next-generation power electronics, LED lighting, and wireless communication devices.

In conclusion, GaN-on-Si wafers offer a compelling synergy of GaN's performance advantages and silicon's manufacturing scalability, paving the way for enhanced semiconductor devices capable of meeting the evolving demands of modern technology applications.

Gallium Nitride on Silicon wafer's properties

Properties of Gallium Nitride on Silicon (GaN-on-Si) wafers include:

1. Electrical Properties:

   • High electron mobility: GaN-on-Si exhibits high electron mobility, allowing for faster switching speeds and lower on-resistance in power devices.
   • High breakdown voltage: GaN-on-Si devices can withstand higher voltages compared to traditional silicon devices, making them suitable for high-power applications.

2. Thermal Properties:

   • Enhanced thermal conductivity: Silicon substrates provide better thermal conductivity compared to sapphire, improving heat dissipation and reliability of GaN-on-Si devices.
   • Reduced thermal resistance: Lower thermal resistance allows for efficient heat management, crucial for maintaining device performance and longevity under high-power operation.

3. Material Compatibility and Integration:

   • Compatibility with silicon fabrication processes: GaN-on-Si wafers can be manufactured using existing silicon processing facilities, enabling cost-effective production and integration into mainstream semiconductor manufacturing.
   • Integration capability: The ability to integrate GaN devices with silicon-based circuits enhances design flexibility and enables the development of complex integrated systems.

4. Optical and Physical Properties:

   • Transparency to visible light: GaN-on-Si materials can be transparent in the visible spectrum, making them suitable for optoelectronic applications such as LEDs and photodetectors.
   • Mechanical stability: GaN-on-Si wafers offer mechanical stability, crucial for maintaining device integrity and performance in various operating conditions.

Gallium Nitride on Silicon wafer's application

1. Power Electronics: GaN-on-Si wafers are used in high-frequency and high-power devices such as RF amplifiers, power converters, and power supplies. They offer higher efficiency, reduced size, and improved thermal management compared to traditional silicon-based devices.

2. LED Lighting: GaN-on-Si materials are utilized in the manufacture of LEDs (Light Emitting Diodes) for general lighting, automotive lighting, and displays. They provide enhanced brightness, energy efficiency, and longer lifespan compared to conventional LEDs.

3. Wireless Communication: GaN-on-Si devices are employed in high-speed wireless communication systems, including 5G networks and radar applications. Their high-frequency performance and low noise characteristics make them suitable for these demanding applications.

4. Solar Power: GaN-on-Si technology is explored for use in photovoltaic (PV) solar cells to improve efficiency and reduce costs associated with energy conversion and storage.

5. Consumer Electronics: GaN-on-Si is integrated into various consumer electronic devices such as power adapters, chargers, and inverters due to their compact size, high efficiency, and fast charging capabilities.

6. Automotive: GaN-on-Si wafers are gaining traction in automotive applications, including electric vehicles (EVs), where they are used in power electronics for efficient energy conversion and management.

7. Medical Equipment: GaN-on-Si technology is used in medical devices for its reliability, efficiency, and ability to handle high-frequency signals, contributing to advancements in diagnostic imaging and therapeutic equipment.

8. Industrial Applications: GaN-on-Si devices find applications in industrial automation, robotics, and power supplies, where high efficiency and reliability are critical.

Overall, GaN-on-Si wafers offer a versatile platform for various high-performance semiconductor applications, contributing to advancements in energy efficiency, communication technology, and consumer electronics.

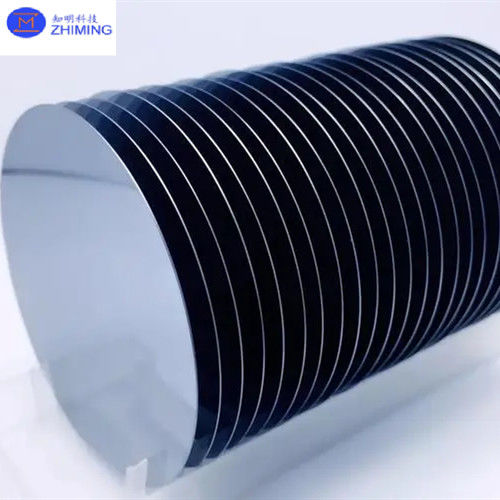

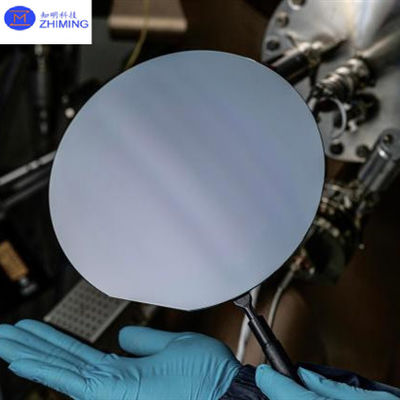

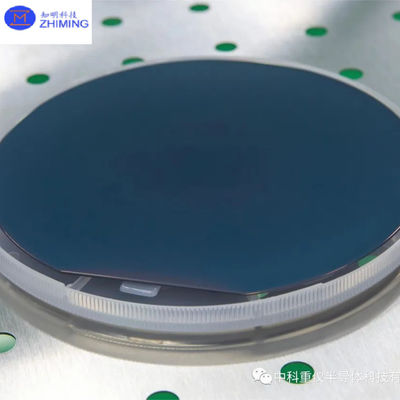

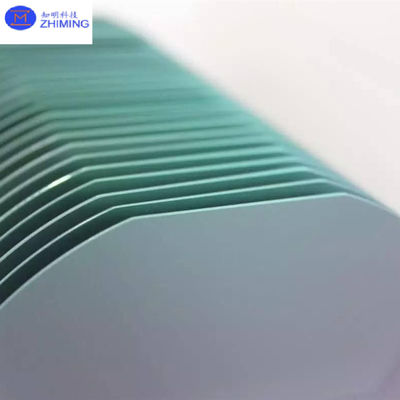

ZMSH Gallium Nitride on Silicon wafer's photo

Gallium Nitride on Silicon wafer's Q&A

What is gallium nitride on Si?

Gallium Nitride on Silicon (GaN-on-Si) refers to a semiconductor technology where gallium nitride (GaN) is grown on a silicon (Si) substrate. This integration combines the unique properties of both materials to achieve enhanced performance in various electronic and optoelectronic applications.

Key Points about GaN-on-Si:

1. Material Combination: GaN is known for its wide bandgap and high electron mobility, making it suitable for high-power and high-frequency applications. Silicon, on the other hand, provides a cost-effective substrate with established manufacturing processes.

2. Advantages: Integrating GaN on silicon substrates offers several advantages:

   • Cost Efficiency: Leveraging existing silicon manufacturing facilities reduces production costs compared to using sapphire or silicon carbide substrates.
   • Thermal Management: Silicon substrates have better thermal conductivity compared to other materials, aiding in heat dissipation from GaN devices.
   • Scalability: GaN-on-Si technology can potentially benefit from silicon's scalability and infrastructure in the semiconductor industry.

What are the advantages of gallium nitride over silicon?

Gallium Nitride (GaN) offers several advantages over silicon (Si), especially in certain high-performance applications:

1. Wide Bandgap: GaN has a wider bandgap (approximately 3.4 eV) compared to silicon (1.1 eV). This characteristic allows GaN devices to operate at higher voltages and temperatures without significant leakage currents, making them suitable for high-power applications.

2. High Electron Mobility: GaN exhibits higher electron mobility than silicon, which means electrons can move faster through the material. This property results in faster switching speeds and lower on-resistance in electronic devices, leading to higher efficiency and reduced power losses.

3. High Breakdown Voltage: GaN devices can withstand higher breakdown voltages compared to silicon. This is particularly advantageous in power electronics applications where devices need to handle high voltages and currents.

4. High-Frequency Operation: Due to its high electron mobility and low parasitic capacitances, GaN devices can operate at much higher frequencies than silicon-based devices. This makes GaN ideal for applications in RF amplifiers, high-frequency power converters, and wireless communication systems (e.g., 5G networks).

5. Miniaturization and Efficiency: GaN devices typically exhibit lower losses and higher efficiency compared to silicon devices, even at smaller sizes. This allows for the development of compact, lightweight, and energy-efficient electronic and power systems.

6. Thermal Management: While silicon has good thermal conductivity, GaN can dissipate heat more effectively, especially when integrated with suitable substrates like silicon carbide (SiC) or even silicon itself in GaN-on-Si technology.

7. Integration with Silicon Technology: GaN can be grown on silicon substrates, leveraging existing silicon manufacturing infrastructure. This integration potentially reduces production costs and enhances scalability for large-scale semiconductor manufacturing.

8. Applications: GaN is particularly favored in applications such as power electronics, LED lighting, RF/microwave devices, and automotive electronics, where its unique combination of properties enables superior performance, efficiency, and reliability.

In summary, Gallium Nitride (GaN) offers several distinct advantages over silicon (Si), particularly in high-power, high-frequency, and efficiency-critical applications, driving its adoption in various cutting-edge technologies.
