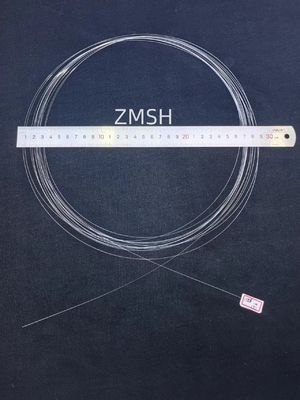

25um 65um Sapphire Fiber High Transmission Rate Extremely Fast Speed
Product Details:
| Place of Origin: | PRC |
| Brand Name: | ZMSH |
| Model Number: | Sapphire fiber |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1M |
|---|---|
| Packaging Details: | contact us |
|
Detail Information |
|||
| Core Cladding Structure: | Typically A Single Material, No Cladding | Refractive Index: | Typically Around 1.76 (at 589 Nm) |
|---|---|---|---|
| Chemical Stability: | Highly Resistant To Most Corrosive Environments | Operating Temperature Range: | Up To 2,000°C Or Higher |
| Melting Point: | Approximately 2,030°C | Diameter Tolerance: | ≤3% |
| Name: | Sapphire Fiber | Length: | 30m |
| High Light: | High Transmission Rate Sapphire Fiber,25um Sapphire Fiber |
||
Product Description
Product Description:
Solving the multimode issue of sapphire fiber is of great significance for improving the performance and extending the application fields of sapphire fiber-based high-temperature sensors. Here, a mode field matching fusion splicing method between sapphire fiber and single-mode fiber was reported to obtain a quasi-single mode reflection spectrum from sapphire fiber Bragg grating (SFBG). By optimizing the splicing parameters, an overlapped double conical (ODC) splicing structure between sapphire fiber and single-mode fiber could be formed.
The mode field matching between sapphire fiber and single-mode fiber could be well achieved by this structure, realizing the suppression of high-order modes in the reflection spectrum. A quasi-single mode reflection spectrum from SFBG was obtained based on this method with a full-width at half-maximum of 0.3 nm and a signal-to-noise ratio (SNR) of 8 dB. Further improvement has been made on this fusion splicing method by using pretapered single-mode fiber, and the SNR reached 14 dB. In addition, we combined our SFBG sensor with a commercial single-mode interrogator and achieved real-time temperature monitoring up to 1160 °C.
Features:
- Chemical Resistance: Unaffected by most corrosive chemicals, making it ideal for use in aggressive environments.
- High-Temperature Stability: Capable of operating in environments exceeding 2000°C without structural degradation.
- Loss@1550nm: 1.59dB/m
- Chemical Stability: Highly Resistant To Most Corrosive Environments
- Diameter tolerance: ≤3%
- Diameter: 25-500um
- Wide Transparency Window: Sapphire fiber Exhibits good transparency from the ultraviolet to mid-infrared spectrum.
Technical Parameters:
| Parameter | Value |
|---|---|
| Name | Sapphire Fiber |
| Refractive Index | Typically Around 1.76 (at 589 Nm) |
| Diameter tolerance | ≤3% |
| Mechanical Strength | High Tensile And Bending Strength |
| Diameter | 25-500um |
| Loss@1550nm | 1.59dB/m |
| Core Cladding Structure | Typically A Single Material, No Cladding |
| Length | 30m |
| Biocompatibility | Often Used In Medical Applications |
| Radiation Resistance | Suitable For High Radiation Environments |
Applications:
Sapphire Fiber is a unique type of optical fiber material made from single-crystal α-alumina (Al2O3). It exhibits excellent performance under high temperatures, harsh chemical environments, and high radiation conditions, making it an ideal choice for various industrial applications, especially in environments where conventional optical fibers fall short.
Key features of Sapphire Fiber include:
High-temperature stability: Sapphire Fiber can operate stably for prolonged periods at temperatures exceeding 2000°C without compromising its structure or optical properties.
Chemical stability: It is highly resistant to most chemical substances and corrosive environments.
Mechanical strength: It boasts high tensile and bending strengths.
Broad transparency range: Sapphire Fiber has good transparency across a wide wavelength range, from ultraviolet to mid-infrared.
High radiation resistance: Suitable for environments with high radiation, such as nuclear power plants or space applications.
Given these characteristics, Sapphire Fiber holds great potential in various applications, including high-temperature sensing, medical imaging, military, and space applications.
ZMSH Sapphire fiber is ideal for industries where chemical stability and biocompatibility are important such as medical applications. It has a great loss@1550nm, strength of extension, and core cladding structure. It can be used for making sapphire windows and sapphire fiber. It is highly resistant to most corrosive environments, making it an ideal choice for medical applications.
Customization:
Model Number: Sapphire fiber
Place of Origin: PRC
Diameter tolerance: ≤3%
Melting Point: Approximately 2,030°C
Core Cladding Structure: Typically A Single Material, No Cladding
Radiation Resistance: Suitable For High Radiation Environments
Name: Sapphire Fiber
Available Sizes: 2inch, 4inch, 6inch
Crystal Plane: C-plane M-plane
Support and Services:
Sapphire fiber provides technical support and services to its customers. Our technical support team is available to answer any questions you may have and help you troubleshoot your system. We also offer a wide range of services, from consulting to training, to ensure you get the most out of your fiber experience.
Our technical support team is available 24/7, and can be reached via our online contact form, email, or telephone. Our team of experts is dedicated to helping you get the most out of your fiber experience, and will be on hand to answer any questions you may have. We also provide onsite training and consulting services, and can tailor our services to fit the specific needs of your company.
At Sapphire fiber, we are committed to providing the best technical support and services possible. We strive to make sure you have the best experience possible with our products, and will work with you to ensure your success.
Packing and Shipping:
Sapphire fiber Packaging and Shipping
- We package each Sapphire fiber individually in an anti-static bag to protect against static.
- We use a double walled corrugated cardboard box for shipping.
- We use bubble wrap to ensure that Sapphire fiber is not damaged while in transport.
- We ship each Sapphire fiber with a tracking number to ensure that it is delivered safely.
FAQ:
A: Sapphire fiber is a high-performance fiberproduced by ZMSH, with model number Sapphire fiber. It is made in PRC.
A: Sapphire fiber is characterized by its high strength, high temperature resistance, excellent thermal conductivity and low thermal expansion coefficient.
A: Sapphire fiber is widely used in electronic devices and optoelectronic components, such as LEDs, laser diodes, transistors, integrated circuits and so on.
A: The service life of Sapphire fiber depends on the application environment and usage. Generally, it can last for a long time.
A: Sapphire fiber is usually packed in vacuum bags or plastic boxes with foam or other protective materials. The packaging is customized according to customer request.
