Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3

Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3

Product Details:

Place of Origin: CHINA
Brand Name: ZMKJ
Model Number: 12inch Dia300x1.0mmt

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: usd1500/pc
Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
Delivery Time: 21days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Substrate Grade Orientation: C-AXIS/A-AXIS/M-AXIS/M-AXIS
Thickness: 0.9~1.0mm Surface: DSP/SSP
TTV: <10um(other TTV Is Ok) BOW: <30um(other BOW Is Ok)
Warp: <30um(other Warp Is Ok) Package: 100 Grade Cleaning Room By Single Vacuum Package
Customize: Acceptable
High Light:

1.0mm Sapphire Wafers Substrate

,

Dsp C-Plane Single Crystal

,

99.999% Al2O3 Sapphire Substrate

Product Description

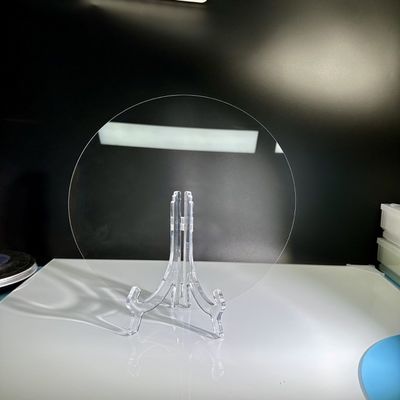

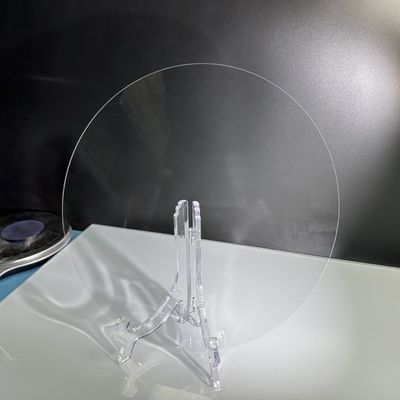

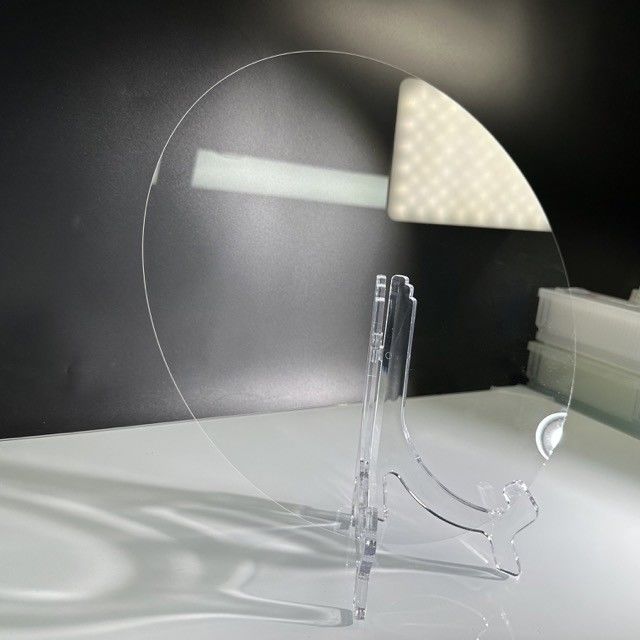

12Inch 300mm Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3



Sapphire wafers are known for their exceptional strength and durability in harsh environments, making them highly desirable for a wide range of applications. In fact, sapphire is one of the hardest and most scratch-resistant materials available, with a Mohs hardness of 9, second only to diamond.

In comparison to other materials, sapphire wafers are much stronger and more durable than most metals, plastics, and glasses, particularly in high-temperature and high-pressure environments. Sapphire can withstand temperatures up to 2000°C and has a thermal conductivity that is three times higher than that of stainless steel, which makes it particularly useful in high-temperature applications.

Furthermore, sapphire is highly resistant to corrosion and chemical attack, making it well-suited for use in harsh chemical environments. It is also highly resistant to radiation damage and has excellent optical properties, making it ideal for use in high-energy physics experiments and space applications.

Overall, sapphire's exceptional strength, durability, and resistance to harsh environments make it a highly attractive material for a wide range of industrial, scientific, and defense applications.

The Manufacturing process of 300mm sapphire substrate:

  1. Crystal growth: The Sapphire material is grown using the KY or the CZ method.
  2. Cutting: The sapphire crystal is cut into thin wafers using a diamond saw.
  3. Grinding and polishing: The wafer is ground and polished to achieve a smooth and flat surface.
  4. Cleaning: The wafer is cleaned using a combination of chemicals and ultrasonic rinsing.
  5. Drying: The wafer is dried using a spin dryer or a Nitrogen gun.Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 0

The Applications of 12inch Sapphire wafer:

Sapphire wafers are commonly used in the semiconductor industry for the production of high-performance electronic devices, such as LEDs, power electronics, and microprocessors. They are also used in the manufacture of high-precision optical components, such as lenses, windows, and mirrors, due to their excellent optical properties and high thermal conductivity. Additionally, 12inch 300mm Sapphire wafer have applications in the aerospace and defense industries, where they are used for their high strength and durability in harsh environments.

The Detail for 12inch C-axis wafers

Size 12inch DSP-1.0-C-Sapphire
Material KY Sapphire Al2O3 single crystal without bubble;color ;
Orientation C-cut,+/-0.3°;
Diameter 300 +/-0.2mm ;
Thickness 900~1000 ± 25 um ;
OF Flat Notch at A-axis;
Surface DSP/SSP Epi-ready Polished ;
TTV <= 20um
BOW <= 30um
Warp <= 45 um

Front Surface Roughness (Ra) Ra

Front Surface Roughness (Ra) Ra

<= 0.3 nm;

= 0.3 +/-0.2um

Edge from 1mm



Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 1Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 2Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 3


Other Related Products

Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 4Thickness 1.0mm Sapphire Wafers Substrate Ssp Dsp C-Plane Single Crystal 99.999% Al2O3 5


  Onsite engineers & master optician
  10+ years of expertise in sapphire & exotic materials manufacturing
  ISO 9001:2008 Certified
  Can Customzied make many Difficult and complex sapphire parts
  State-of-the-art manufacturing equipment & measurement capabilities
  Cost saving overseas sourcing (for non-ITAR applications only)



Packing & Delivery:

Packing Details : Packing, BOX,CARTONS

Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.



FAQ:


1. Q: Where is your company located? How can I visit there?
A: Our factory is located in  Wuxi City, Jiangsu Province, China.
2. Q: Can I get sample and how long will it take?
A:Yes. We can supply sample. And you need to pay for the sample and courier. About 7days after receiving the payment, we will send it out.
3. Q: What's the MOQ?
A: Our MOQ is 25 pieace for this size.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
6. Q: What is the payment terms?
A:100% T/T

If you have another question, pls feel free to contact us by E-mail or Tel.
