Precision 50.8mm 2inch 0.1mm 0.43mm Thickness Sapphire Wafer Orientation A-Plane M-Plane
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Certification: | ROHS |
| Model Number: | Sapphire wafer substrate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 |
|---|---|
| Price: | usd10/pc |
| Packaging Details: | 25 wafers in one cassette |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 50000+pcs per month |
|
Detail Information |
|||
| Name: | Sapphire Substrate | Diameter: | 50.8mm± 0.1mm |
|---|---|---|---|
| Surface Roughness: | Ra<0.3nm | Thickness: | 0.1-2mm |
| Package: | 25 Wafers In One Cassette | Bow: | -10 μm ≤ BOW ≤ 0 |
| Material: | Al2O3 99.999% | TTV: | <10μm |
| High Light: | 0.1mm Sapphire Wafer,A-Plane Sapphire Wafer,Precision Sapphire Substrate |
||
Product Description
High Precision 50.8mm 2inch 0.1mm 0.43mm Thickness Quality Sapphire Wafer Orientation A-Plane M-Plane
Product Description:
Sapphire Substrate is a high-precision product for different size of sapphire substrate, including 2inch, 4inch and 6inch. It has clear aperture of over 90%, surface roughness of Ra less than 0.5nm, TTV of less than 5μm, perpendicularity of 3 arc sec and surface orientation of ±0.5°. It is available in both C-plane and M-plane, and A-plane is optional. Sapphire Substrate is ideal for industrial, medical and other applications.
Features:
- Product Name: Sapphire Substrate
- Flatness: λ/10@633nm
- Parallelism: 3 Arc Sec
- Material: Al2O3 99.999%
- Thickness: 0.5-2mm
- TTV: <5μm
- Features: C-plane and M-plane sapphire windows with excellent optical quality and superior sapphire windows
Applications:
The ZMSH Sapphire Substrate is a perfect choice for those who need high quality 2inch, 4inch and 6inch sapphire windows, sapphire wafers and sapphire substrates. It is made of Al2O3 99.999%, with a surface orientation of ±0.5°, a surface roughness of Ra<0.5nm, a TTV of <5μm and a parallelism of 3 arc sec. It is available in two different types, C-plane and M-plane, for various applications. It is widely used in the fields of optoelectronics, photovoltaics, semiconductors, displays, etc. With superior performance, it offers excellent optical transmission, high thermal conductivity and superior mechanical strength. The Sapphire Substrate from ZMSH is a cost-effective solution for your projects.
Technical Parameters:
| Substrate Type | Single Crystal |
|---|---|
| Surface Roughness | Ra<0.5nm |
| Parallelism | 3 Arc Sec |
| TTV | <5μm |
| Perpendicularity | 3 Arc Sec |
| Warp | <20μm |
| Thickness | 0.5-2mm |
| Surface Orientation | ±0.5° |
| Clear Aperture | >90% |
| Bow | <20μm |
| No | (Properties) | (Target) | (Tolerance) | ||||||||||||||||||||||
| 1 | Diameter | 50.8mm | ± 0.1mm | ||||||||||||||||||||||
| 2 | Thickness | 430μm | ±15μm | ||||||||||||||||||||||
| 3 | Surface orientation of C-plane | off C-axis to M0.2° | ± 0.1° | ||||||||||||||||||||||
| 4 | Primary flat length | 16mm | ±11mm | ||||||||||||||||||||||
| 5 | Primary flat orientation | A-plane(11-20) | ±0.1° | ||||||||||||||||||||||
| 6 | Back side Roughness | 0.8~1.2um | |||||||||||||||||||||||
| 7 | Front side Roughness | <0.3nm | |||||||||||||||||||||||
| 8 | Wafer edge | R-type | |||||||||||||||||||||||
| 9 | Total Thickness Variation, TTV | ≤ 10μm(LTV≤5μm,5*5) | |||||||||||||||||||||||
| 10 | SORI | ≤10μm | |||||||||||||||||||||||
| 11 | Bow | -10 μm ≤ BOW ≤ 0 | |||||||||||||||||||||||
| 12 | Laser Mark | N/A | |||||||||||||||||||||||

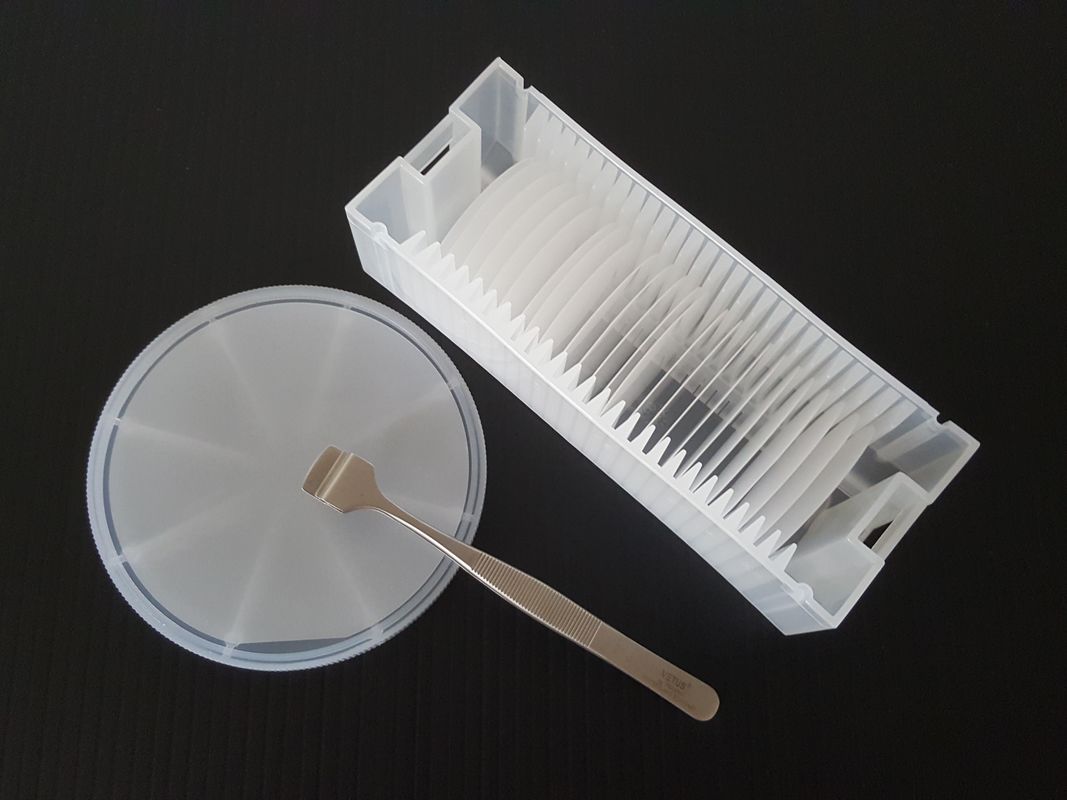

| 13 | Package | 25 wafers in one cassette | |||||||||||||||||||||||
| Trace ability | Wafers shall be traceable with respect to cassette number | ||||||||||||||||||||||||
