Single Crystal Monocrystal Semiconductor Substrate Indium Arsenide InAs Substrate

Single Crystal Monocrystal Semiconductor Substrate Indium Arsenide InAs Substrate

Product Details:

Place of Origin: CHINA
Brand Name: zmkj
Model Number: Indium arsenide (InAs)

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: by case
Packaging Details: single wafer package in 1000-grade cleaning room
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 500pcs
Get Best Price Contact Now

Detail Information

Material: Indium Arsenide (InAs) Monocrystalline Crystal Growth Method: VFG
SIZE: 2-4INCH Thickness: 300-800um
Application: III-V Direct Bandgap Semiconductor Material Surface: Ssp/dsp
Package: Single Wafer Box
High Light:

Monocrystal Semiconductor Substrate

,

Single Crystal Indium Phosphide Wafer

,

Semiconductor InAs Substrate

Product Description

2-4inch Gallium antimonide GaSb Substrate Single Crystal Monocrystal for Semiconductor

Indium arsenide InAs Substrate Single Crystal Monocrystal Semiconductor substrate

Single Crystal Semiconductor Substrate Indium Arsenide InAs wafer





InAs substrate



Product Name Indium arsenide (InAs) crystal
Product Specifications

Growth method: CZ

Crystal Orientation: <100>

Conductive Type: N-type

Doping type: undoped

Carrier concentration: 2 ~ 5E16 / cm 3

Mobility:> 18500cm 2 / VS

Common Specifications Dimensions: dia4 "× 0.45 1sp

Standard Package 1000 clean room, 100 clean bag or single box



InAs Product Specification

Growth
LEC
Diameter
2/2 inch
Thickness
500-625 um
Orientation
<100> / <111> / <110> or others
Off Orientation
Off 2° to 10°
Surface
SSP/DSP
Flat Options
EJ or SEMI. Std .
TTV
<= 10 um
EPD
<= 15000 cm-2
Grade
Epi polished grade / mechanical grade
Package
Package



Electrical and Doping Specification
Dopant available
S / Zn / Undoped
Type of conductivity
N / P
Concentration
1E17 - 5E18 cm-3
Mobility
100 ~ 25000 cm2 / v.s.



InAsSb/In-AsPSb, InNAsSb and other heterojunction materials can be grown on InAs single crystal as the substrate, and an infrared light-emitting device with a wavelength of 2 to 14 μm can be fabricated. The AlGaSb superlattice structure material can also be epitaxially grown by using InAs single crystal substrate. Mid-infrared quantum cascade laser. These infrared devices have good application prospects in the fields of gas monitoring, low-loss fiber communication, etc. In addition, InAs single crystals have high electron mobility and are ideal materials for making Hall devices.



Features:
1. The crystal is grown by liquid-sealed straight-drawing technology (LEC), with mature technology and stable electrical performance.
2, using X-ray directional instrument for precise orientation, the crystal orientation deviation is only ±0.5°
3, the wafer is polished by chemical mechanical polishing (CMP) technology, surface roughness <0.5nm
4, to achieve the "open box ready to use" requirements
5, according to user requirements, special specifications product processing



Single Crystal Monocrystal Semiconductor Substrate Indium Arsenide InAs Substrate 0





crystal dope type



Ion carrier concentration

cm-3

mobility(cm2/V.s) MPD(cm-2) SIZE
InAs un-dope N 5*1016 ³2*104 <5*104

Φ2″×0.5mm

Φ3″×0.5mm

InAs Sn N (5-20) *1017 >2000 <5*104

Φ2″×0.5mm

Φ3″×0.5mm

InAs Zn P (1-20) *1017 100-300 <5*104

Φ2″×0.5mm

Φ3″×0.5mm

InAs S N (1-10)*1017 >2000 <5*104

Φ2″×0.5mm

Φ3″×0.5mm

size (mm) Dia50.8x0.5mm,10×10×0.5mm,10×5×0.5mm can be customized
ra Surface roughness(Ra):<=5A
polish single or doubles side polished

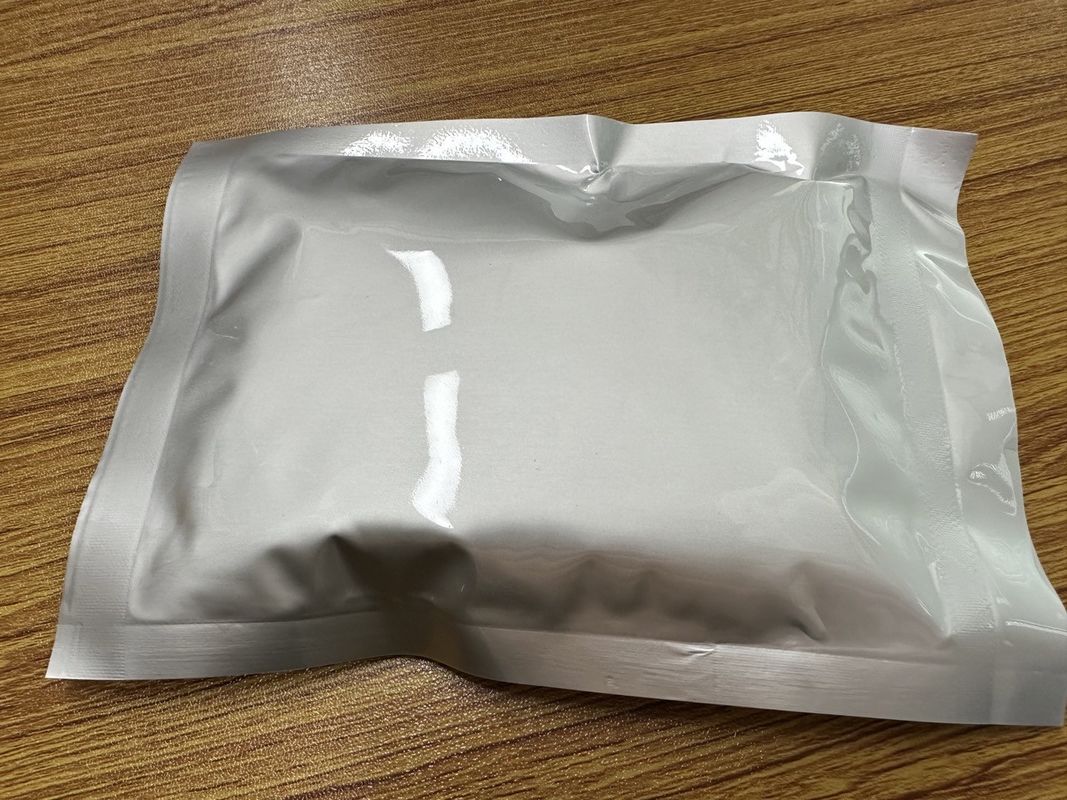

package 100 grade cleaning plastic bag in 1000 cleaning room



Single Crystal Monocrystal Semiconductor Substrate Indium Arsenide InAs Substrate 1

Single Crystal Monocrystal Semiconductor Substrate Indium Arsenide InAs Substrate 2
