2 Inch 3 Inch 4 Inch Sapphire Wafers For Optical Thickness 400um DSP SSP Zero Degree
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZMKJ |
| Model Number: | 2INCH 430um |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25pcs |
|---|---|
| Price: | by case |

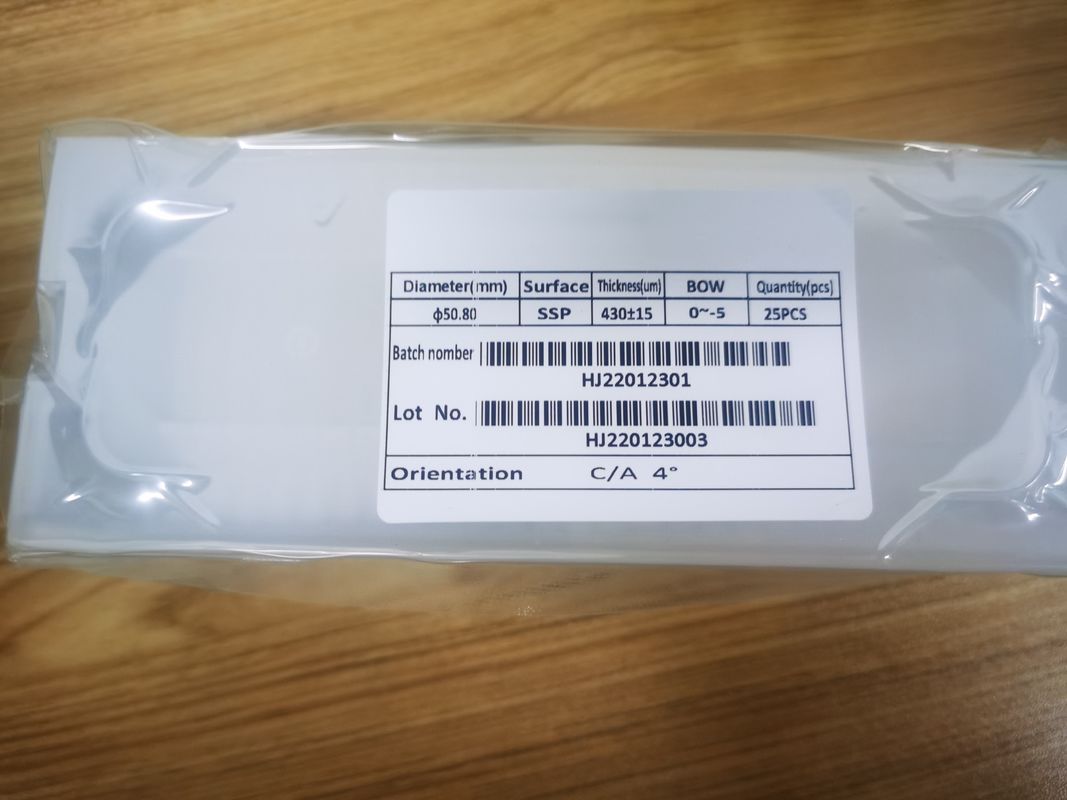

| Packaging Details: | 25pcs cassettle wafer case in 100 grade cleaning bag |
| Delivery Time: | 1 week |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Substrate Grade | Orientation: | C-axis |
|---|---|---|---|
| Thickness: | 100um(other Thickness Ok) | Surface: | SSP OR DSP |
| TTV: | ＜10um | BOW: | ＜15um |
| Warp: | ＜15um | Package: | 100 Grade Cleaning Room By Vacuum Package |
| Customize: | Acceptable | Thickness Tolerannce: | ±15um |
| Application: | Optical Or Test Substrates | ||
| High Light: | 400um Optical Sapphire Wafers,Zero Degree Sapphire Wafers,DSP Sapphire Substrate |
||
Product Description
Special Orientation SSP/ DSP A-axis <11-20> R-axis <1-102> M-axis<10-10> 2inch 3inch 4inch 6inch sapphire substrates wafers for GaN epitaxial growth；0.1mm/100um 2inch sapphire c-axis substrates
TYPICAL CHOICES FOR PART ORIENTATION:
Why Sapphire?
-
Zero Degree: The direction of view is parallel to the optical axis of the crystal
-
90 Degree: The direction of view is perpendicular to the optical axis of the crystal
-
C-Axis: In a rod, the direction along its length. In a window, the direction perpendicular to the face.
-
M-Plane: The plane containing the optic axis (C) and inclined 30 degrees to the A-axis
-
A-Plane: The plane that is perpendicular to the A-axis, containing the C-axis
-
R-Plane: A plane inclined 57.5667 degrees to the optic axis in the same zone as the M-plane.
-
Random: There is no specified relationship between the part and the crystalline orientation. The part is manufactured without concern about orientation.
The Detail for 2inch c-axis wafers
Size: 2 inch DSP-100-R-axis
Material: KY Sapphire Al2O3 single crystal without bubble；color ；
Orientation:C-cut,M-axis off 0.0+/-0.2°；
Diameter: 50.8 +/-0.2mm ；
Thickness:100 ± 15 um ；
OF Flat:16.0 +/- 1.0 mm ； OR round shape
OF orientation: a-axis
Surface: SSP /dsp Epi-ready Polished ；
TTV<= 10um ；BOW<= 20um ； Warp<= 20 um ；
Front Surface Roughness (Ra) Ra <= 0.3 nm ； or double side
Back Surface Roughness (Ra) Ra = 1.0 +/-0.2um ；
Edge: from 1mm ；
|
Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP 4 inch C-plane sapphire wafer SSP/DSP 6 inch C-plane sapphire wafer SSP/DSP |
Special Orientation
A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis Other customized orientation |
|
Customized Size
10x10x0.5mm sapphire wafer 20x20x0.5mm sapphire wafer Ultra thin (100um) 2inch sapphire wafer 8 inch sapphire wafer |
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS 4 inch C-plane PSS |
| 2inch |
DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt SSP C-axis 0.2/0.43mm (DSP＆SSP) A-axis/M-axis/R-axis 0.43mm
|
| 3inch |
DSP/ SSP C-axis 0.43mm/0.5mm
|
| 4Inch |
dsp c-axis 0.4mm/ 0.5mm/1.0mm ssp c-axis 0.5mm/0.65mm/1.0mmt
|
| 6inch |
ssp c-axis 1.0mm/1.3mmm
dsp c-axis 0.65mm/ 0.8mm/1.0mmt
|
Other Related Products
Q: What is your minimum order requirement?
A: MOQ:10 piece
Q: How long will it take to execute my order and delivery it ?
A: confirm the order 1days After confirming the payment and delivery in 5days if on stocks.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer.
Q: HOW about the freight ?
A: we can help you pay for the fee if you don’t have account,
if the order is over 10000usd, we can delivery by CIF.
Q: If you have any other questions,please do not hesitate to contact me.
A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
we are at your side any time~~
