Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter

Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter

  • High Light

    Circular Sapphire Optical Windows


    Transparent Sapphire Quartz Windows


    DSP Sapphire Optical Lens

  • Material
    Sapphire Optical Grade
  • Orientation
  • Surface S/D
    DSP 40/20
  • Tolerance
  • Application
    Vacuum Equipment Window
  • Grade
    Optical Grade Without Bubble;color
  • Transmittance
  • Material
    Sapphire,BK7,UV Fused Silica
  • Shape
    Plano,square,rectangular Or Customer Shape
  • Usage
    Optical,high Temperature View Equipment Glass,protection Window For Gas And Air Analyzer
  • Surface Quality
    60/40,40/20,80-50 To 10-5 Scratch/Dig
  • Product Name
    Optical Circular Sapphire Quartz Windows,HS BK7 Windows Fused Silica Windows Sapphire Windows Optical Windows,Sapphire Optics,Sapphire Window,sapphire Glass Disks Winows
  • Diameter
    1-200.0 Mm
  • Coating
    Golden Or Customer Request.
  • Color
  • Clear Aperture
  • Name
    Sapphire Optical Glass Lens Polishing Glass Wafer,Sapphire Window / Optical Sapphire Window / Sapphire Glass Windows,wholesale OEM Sapphire Windows For Watches
  • Place of Origin
  • Brand Name
  • Model Number
    sapphire circle windows
  • Minimum Order Quantity
  • Price
    by case
  • Packaging Details
    packed in Capacitor paper +Sponge paper+paper case
  • Delivery Time
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    500-5000pcs per month

Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter


Sapphire Optical Window with step hole for Equipment observation glass lens


About synthetic sapphire crystal

The Kyropoulos process (KY process) for sapphire crystal growth is currently used by many companies in China to produce sapphire for the electronics and optics industries.
High-purity, aluminum oxide is melted in a crucible at over 2100 degrees Celsius. Typically the crucible is made of tungsten or molybdenum. A precisely oriented seed crystal is dipped into the molten alumina. The seed crystal is slowly pulled upwards and may be rotated simultaneously. By precisely controlling the temperature gradients, rate of pulling and rate of temperature decrease, it is possible to produce a large, single-crystal, roughly cylindrical ingot from the melt.
After single crystal sapphire boules are grown, they are core-drilled into cylindrical rods, The rods are sliced up into the desired window thickness and finally polished to the desired surface finish.


Used as a window material

Synthetic sapphire (sometimes referred to as sapphire glass) is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant. The key benefits of sapphire windows are:
* Very wide optical transmission band from UV to near-infrared
* Significantly stronger than other optical materials or glass windows
* Highly resistant to scratching and abrasion (9 on the Mohs scale of mineral hardness scale, the 3rd hardest natural substance next to moissanite and diamonds)
* Extremely high melting temperature (2030 °C)

Sapphire Processing

Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing

Rough & Polished windows  process  capacity

Name optical glass
Material Sapphire,quartz,BK7,UV Fused Silica
Diameter Tolerance +/-0.03 mm
Thickness Tolerance +/-0.01 mm
Cler Aperture over 90%
Flatness ^/4 @632.8nm
Surface Quality 80/50~10/5 scratch and dig
Transmission above 92%
Chamfer 0.1-0.3 mm x 45 degree
Focal Length Tolerance +/-2%
Back Focal Length Tolerance +/-2%
Coating available
Usage opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,polarizer,electronic instrument,led etc.


Product Details

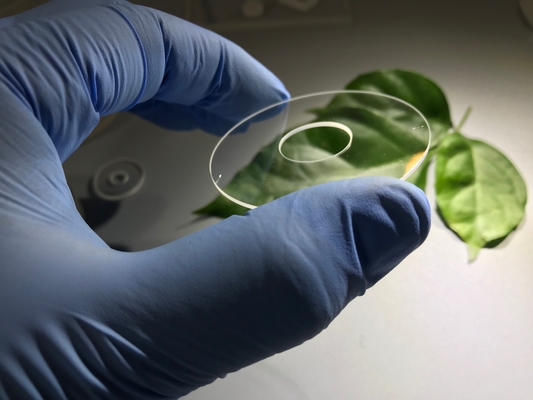

Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter 0

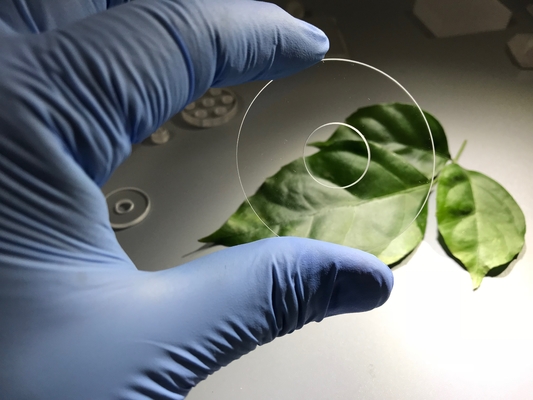

Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter 1


Our  Related Products

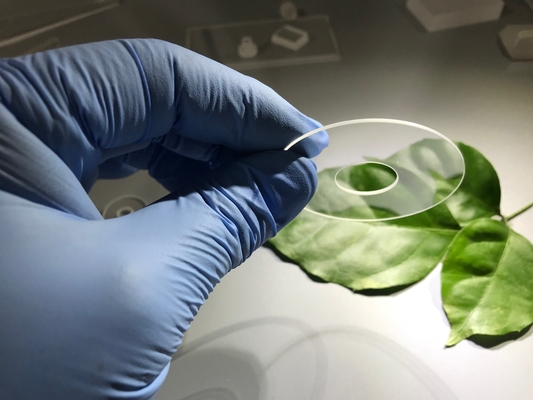

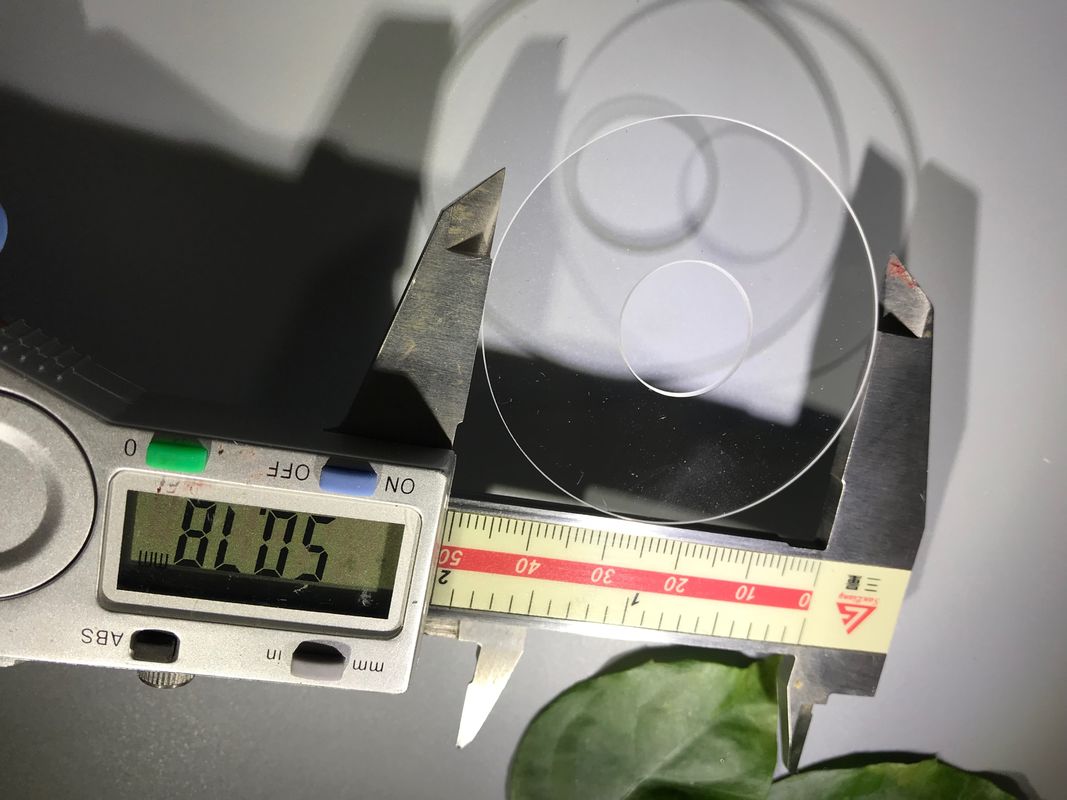

Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter 2Circular Transparent Sapphire Optical Windows Quartz Material Customized Diameter 3

We can fabricate the sapphire glass from rough material plate to polished window

  • We have the very Fast delivery capacity within 15days by Customized size
  • In addition,we Support  { ONE WEEK REFUND MONEY} if not qualified.
  • We also can make substrates, wafers, rods,Bump join; Lens with step&hole
FAQ & CONTACT


Q: What is your minimum order requirement?
A: MOQ:1 piece

Q: How long will it take to execute my order ?
A: After confirming the payment.

Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and  or Assurance payment on Alibaba and etc.

Q: Can you produce custom optics?
A: Yes, we can produce custom optics


About Our Company & Factory

ZMKJ has been fabricating micro to large sapphire windows, sight glasses and flats for over 10 years. Although sapphire is often more costly than glass and other transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often eliminating the need for PM periodic replacements.

We are also specialize in providing a varity of materials wafers, substrates, components, products are widely used in electronics, optics, optoelectronics and many other fields. We've been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.

It's our vision to explore and develope cutting edge application of new materials with customers together.
