Dia50.8mm Sapphire Substrate / Sapphire Windows / Sapphire Optical Lenses DSP SSP
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZMKJ |
| Model Number: | 2INCH 430um |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25pcs |
|---|---|
| Price: | usd20/pc |

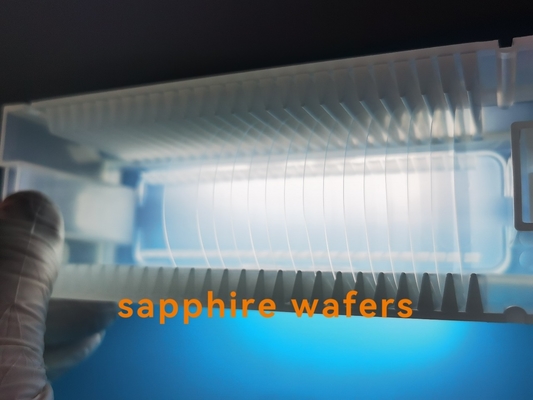

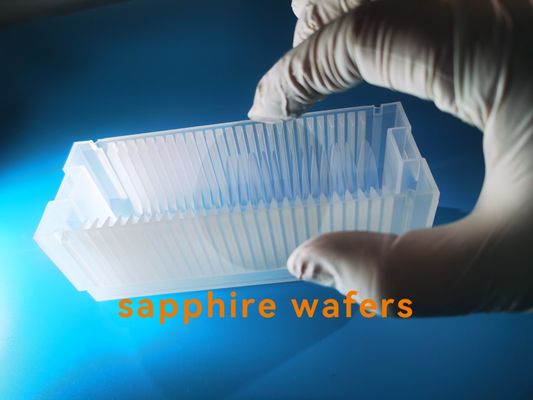

| Packaging Details: | 25pcs cassettle wafer case in 100 grade cleaning bag |
| Delivery Time: | in stocks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Substrate Grade | Orientation: | C-AXIS/A-AXIS/M-AXIS |
|---|---|---|---|
| Thickness: | 4300um(other Thickness Ok) | Surface: | DSP |
| TTV: | ＜10um | BOW: | ＜10um |
| Warp: | ＜10um | Package: | 100 Grade Cleaning Room By Vacuum Package |
| Customize: | Acceptable | ||
| High Light: | Dia50.8mm Sapphire Substrate,Sapphire Windows DSP,Synthetic Sapphire Optical Lenses |
||
Product Description

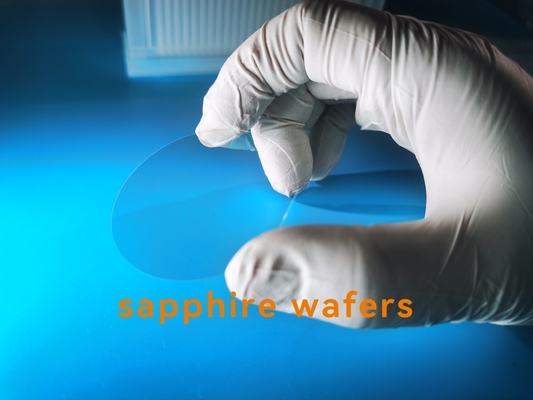

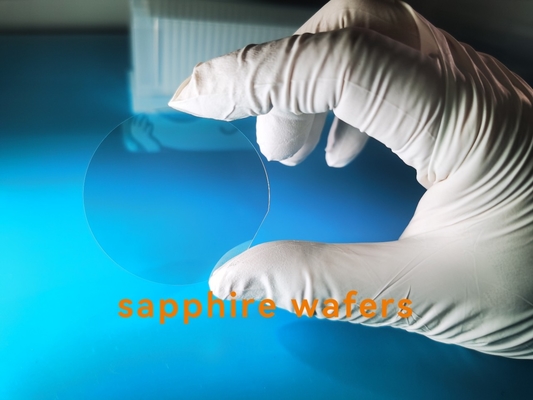

2inch 50.8mm sapphire DSP wafers thickness 430+/-15um
2inch 430um Ultra Thin sapphire wafers 0.43mm Thickness C-plane/M-plane/A-plane DSP/SSP Sapphire wafers Crystal.
1. Feature of our Optical synthetic Sapphire crystal
OEM Size and Design, any shape is ok;
Widely used for optical window, lens, military, etc; The material is synthetic sapphire(hardness 9H)
High Crystal Purity:> 99.995%;
Crystal orientation: Provide A plane, R plane, C plane, M plane and other random planes for sapphire crystal product.
Directional accuracy: ±0.05°We can always provide high-quality service, we will respond to the customer's requirements in a short time.
In addition to optical sapphire glass, we can also make other materials of the optical window, sapphire wafer.
We specialize in the following synthetic sapphire crystal products:
Precision Optics — Micro & Macro Sapphire Windows, Wafers & Flat Products, Tubes, Rods, Spheres & Special Shapes.Our synthetic sapphire growth methods are chosen according to the appropriate application.
Sapphire plasma tubes for semiconductors
Sapphire scanner windows
Sapphire display windows
LED Semiconductors
2. Advancement On sapphire Crystal compare with other glass
1) High temperature resistant, Sapphire Round / Rectangular Optical Window can work
under 1200°C continuously, and in short time can even work under 1450°C,
its softening temperature is 1650°C, and the melting temperature is 1750-1800°C.
2) Corrosion-resistant, Except hydrofluoric acid, Quartz Plate Of Optical Grade
do not react with any acid and base except hydrofluoric acid. the stability is
30 times of the ceramic, and 150 times of stainless steel.
3) Excellent thermal shock stability
4) High transmission to 85%
5) Electric insulation, it is 10000 times of usual glass
3. General Specifications
Diameter: 50.8mm
Diameter tolerance :+/-0.1mm or +/-0.02mm
Thickness : 0.43mm
Thickness tolerance :± 0.1mm or +/-0.02mm
Surface quality (scratch & dig):60/40, 40/20 or better
Surface accuracy :λ/10, λ/2, λ
Clear Aperture : >85%, >90%
Parallelism: +/-3' ,+/-30''
Bevel: 0.1~0.3mm×45 degree
Coating : AR, BBAR or upon customer request( UV, VIS, IR)
4.Products Details
Sapphire windowsRuby
Packing Details : Packing, BOX,CARTONS
Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.
1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China.
2. Q: Can I get sample and how long will it take?
A:Yes. We can supply sample. And you need to pay for the sample and courier. About 7days after receiving the payment, we will send it out.
3. Q: What's the MOQ?
A: Our MOQ is 25 pieace for this size.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
6. Q: What is the payment terms?
A:100% T/T
If you have another question, pls feel free to contact us by E-mail or Tel.
