Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance

Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance

  • High Light

    Fan Shaped Sapphire Substrate

    ,

    High Temperature Resistance Sapphire Substrate

    ,

    Custom Polished Sapphire Elements

  • Material
    Sapphire 99.999% Al2O3 Single Crystal
  • Orientation
    C-AXIS/A-AXIS/M-AXIS/M-AXIS
  • Thickness
    100um(other Thickness Is Ok)
  • Surface
    DSP/SSP/AS-CUT
  • TTV
    <10um(other TTV Is Ok)
  • BOW
    <10um(other BOW Is Ok)
  • Warp
    <10um(other Warp Is Ok)
  • Package
    100 Grade Cleaning Room By Vacuum Package
  • Customize
    Acceptable
  • Place of Origin
    CHINA
  • Brand Name
    ZMKJ
  • Model Number
    sapphire optical lens
  • Minimum Order Quantity
    10pcs
  • Price
    usd50/pc
  • Packaging Details
    25pcs cassettle wafer case in 100 grade cleaning bag
  • Delivery Time
    3-4 weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    1000pcs per month

Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance

Sapphire quartz glass K9 according to the drawings customized arbitrary shape bearing nozzle watch


Parameter of Sapphire Optical Glass Lens

Product Name
Laser Cutting Custom Sapphire Crystal Watch Glass
Diameter Tolerance
+0.0/-0.05mm
Center Thickness Tolerance
±0.05 mm
Focal Length Tolerance
±1%
Surface Quality
80/50,60/40, 40/20 or better
Material
Optical glass(Sapphire/K9/BK7/JGS1/JGS2,Etc.)
Clear Aperture
>90%
Centering
<3 arc min
Coating
AR coating or custom made
Bevel
Protective bevel as needed
Sapphire Windows
Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.

Sapphire Wafers

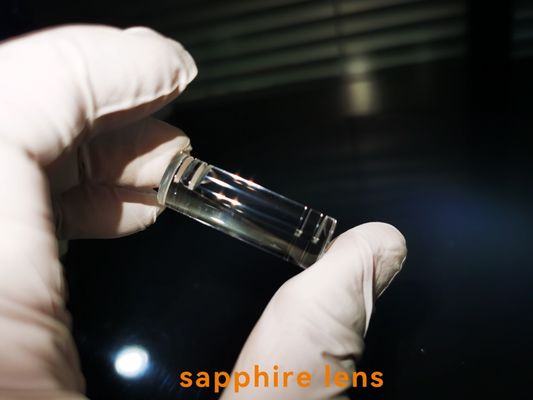

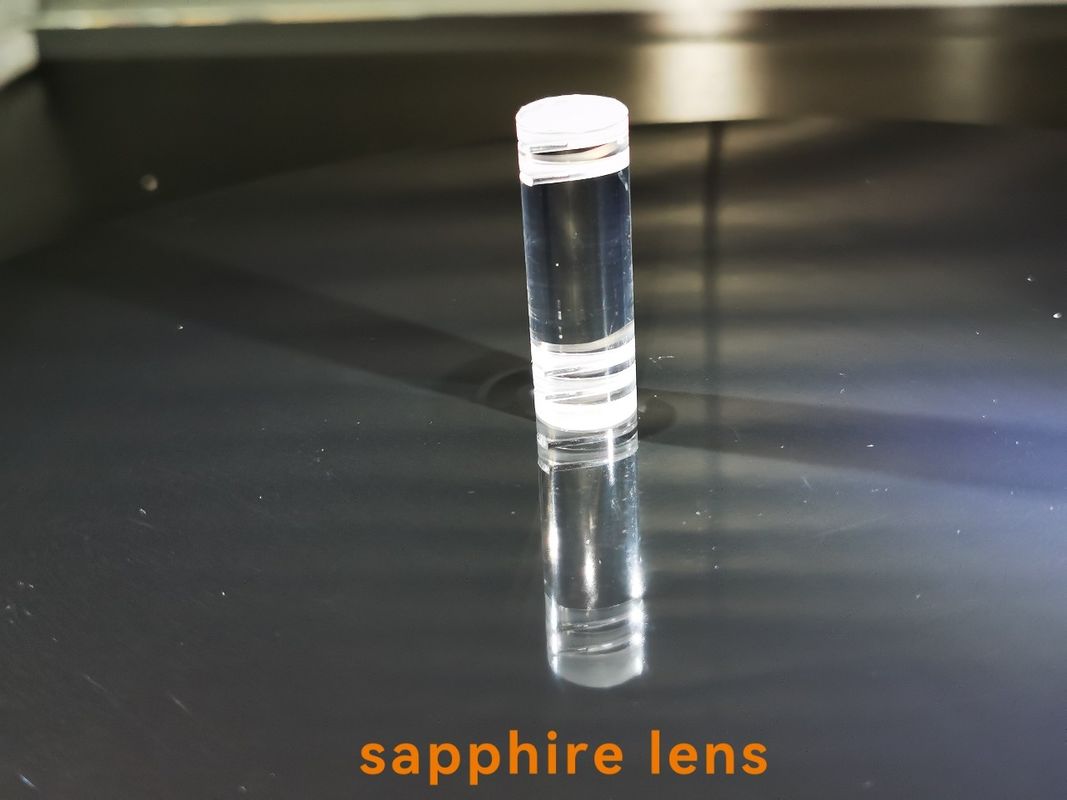

Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance 0

Other Related Products



Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance 1Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance 2Custom Polished Sapphire Substrate Fan Shaped High Temperature Resistance 3









Customized Sapphire/LT/LN/JGS1/JGS2/Ruby/K9 lens




Q1. Are you a factory?

A1:Yes, we are a professional manufacturer of optical components, we have more than 20 years experience in optical cold working.
Q2. What is the MOQ of your products?
A2:No MOQ for customer if our product is in stock, or 1-10pcs.
Q3:Can I custom the products based on my requirement?
A3:Yes, we can custom the material, specifications and optical coating for your optical components as your requirement.
Q4. How can I get sample from you?
A4: Just send us your requirements, then we will send samples accordingly.
Q5. How many days will samples be finished? How about mass products?
A5: Generally, we need 1~2 days to finish the sample production. As for the mass products, it depends on your order quantity.
Q6. What's the delivery time?
A6: (1) For inventory: the delivery time is 1-3 working days. (2) For customized products: the delivery time is 7 to 25 working days. According to the quantity.
