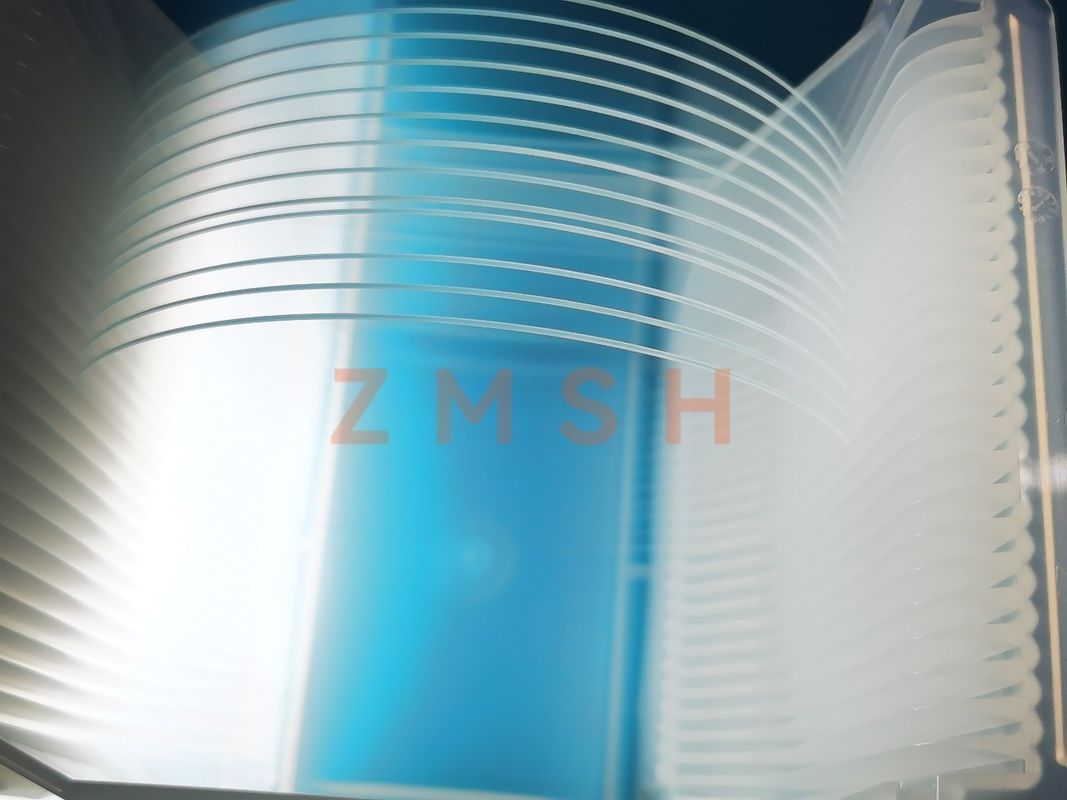

12 Inch Sapphire wafers sapphire windows  Substrate Dia 300mm C Plane Quartz Wafers BF33

12 Inch Sapphire wafers sapphire windows Substrate Dia 300mm C Plane Quartz Wafers BF33

Product Details:

Place of Origin: CHINA
Brand Name: ZMKJ
Model Number: 12inch

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: usd2000/pc
Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
Delivery Time: 45days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Substrate Grade Orientation: C-AXIS
Thickness: 1000um(other Thickness Ok) Surface: DSP
TTV: <10um BOW: <30um
Warp: <30um Package: 100 Grade Cleaning Room By Vacuum Package
Customize: Acceptable
High Light:

C Plane Quartz Wafers Substrates

,

12 Inch Single Crystal Sapphire Wafer

,

Sapphire Fused Silica Wafer

Product Description

3inch 300um 500um sapphire wafers sapphire substrate C-plane for epitaxial growth

Ultra-thin  2inch sapphire  DSP wafers  thickness 100um 0.1mm

2inch 100um Ultra Thin sapphire wafers 0.1mm Thickness C-plane DSP Sapphire wafer

12inch sapphire wafers dia300mm DSP C-plane wafers BF33, Quartz wafers




1. Sapphire has a high optical transmittance, so it is widely used as microelectronic tube dielectric material, ultrasonic conduction element, waveguide laser cavity, and other optical elements, as window materials for infrared military devices, space vehicles, high-intensity lasers and optical communications.

2. Sapphire has high rigidity, high strength, high working temperature, abrasion resistance, corrosion resistance characteristics, so sapphire substrate is often used in harsh environments, such as boiler water gauge (high-temperature resistance), commodity bar code scanner, bearing, and other precision manufacturing (wear resistance), coal, gas, well detection sensors and detector windows (anti-corrosion).

3. Sapphire has the characteristics of electrical insulation, transparency, good thermal conductivity, and high rigidity, so it can be used as the substrate material of integrated circuits, such as LED and microelectronic circuits, ultra-high-speed integrated circuit.

  •  EXCELLENT SAPPHIRE WAFERS

    • 99.999 % high purity single crystal Al2O3 material.

    • Special CMP (Chemical Mechanical Polishing) technology to ensure the performance of Al2O3 substrate at a low cost.

    • Excellent surface quality in all orientations (less than 0.2 nm for C-plane, less than 0.5 nm for A-plane, M-plane, R-plane, N-plane, V-plane, 10-14, etc.)

    • Cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm.

    • 25 pcs a pack or single pack is available to maximize customer flexibility in their research.

    • Traceable product serial number.

    • Compact carton packaging for safer shipping and cost-saving.

    • Standard wafers are Generally in stock to ensure a quick delivery.



    Sapphire application

    • 1. Semiconductor LED industry (MOCVD epitaxial GaN substrate)
    • In general, C-plane sapphire is needed in this area. R-plane or M-plane mainly used to grow non-polar/semi-polar plane epitaxial layers to improve the luminescence efficiency.
    • 2. The growth of III-V or II-VI compound semiconductors.
    • 3. Microelectronic IC applications especially Very High-Speed Integrated Circuit, SOS
    • Generally, it is a silicon heteroepitaxial deposition on R-plane sapphire.
    • 4. Hybrid microelectronics
    • Hybrid microelectronics products are mainly HIC and MCM. It has high requirements on the substrate, while sapphire substrates' characteristics such as stable dielectric constant and low dielectric loss make sapphire wafer the most commonly used substrate for HIC and the main substrate for MCM. Generally, the A-plane sapphire wafer is needed.

The Detail for 12inch C-axis wafers


Size: 12inch  DSP-1.0-C-Sapphire

Material: KY Sapphire Al2O3 single crystal without bubble;color ;

Orientation:C-cut,+/-0.3°;
Diameter: 300 +/-0.2mm ;

Thickness:1000 ± 25 um ;
OF Flat: Notch at A-axis;
Surface: DSP Epi-ready Polished ;
TTV<= 20um ;BOW<= 30um ; Warp<= 45 um ;
Front Surface Roughness (Ra) Ra <= 0.3 nm;

Back Surface Roughness (Ra)  Ra = 0.3 +/-0.2um ;
Edge: from 1mm ;



General  Other Size Sheet  on Stocks


 Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
0.1mm,0.175mm, 0.2mm; 0.3mm,0.4mm,0.5mm
3 inch C-plane sapphire wafer SSP/DSP
0.43mm,0.5mm;
4 inch C-plane sapphire wafer SSP/DSP
0.25mm,0.3mm,0.4mm,0.5mm,0.65mm
6 inch C-plane sapphire wafer SSP/DSP
1.0mm,1.3mm, 0.8mm
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
All on stocks
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer




Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS





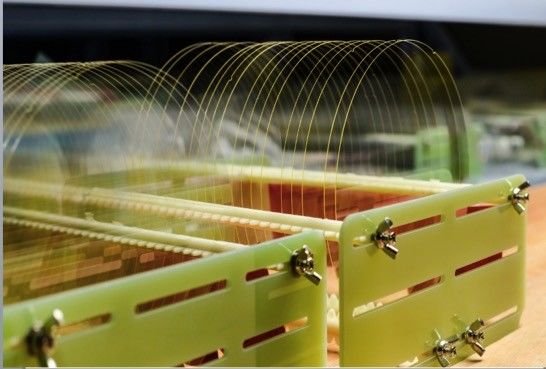

12 Inch Sapphire wafers sapphire windows  Substrate Dia 300mm C Plane Quartz Wafers BF33 0


Other Related Products


12 Inch Sapphire wafers sapphire windows  Substrate Dia 300mm C Plane Quartz Wafers BF33 112 Inch Sapphire wafers sapphire windows  Substrate Dia 300mm C Plane Quartz Wafers BF33 2
                GaAs Substrates                                                      Colored Sapphire Crystal



12 Inch Sapphire wafers sapphire windows  Substrate Dia 300mm C Plane Quartz Wafers BF33 3
      Customized Sapphire lens/ LiTaO3 Ingots/ SiC Substrates/ LaAlO3 Substrates



Why Choose us


  Onsite engineers & master optician
  10+ years of expertise in sapphire & exotic materials manufacturing
  ISO 9001:2008 Certified
  Can Customzied make many Difficult and complex sapphire parts
  State-of-the-art manufacturing equipment & measurement capabilities
  Cost saving overseas sourcing (for non-ITAR applications only)


Packing & Delivery

Packing Details : Packing, BOX,CARTONS

Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.

FAQ


1. Q: Where is your company located? How can I visit there?
A: Our factory is located in  Wuxi City, Jiangsu Province, China.
2. Q: Can I get sample and how long will it take?
A:Yes. We can supply sample. And you need to pay for the sample and courier. About 7days after receiving the payment, we will send it out.
3. Q: What's the MOQ?
A: Our MOQ is 25 pieace for this size.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
6. Q: What is the payment terms?
A:100% T/T

If you have another question, pls feel free to contact us by E-mail or Tel.
