Product Details:

Place of Origin: CN
Brand Name: ZMSH
Certification: ROHS
Model Number: 10X10X0.1mmt

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: by case
Packaging Details: packed by PET protective optical Film
Delivery Time: 1-4weeks;
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Materials: Sapphire Crystal Glass Orientation: (0001)±0.3°
Size: 10x10mm Square Thickness: 100um
Tolerance: ±15um Surface: Double Side Polished
Ra: 0.3nm Ttv: 5um
Bow: 5um
High Light:

double side polished led sapphire substrate

,

100um led sapphire substrate

,

2 inch single crystal sapphire wafer

Product Description

10*10*0.1mmt 100um  2inch sapphire wafers double side polished



What is Sapphire orientation
  • Zero Degree: The direction of view is parallel to the optical axis of the crystal

  • 90 Degree: The direction of view is perpendicular to the optical axis of the crystal

  • C-Axis: In a rod, the direction along its length. In a window, the direction perpendicular to the face.

  • M-Plane: The plane containing the optic axis (C) and inclined 30 degrees to the A-axis

  • A-Plane: The plane that is perpendicular to the A-axis, containing the C-axis

  • R-Plane: A plane inclined 57.5667 degrees to the optic axis in the same zone as the M-plane.

  • Random: There is no specified relationship between the part and the crystalline orientation. The part is manufactured without concern about orientation.

  • Application

  • Sapphire wafer and substrate applications include:
    Microelectronic IC applications
    SOS Silicon-on-Sapphire
    The growth of superconducting compounds / Gallium Nitride
    Infrared detectors
    Hybrid microelectronics
    Polishing carriers
    Hostile environment
    Optical transmission from ultraviolet to near infrared
    High temperature
    Radiation resistance



    Product Name
    Sapphire Ingot
    Sapphire Wafer
    Sapphire Crystal
    Precision Sapphire Rod
    Sapphire Substrate and Wafer
    Sapphire Prism
    Sapphire Screen Cover
    Sapphire Optical Window
    Sapphire Window
    Sapphire Lenses
  • Product Description



    Product Name
    10x10mm  C-Plane Sapphire Glass Wafer
    Material
    Sapphire
    Diameter
    2inch or 10x10mm
    Diameter Tolerance
    +-0.1mm
    Thickness
    100±15um
    Shape
    square
    Surface
    DSP/SSP
    Flatness
    >L/4
    Surface Quality
    20/10
    Bevel
    yes
    Coating
    uncoated
General Other Size Sheet on stocks

Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS



The Size in stocks

2inch DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt
SSP C-axis 0.2/0.43mm
(DSP&SSP) A-axis/M-axis/R-axis 0.43mm
3inch DSP/ SSP C-axis 0.43mm/0.5mm
4Inch dsp c-axis 0.4mm/ 0.5mm/1.0mm
ssp c-axis 0.5mm/0.65mm/1.0mmt
6inch ssp c-axis 1.0mm/1.3mmm

dsp c-axis 0.65mm/ 0.8mm/1.0mmt

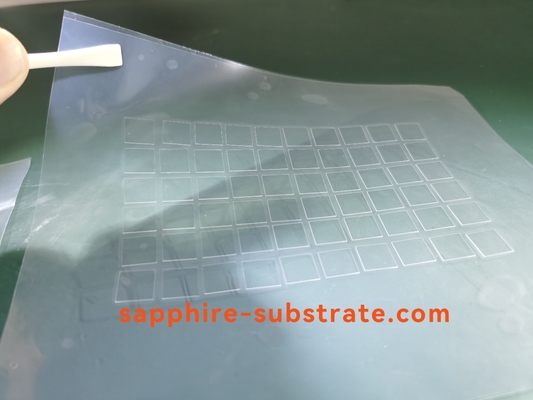

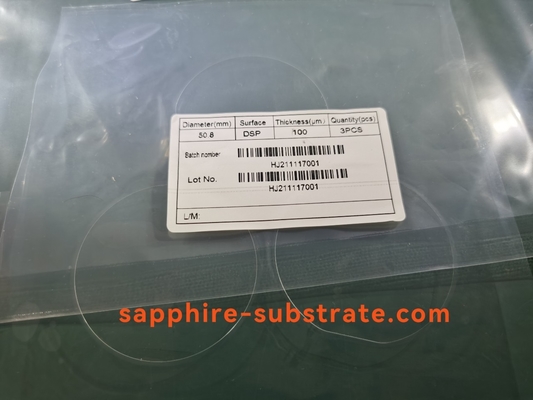

10*10*0.1mmt 100um Double Side Polished Led Sapphire Substrate 2 inch 010*10*0.1mmt 100um Double Side Polished Led Sapphire Substrate 2 inch 1

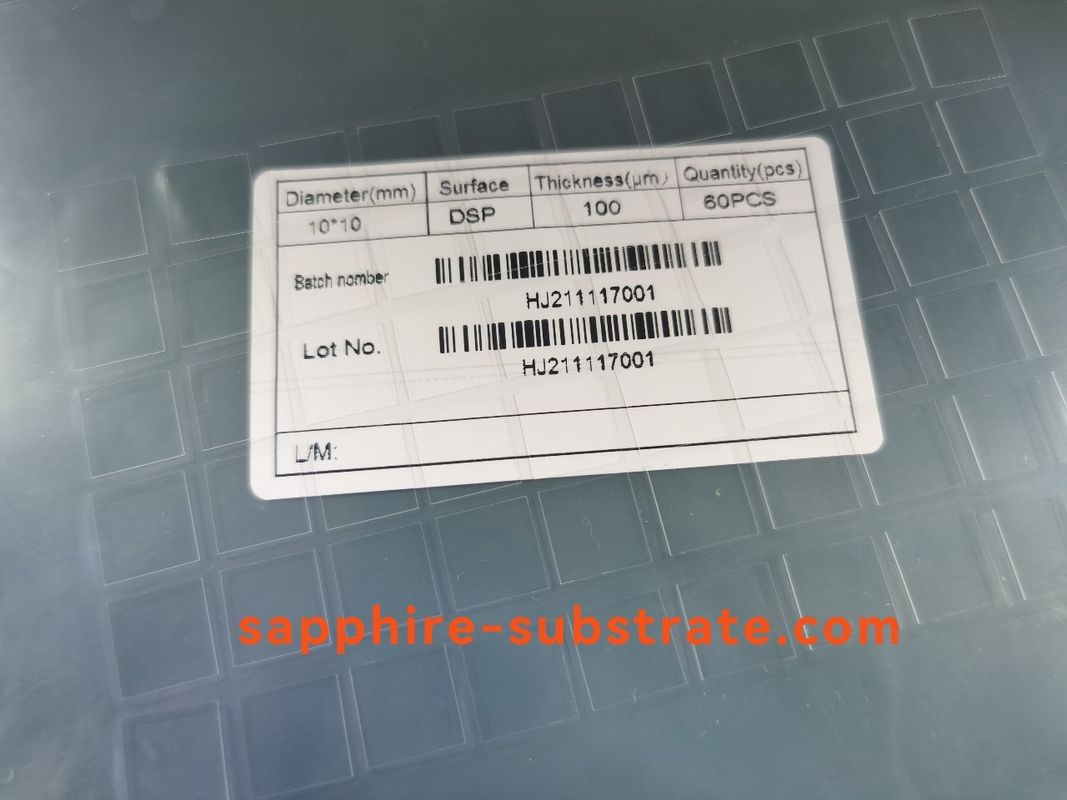

10*10*0.1mmt 100um Double Side Polished Led Sapphire Substrate 2 inch 2
