10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device

10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device

  • High Light

    magnesium oxide

    ,

    high temperature superconductors

  • Material
    TGG Single Crystal
  • Orientation
    111
  • Size
    10x10x0.5mm Or 2inch
  • Thermal Conductivity
    7.4 W·m-1·K-1
  • Spectral Range
    400~1100nm(but Not 470~500nm)。
  • Product Name
    Terbium Gallium Garnet
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Model Number
    TGG Wafers
  • Minimum Order Quantity
    10pcs
  • Price
    by case
  • Packaging Details
    single wafer case under 1000 cleaning room
  • Delivery Time
    3-4weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    500pcs

10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device

10x10mmt Terbium gallium garnet (TGG)crystals substrate wafer for laser device

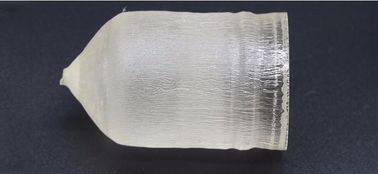

Product Type: Terbium gallium garnet (TGG) crystal substrateProduct Description:TGG crystal with a large magneto-optical constants, low optical loss, high thermal conductivity and high laser damage threshold, widely used YAG, Ti-doped sapphire and other multi-stage amplification, ring, seed injection lasers. Faraday rotator is used to produce the best isolator optical materials for wavelength of 400-1100nm (not including 470nm-500nm). TGG Faraday rotator by a crystal rod and a special designed magnet. Magneto-optical material through the polarization direction of the light beam in the magnetic field deflects the direction of the deflection direction of the magnetic field only, the beam propagation direction.Optical isolator consists of a 45 ° deflection of the optical device and a pair of polarizers placed in suitable composition, which the beam in one direction only through, while blocking the reverse-propagating light beams.Technical parameters:10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device 0

Formula Tb 3 Ga 5 O 12
Lattice constant a = 12.355
Growth method Czochralski method
Density 7.13g/cm 3
Mohs hardness 8.0
Mp 1725 °C
Index of refraction 1.954 at 1064nm
Temperature Coefficient 9.4x10 -6 °C -1
Verdet constant 0.12min / O e. Cm at 1064nm

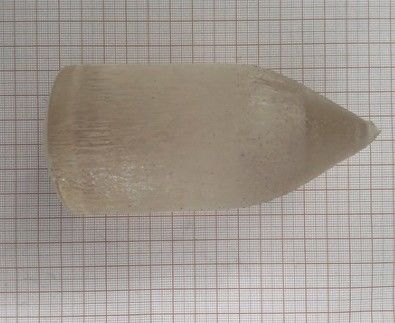

10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device 1

Specifications:



Crystal element standard sizes:

Crystal Orientation: <111> within 5 degrees;

size: < dia100x200

Wavefront Distortion: <1/8 wave total (measured at 633nm);

Tolerance: Diameter: +0.00 mm/-0.05mm; length: ± 0.2mm;

Chamfer: 0.13mm (+0.00 mm,-0.08mm) at 45 ° ± 5 °

Note: You can provide special sizes according to customer needs and the direction of the substrate.

Standard Packaging:1000 clean room, clean bags 100

10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device 2



Applications

10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device 3
10x10mmt Superconducting Thin Monocrystalline Substrate Terbium Gallium Garnet For Laser Device 4

Read before inquiry:
1. If you want to customize,you need to tell me what types do you need. Such as YAG,TGG,GGG and GAGG etc. And the materials, growth direction, related parameters and what you will use it for are also very important information we need to know.



2.There are many kinds of products in our products. The parameters of each product are different. If you want to know any crystal materials, we can provide detailed information. For you to choose.
