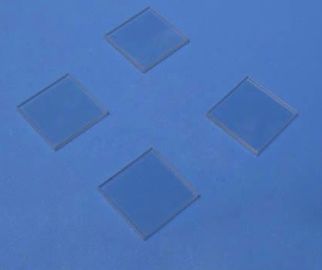

10x10x0.5mmt LaSrAlTaO3 Tantalum , LSAT Wafer Substrate Crystal Industrial
Product Details:
| Place of Origin: | china |
| Brand Name: | zmkj |
| Model Number: | sto wafers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | by case |
| Packaging Details: | single wafer package in 100-grade cleaning room |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Material: | LaSrAlTaO3 Crystal Substrate | Common Size: | 10x10 20x20 |
|---|---|---|---|
| Orientation: | <100><110><111> | Color: | Colorless |
| Application: | High Temperature Superconducting Junction Technology | ||
| High Light: | magnesium oxide,wafer substrate |
||
Product Description
10x10x0.5mmtTantalum, lanthanum strontium aluminate (LSAT)crystals crystal substrate wafer/LSAT (LaAlO3)0.3 (Sr2AlTaO8)0.7 Single Crystal Monocrystal Substrate
Product Name:Product Description:
(La,Sr)(Al,Ta)O3 is a relatively mature non-twisted perovskite crystal with a perfect match with high temperature superconductors and various oxide materials. In a large number of practical research and use, it is expected to replace lanthanum aluminate (LaAlO3) and barium titanate (SrTiO3) for giant magnets and superconducting devices.
Specifications:
Gauge
Epitaxial polishing a substrate <100>, <110>, <111> ± 0.5 o,single throw or double throw, Ra <5 Å;
Note: You can provide special sizes according to customer needs and direction of the substrate.
| Product Name: | Tantalum, lanthanum strontium aluminate (LSAT) crystal substrate | ||||||||||||||||||

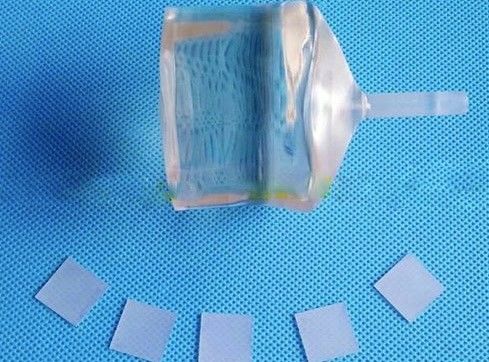

| Product Description: | LSAT (La, Sr) (Al, Ta) O3 is a new non-perovskite crystal twinning.LSAT with a variety of high-temperature superconductors and oxide materials have good match. LSAT low melting point, with the Czochralski method, the cost is relatively low. Thus, it is expected to replace LaAlO3/SrTiO3 as an epitaxial oxide thin monocrystalline substrate giant magnets are widely used in electrical and superconducting devices. | ||||||||||||||||||
| Technical parameters: |
|
||||||||||||||||||
| Specifications: |
<100>, <110>, <111> Tolerance: + / -0.5 degrees dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm Single throw or double throw, Ra <5A Can be customized orientation and size. |
||||||||||||||||||

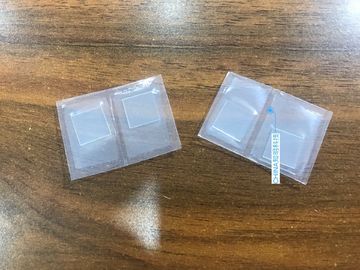

| Standard Packaging: | 1000 clean room, 100 clean bag or single box packaging |
Application:
OUR RELATED PRODUCTS
Sapphire/ SiC/ GaN/GaAs/ InP/ MgO single crystal
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory that is fabricating sapphire ＆sic wafers.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Read before inquiry:
I. If I want to customize, you need to tell me what types do you need?
Such as MgO,STO, GGG and LAO etc. And the size of materials, orientation, related parameters and what you will use it for are also very important information we need to know.
II.There are many kinds of products in our products. The parameters of each product are different. If you want to know any crystal materials, we can provide detailed information. For you to choose.
