Product Details:

Place of Origin: CHINA
Brand Name: ZMKJ
Model Number: 2INCH A-axis

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case

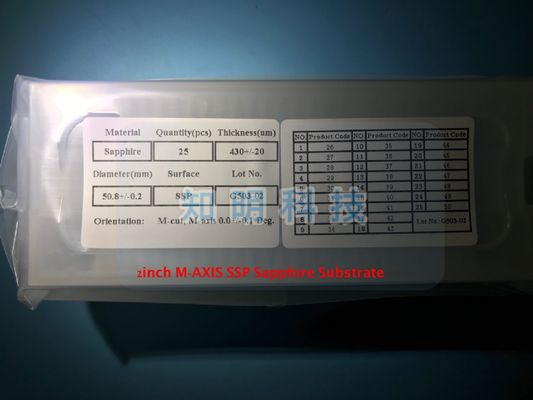

Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
Delivery Time: 1-4weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Substrate Grade Orientation: R-axis
Thickness: 430um(other Thickness Ok) Surface: SSP OR DSP
TTV: <10um BOW: <15um
Warp: <15um Package: 100 Grade Cleaning Room By Vacuum Package
Customize: Acceptable
High Light:

sapphire wafer

,

sapphire material

Product Description




Special Orientation SSP/ DSP A-axis <11-20> R-axis <1-102> M-axis<10-10> 2inch 3inch 4inch 6inch sapphire substrates wafers for GaN epitaxial growth;


TYPICAL CHOICES FOR PART ORIENTATION:

  • Zero Degree: The direction of view is parallel to the optical axis of the crystal 2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 0

  • 90 Degree: The direction of view is perpendicular to the optical axis of the crystal

  • C-Axis: In a rod, the direction along its length. In a window, the direction perpendicular to the face.

  • M-Plane: The plane containing the optic axis (C) and inclined 30 degrees to the A-axis

  • A-Plane: The plane that is perpendicular to the A-axis, containing the C-axis

  • R-Plane: A plane inclined 57.5667 degrees to the optic axis in the same zone as the M-plane.

  • Random: There is no specified relationship between the part and the crystalline orientation. The part is manufactured without concern about orientation.



Sapphire is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used for led substrates for GaN Epitaxial growth ;and also as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-tech fields.







The Detail for 2inch A-axis wafers


Size: 2 inch SSP-430-R-axis

Material: KY Sapphire Al2O3 single crystal without bubble;color ;2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 1

Orientation:R-cut,R-axis off 0.0+/-0.1°;
Diameter: 50.8 +/-0.2mm ;

Thickness:430 ± 15 um ;
OF Flat:16.0 +/- 1.0 mm ;
OF orientation: 45+/-1deg. counter-clockwise from C-axis projection on R-plane,
Surface: SSP Epi-ready Polished ;
TTV<= 10um ;BOW<= 20um ; Warp<= 20 um ;
Front Surface Roughness (Ra) Ra <= 0.3 nm ;
Back Surface Roughness (Ra)  Ra = 1.0 +/-0.2um ;
Edge: from 1mm ;



2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 2



The Inspection Data
  2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 3


General  Other Size Sheet

 Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer




Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS




Other Related Products

2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 42'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 5
             GaAs substrates                                                Other Customized Sapphire optical
2'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 62'' Sapphire Substrate 10-12 R - Plane 11-20 A - Plane Thickness 430um 7
               MgO  Substrates                                                   2-6inch SiC Wafers


Why Choose us


+ 100% QC inspection before packing;
+ Without defects on our products,high purity;
+ Vacuum packing;
+ All our products pass SGS,CE,Rohs;
+ With quickly leading time because of commonly on stocks
+ Germany technology,Chinese price;
Please try to offer more details as belowing when you place an order:Drawing,Tolerance,Material,Hardness,
Coating,Color,Semitransparent rate and use for what products.
