2 Inch 50.8mm Sapphire Substrate Wafer Double Side Polished M Axis C Axis A Axis
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMKJ |
| Certification: | ROHS |
| Model Number: | 2inch 50.8mm 370~380um |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25pcs |
|---|---|
| Price: | by case |

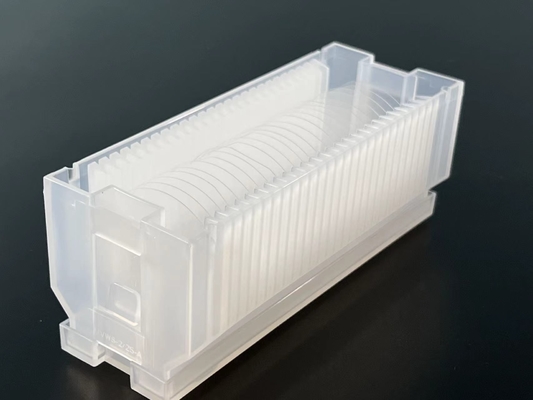

| Packaging Details: | 25pcs cassettle wafer case in 100 grade cleaning bag |
| Delivery Time: | 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Substrate Optical Grade | Orientation: | M-axis C-axis A-axis |
|---|---|---|---|
| Thickness: | 430um(other Thickness Ok) | Surface: | DSP SSP |
| TTV: | ＜10um(other TTV Is Ok) | BOW: | ＜10um(other BOW Is Ok) |

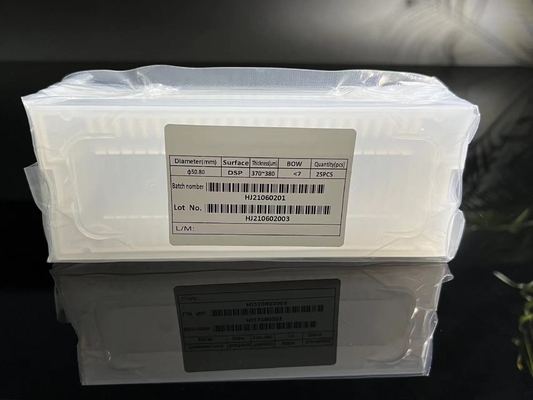

| Warp: | ＜15um | Package: | 100 Grade Cleaning Room By Vacuum Package |
| High Light: | Sapphire Substrate Wafer 2 Inch,Double Side Polished Sapphire Substrate Wafer,M Axis Sapphire Wafer |
||
Product Description

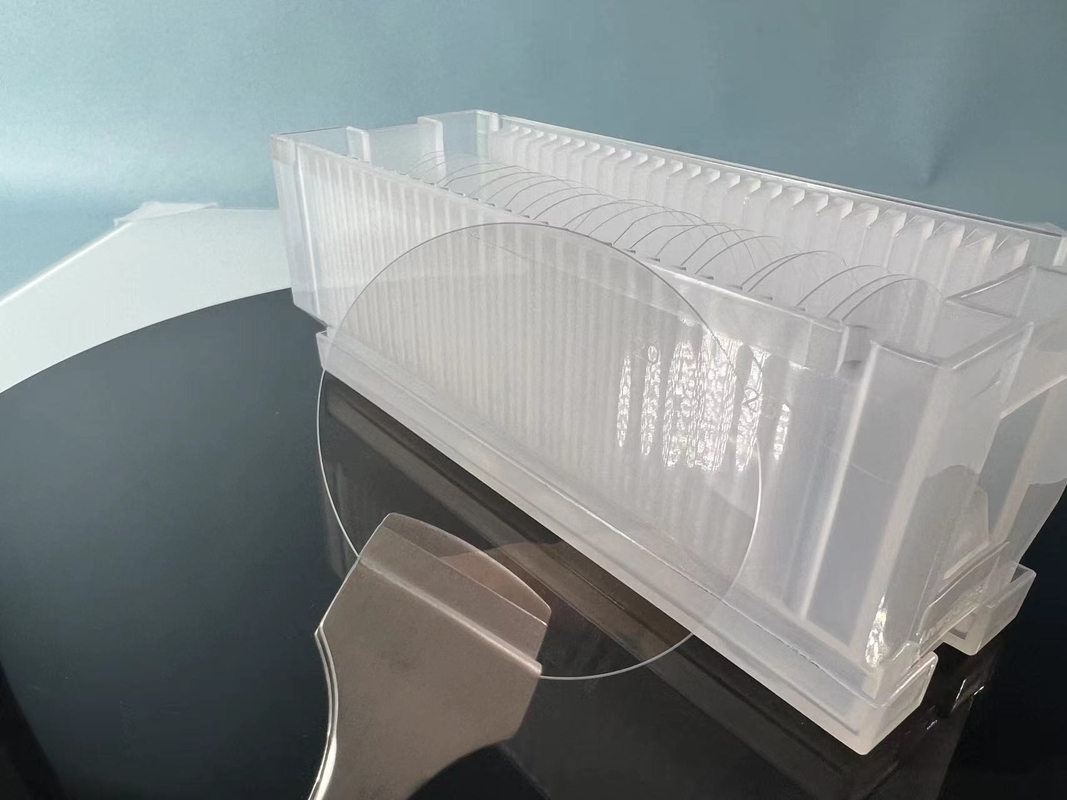

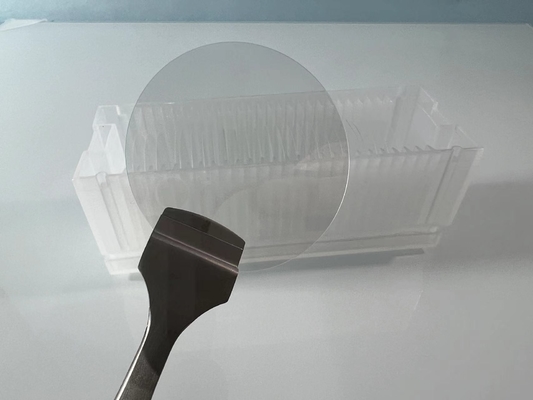

2 Inch 50.8 Sapphire Substrate wafer Double Side Polished M Axis C Axis A Axis
Special Orientation SSP/ DSP A-axis <11-20> R-axis <1-102> M-axis<10-10> 2inch 3inch 4inch 6inch sapphire substrates wafers for GaN epitaxial growth；0.1mm/100um 2inch sapphire c-axis substrates
The Detail for 2inch c-axis wafers
Sapphire is a single alumina crystal and the second-hardest material in nature, after diamond. Sapphire has good light transmittance, high strength, collision resistance, wear resistance, corrosion resistance, and high temperature and high-pressure resistance, biocompatibility is an ideal substrate material for the production of semiconductor optoelectronic devices, the electrical properties of sapphire make it become the substrate material for the production of white and blue LED.
Our company's long-term production thickness ≧0.1mm, and its shape size ≧Φ2" high precision sapphire wafer. In addition to the conventional Φ2 ", Φ4 ", Φ6 ", Φ8 ", Φ10 ", Φ12 ", other sizes can be customized, please contact our sales staff.
The Specifications for 2inch c-axis wafers
Size: 2-inch DSP-100-R-axis
Material: KY Sapphire Al2O3 single crystal without bubble；color ；
Orientation:C-cut,M-axis off 0.0+/-0.2°；
Diameter: 50.8 +/-0.2mm ；
Thickness:100 ± 15 um ；
OF Flat:16.0 +/- 1.0 mm ； OR round shape
OF orientation: a-axis
Surface: SSP /dsp Epi-ready Polished ；
TTV<= 10um ；BOW<= 20um ； Warp<= 20 um ；
Front Surface Roughness (Ra) Ra <= 0.3 nm； or double side
Back Surface Roughness (Ra) Ra = 1.0 +/-0.2um ；
Edge: from 1mm ；
The Applications for sapphire wafer substrates
Sapphire is composed of alumina (A1203), which is composed of three oxygen atoms and two aluminum atoms in a covalent bond type, and its crystal structure is a hexagonal lattice structure. It is often used on A-Plane, C-Plane, and R-Plane facets. Due to its wide optical penetration band, sapphire has excellent light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials, and mask materials, it has the characteristics of high sound speed, high-temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045°C) and so on. It is a rather difficult material to process, so it is often used as a photoelectric element material. At present, the quality of ultra-high brightness white/blue LED depends on the material quality of nitride epitaxial (Ga), while the quality of nitride epitaxial is closely related to the surface processing quality of the sapphire substrate used. The lattice constant mismatch rate between the C surface of sapphire (single crystal A1203) and the films of II-V and II-VI groups are small. At the same time, it meets the requirement of high-temperature resistance in the GaN epitaxial process, making the sapphire wafer the key material for making white/blue/green LEDs.
The stock of sapphire wafer
|
Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP 4 inch C-plane sapphire wafer SSP/DSP 6 inch C-plane sapphire wafer SSP/DSP 8 inch C-plane sapphire wafer
SSP/DSP
12inch sapphire wafer
SSP/DSP
|
Special Orientation
A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis Other customized orientation |
|
Customized Size
10x10x0.5mm sapphire wafer 20x20x0.5mm sapphire wafer Ultra thin (100um) 2inch sapphire wafer 8 inch sapphire wafer |
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS 4 inch C-plane PSS |
Other Related Products
Sapphire blades colorful sapphire 6inch sapphire wafer
FAQ
Q: What is your minimum order requirement?
A: MOQ:10 piece
Q: How long will it take to execute my order and delivery it ?
A: confirm the order 1days After confirming the payment and delivery in 5days if on stocks.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new products or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer.
Q: HOW about the freight ?
A: we can help you pay for the fee if you don’t have an account,
if the order is over 10000usd, we can delivery by CIF.
Q: If you have any other questions,please do not hesitate to contact me.
A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
we are at your side any time~~
