Product Overview

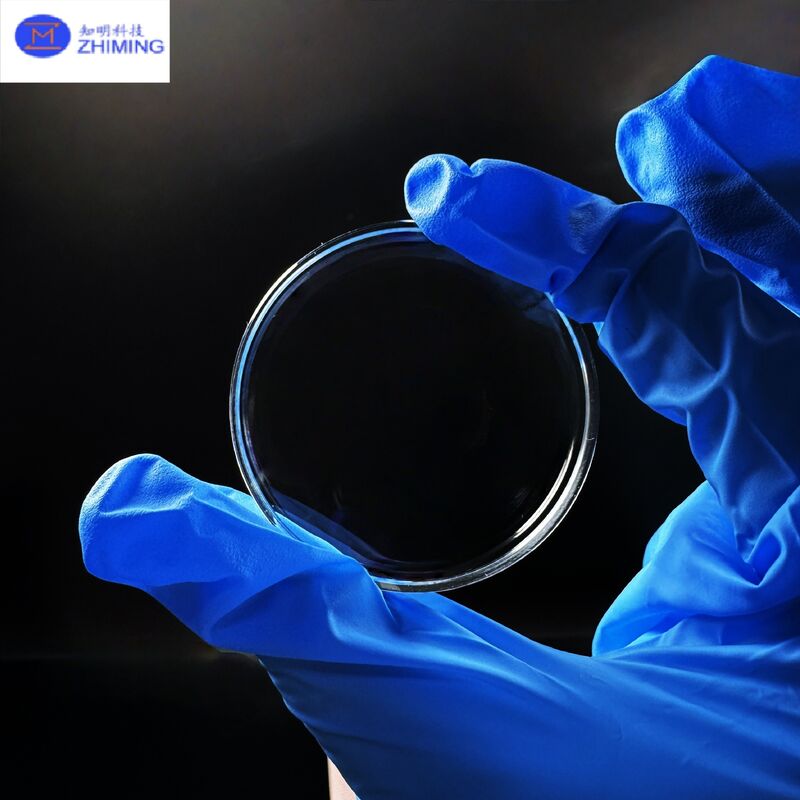

Our Sapphire Windows are precision optical components manufactured from high-purity single-crystal sapphire (Al₂O₃). Designed for applications requiring excellent optical transparency, superior surface hardness, and reliable performance under demanding operating conditions, sapphire windows provide a durable alternative to conventional optical glass.

Sapphire is a crystalline form of aluminum oxide with a Mohs hardness of 9, offering outstanding scratch and abrasion resistance. Its combination of optical clarity, mechanical strength, thermal stability, and chemical resistance makes it suitable for optical systems and industrial equipment exposed to elevated temperatures, corrosive media, pressure, and mechanical wear.



Available in round, square, rectangular, and customized geometries, our sapphire windows can be manufactured to meet specific requirements for dimensions, thickness, surface finish, optical performance, and installation configuration.

Key Features and Advantages

1. Excellent Optical Transparency

Sapphire provides useful optical transmission across ultraviolet (UV), visible, and selected infrared (IR) wavelength ranges. This broad transmission capability makes sapphire windows suitable for optical inspection, laser systems, imaging equipment, and sensing applications.
Depending on the wavelength, crystal quality, thickness, and surface finish, additional optical coatings can be applied to improve transmission and reduce surface reflection.

2. Superior Hardness and Wear Resistance

With a Mohs hardness of 9, sapphire is highly resistant to scratching and surface abrasion. Compared with conventional glass, it offers enhanced durability in applications where optical surfaces are frequently exposed to particles, friction, or cleaning processes.
This property helps maintain surface quality and extends the service life of protective windows in demanding industrial environments.

3. High-Temperature Stability

Sapphire has a melting point of approximately 2,040°C and maintains excellent structural stability under elevated-temperature conditions. Its thermal properties make it a suitable material for observation windows, optical inspection systems, and specialized equipment operating in high-temperature environments.
Actual operating limits depend on component dimensions, mounting conditions, thermal gradients, and the surrounding environment.

4. Excellent Chemical Resistance

Single-crystal sapphire exhibits good resistance to many acids, alkalis, and corrosive process environments. It is suitable for applications where ordinary glass windows may experience surface degradation or require frequent replacement.
Chemical compatibility should be evaluated against the specific process medium, temperature, concentration, and exposure duration.

5. Precision Surface Finishing

Sapphire windows can be supplied with ground, lapped, or optically polished surfaces according to application requirements. Precision finishing helps control surface roughness, flatness, parallelism, and optical quality.
For applications requiring improved optical efficiency, anti-reflective coatings or other wavelength-specific coatings may be considered.

Applications

Sapphire windows are used in a wide range of optical, scientific, and industrial applications, including:


• Semiconductor Manufacturing Equipment: Protective optical windows, inspection ports, and viewing windows for selected process environments.

• Laser and Photonics Systems: Optical protection and transmission components for compatible laser wavelengths.

• Industrial Sensors: Protective windows for temperature sensors, optical detectors, and measurement instruments.

• High-Temperature Equipment: Observation windows for furnaces, thermal processing systems, and specialized testing apparatus.

• Scientific Instruments: Optical access windows for spectroscopy, laboratory experiments, and analytical equipment.

• Aerospace and Defense Optics: Durable protective windows for selected optical sensing and imaging systems.

• Pressure and Vacuum Systems: Viewing windows designed for equipment requiring optical access, subject to appropriate mechanical and sealing design.

Customization Options

We offer customized sapphire window solutions based on customer drawings, technical specifications, and application requirements.

Why Choose Sapphire Windows?

Sapphire windows combine optical functionality with exceptional mechanical durability. Their hardness, thermal stability, and chemical resistance make them a strong choice for applications in which conventional optical materials may not provide sufficient service life or environmental resistance.

By selecting suitable dimensions, surface quality, crystal orientation, and optical coatings, customers can tailor sapphire windows to the needs of their optical systems and industrial equipment.

Whether you require standard sapphire optical windows or custom-machined components, we can work with your technical drawings and application specifications to develop a suitable solution.

Contact us for customized sapphire windows, technical specifications, and quotation requests.



Sapphire Windows – Frequently Asked Questions (FAQ)

1. What is a sapphire window?

A sapphire window is an optical component manufactured from single-crystal sapphire (Al₂O₃). It combines optical transparency with high hardness, excellent wear resistance, thermal stability, and good chemical resistance. Sapphire windows are widely used in optical instruments, semiconductor equipment, laser systems, industrial sensors, and high-temperature applications.

2. What are the main advantages of sapphire windows?

Sapphire windows offer several advantages, including:

• High hardness and excellent scratch resistance

• Good optical transmission across selected UV, visible, and infrared wavelengths

• Excellent thermal stability

• Good resistance to many chemicals and corrosive environments

• High mechanical strength and wear resistance

• Long service life in demanding operating conditions

These properties make sapphire a suitable material for applications requiring both optical performance and environmental durability.

3. What wavelengths can sapphire windows transmit?

Sapphire transmits light across the ultraviolet, visible, and portions of the infrared spectrum. Its useful transmission range depends on material quality, thickness, wavelength, and surface condition.
For applications requiring specific UV, visible, or IR wavelengths, the transmission requirements should be confirmed before ordering.
