Sapphire tube EFG double side polish for Laser and Optical Systems

Sapphire tube EFG double side polish for Laser and Optical Systems

Abstract

Sapphire tubes manufactured using the EFG (Edge-defined Film-fed Growth) method and polished on both ends are emerging as a key component in advanced laser and optical systems. Renowned for their exceptional durability, optical clarity, and resistance to extreme environments, EFG sapphire tubes are becoming the go-to choice for engineers and designers requiring high-performance transparent materials. These tubes offer a unique combination of mechanical hardness, thermal stability, and broad-spectrum transparency, making them ideal for applications ranging from high-power lasers to semiconductor processing chambers. In this article, we explore the defining features, benefits, and real-world uses of double-side polished EFG sapphire tubes.

Sapphire Tube's Properties

Sapphire (single crystal aluminum oxide, Al₂O₃) is one of the hardest and most chemically stable materials available for optical components. When fabricated into a tube using the EFG method and then double-end polished, it gains a set of properties particularly suited for high-precision industrial and scientific applications.


1. Exceptional Hardness

Sapphire ranks 9 on the Mohs hardness scale—second only to diamond. This extreme hardness ensures that sapphire tubes are scratch-resistant and maintain their surface integrity even under mechanical wear.


2. High Optical Transparency

EFG sapphire tubes offer excellent transmittance in a wide spectral range—from deep ultraviolet (around 150 nm) to mid-infrared (up to 5.5 µm). This broad-spectrum clarity makes them suitable for various optical and laser-based applications.


3. High Temperature Resistance

Sapphire can withstand temperatures up to 2000°C in a vacuum environment, making it one of the best materials for high-temperature laser and optical systems.


4. Excellent Chemical Stability

Sapphire is chemically inert and resists corrosion from most acids, alkalis, and solvents, including hydrofluoric acid and plasma environments, which is why it's a top choice in semiconductor fabrication.


5. Superior Thermal Conductivity

Compared to most optical glass, sapphire has better thermal conductivity, ensuring efficient heat dissipation in high-power systems.


6. Optical Surface Polish (Double Side)

The double-side polish enhances both clarity and flatness, reduces scattering, and enables precise integration with sealing or bonding systems. It also improves the laser-induced damage threshold (LIDT) for high-power optics.


Sapphire Tube’s Applications

The unique blend of optical and mechanical properties gives sapphire tubes an edge across a range of industries. Here are some of the most common application areas:

1. Laser Systems


EFG sapphire tubes are used in laser beam delivery systems, especially for high-power lasers such as fiber lasers, CO₂ lasers, and solid-state lasers. Their transparency and damage resistance allow for stable and precise beam transmission in harsh operating environments.

• Protective Windows: In laser welding or cutting systems, sapphire tubes can serve as protective sleeves for lenses and sensors.

• Cooling Channels: In diode laser systems, they may serve as transparent conduits for coolant flow, combining optical monitoring with thermal regulation.


2. Optical Instruments


Sapphire tubes are often used in high-precision optical setups requiring long-term stability and clarity under environmental stress.

• Spectroscopy and Sensing: These tubes are ideal in Raman spectrometers or fluorescence detection systems where high optical clarity is essential.

• Fiber Optics and Light Guides: Polished sapphire tubes can act as light pipes in fiber optic assemblies or as alignment sleeves for optical connectors.


3. Semiconductor Equipment


The semiconductor industry demands materials that withstand reactive gases and high temperatures. Sapphire tubes meet these requirements:

• CVD/MOCVD Reactor Chambers: As part of plasma-facing components, they resist etching and particle generation.

• Observation Windows: EFG sapphire tubes serve as transparent sight glasses for visual monitoring inside vacuum chambers.


4. Medical and Life Sciences


In life sciences, sapphire’s biocompatibility and optical properties make it suitable for specialized devices:

• Flow Cells in HPLC: Sapphire tubes are used in high-pressure liquid chromatography where chemical resistance and transparency are crucial.

• Endoscopic Instruments: Their scratch resistance and clarity allow for high-definition imaging in medical diagnostics.


5. Aerospace and Defense


Sapphire tubes are employed in harsh aerospace environments, such as:

• Missile Optical Domes: Due to their strength and thermal resistance.

• Sensor Protection: For protecting optical sensors against sand, wind, and thermal shock.




Real Product Photos and Manufacturing Insight

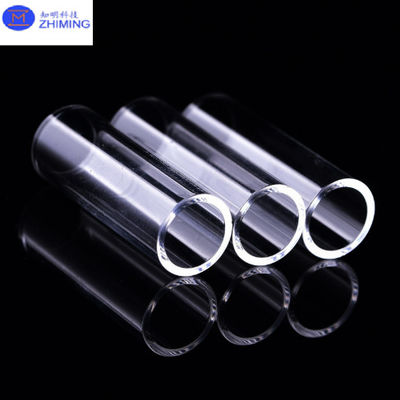

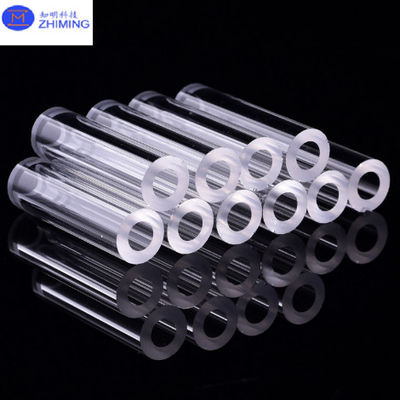

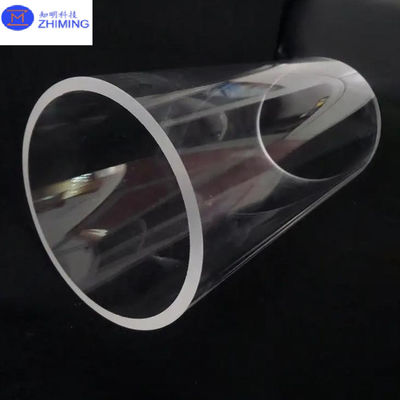

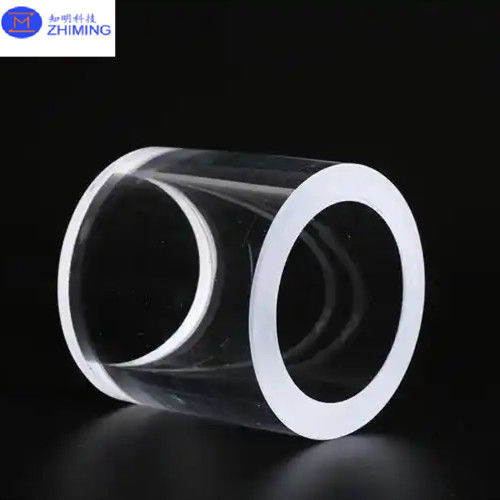

In the above image, you can see a series of high-purity EFG sapphire tubes that have been polished to optical standards on both ends.



The tubes demonstrate:


• Perfect Cylindrical Symmetry: Ensures consistent beam propagation and mechanical fit.

• Uniform Inner and Outer Diameters: Enables precise alignment in optical assemblies or pressure vessels.

• Crystal Clarity: Highlighting the quality of both the raw material and polishing technique.


Customization Options:


• Outer Diameter: Typically from 3 mm to 100 mm.

• Wall Thickness: From 0.5 mm to 10 mm.

• Length: Up to 300 mm or more on request.

• Orientation: Random or specified (C-axis, A-axis, etc.) for birefringence-sensitive applications.


Polishing Grade:


• Up to Ra ≤ 0.3 μm surface roughness.

• Optical polish on both faces ensures minimal light scattering.



Why Choose EFG Double-Polished Sapphire Tubes?


The EFG method allows the direct growth of hollow tubes, eliminating waste and enabling tighter control over dimensions. Combined with precision double-sided polishing, this fabrication approach guarantees high-performance parts with:

• Cost-effectiveness for mass production.


• Repeatability for consistent system integration.


• Longevity even in the most challenging environments.



When compared to traditional glass or quartz tubes, sapphire not only outperforms in strength and durability but also offers superior optical and thermal properties that justify its use in mission-critical applications.



Conclusion

EFG sapphire tubes with double-side polish represent the pinnacle of material engineering for modern laser and optical applications. Their unmatched combination of hardness, optical transmission, thermal resistance, and chemical stability makes them indispensable in industries where precision, performance, and durability are paramount. Whether you're developing a cutting-edge laser system, building sensitive scientific instruments, or engineering components for aerospace environments, sapphire tubes are a reliable and forward-looking choice.

For custom sizes, coating options, and bulk pricing, feel free to contact our technical sales team. We offer full OEM support, fast lead times, and global shipping.


Q&A

Q: What is a sapphire tube and what is it used for?


A: A sapphire tube is a cylindrical component made from synthetic sapphire (single-crystal aluminum oxide, Al₂O₃), known for its exceptional hardness, high optical clarity, and resistance to heat and chemicals. Sapphire tubes are commonly used in laser systems, optical instruments, semiconductor processing equipment, and medical devices. Their transparency across a broad spectrum (UV to IR), as well as their durability in extreme environments, make them ideal for high-precision and high-stress applications.
