ITO Coated Glass Slide Indium Tin Oxide Coated Glass Transparent Window 1mm 10ohm

ITO coated glass slide indium tin oxide coated glass transparent window 1mm 10ohm

ITO glass presentation

ITO glass substrate is a glass surface coated with Indium Tin Oxide (ITO) transparent conductive film material. ITO is a highly transparent conductive oxide with excellent optical transparency and electrical conductivity. The preparation process usually adopts magnetron sputtering, vacuum evaporation or chemical vapor deposition to form a uniform film on the glass substrate. ITO glass substrate is widely used in the field of optoelectronics because of its unique properties, and is one of the core materials of many electronic devices and display technologies.

The thickness of ITO films is usually between tens to hundreds of nanometers, and its conductivity and transparency can be optimized by adjusting the indium-tin ratio and process parameters. In addition, the ITO glass substrate has good chemical stability and mechanical strength, and can maintain stable performance in a variety of environments.

ITO glass properties

1. High transparency: ITO film has a transmittance of more than 90% in the visible light range, which is suitable for optical and display devices.

2. Excellent electrical conductivity: Low surface resistance, usually between 10-100 ohms/cm2, meets the conductive needs of most electronic devices.

3. Chemical stability: resistant to acid and alkali corrosion, able to maintain stable performance in harsh environments.

4. High mechanical strength: the glass substrate has good hardness and wear resistance, suitable for processing and use.

5. Strong machinability: patterning can be carried out through photolithography, etching and other processes to meet the needs of complex circuit design.

ITO glass Applications

1. Display technology: widely used in liquid crystal display (LCD), organic light-emitting diode (OLED) and touch screen display devices, as a transparent electrode material.

2. Photovoltaic field: transparent conductive layer for solar cells to improve photoelectric conversion efficiency.

3. Smart window: As the conductive layer of electrochromic glass, realize the intelligent regulation of light.

4. Sensors: For the manufacture of touch sensors, gas sensors and biosensors.

5. Lighting technology: Used as a transparent electrode in LED and flexible lighting devices to improve luminous efficiency.

With its unique properties, ITO glass substrate plays an important role in the fields of optoelectronics, electronics and energy, and is one of the indispensable key materials in modern high-tech industry.

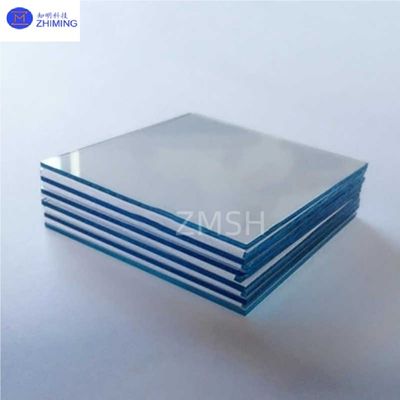

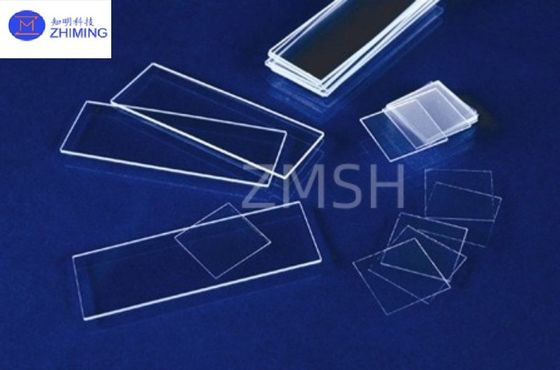

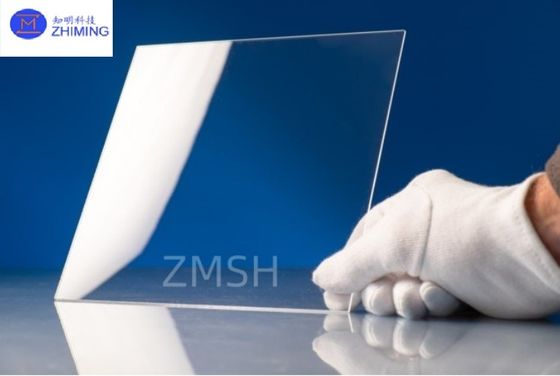

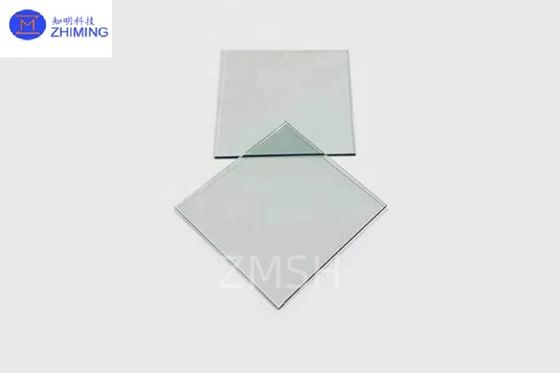

Sample display

Q&A

Q: What is ITO Conductive Glass?

A: 1. ITO conductive glass is manufactured by depositing silicon dioxide (SiO2) and indium tin oxide (commonly referred to as ITO) thin films on the basis of soda-lime or borosilicate glass by using a magnetron measurement method.

     2. ITO is a metal compound with good transparent and conductive properties. It has the characteristics of forbidden bandwidth, high light transmittance and low resistivity in the visible spectrum region. It is widely used in affirmative display devices, solar cells, and special functional window coatings. Laboratory equipment and other optoelectronic devices.

Tag: #ITO coated glass, #Indium tin oxide coated glass, #ITO Indium tin oxide, #Semiconductor #Transparent window slice
