Lutetium Oxyorthosilicate LSO Crystal High Scintillation Efficiency For PET SPECT
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Model Number: | LSO |
|
Detail Information |
|||
| Systema Crystallum: | Monoclinic | Exustio Point (℃): | 2070 |
|---|---|---|---|
| Densitas (g/cm*3): | 7.3~7.4 | Duritia (Mho): | 5.8 |
| Index Refractivus: | 1.82 | Lux Output (Comparans NaI (Tl)): | 75% |
| Tempus Interitus (ns): | ≤42 | Necem(um).: | 410 |
| Anti-radialis (rad): | 1×10^8 | ||
| High Light: | PET SPECT Lutetium Oxyorthosilicate LSO crystal,PET SPECT LSO crystal,High scintillation efficiency LSO crystal |
||
Product Description
Lutetium Oxyorthosilicate LSO crystal High scintillation efficiency for PET SPECT
Lutetium Oxyorthosilicate LSO crystal 's abstract
Lutetium oxyorthosilicate (LSO) crystal is a prominent scintillator material extensively utilized in medical imaging devices, such as positron emission tomography (PET) scanners, due to its excellent combination of properties including high light yield, fast decay time, and high density. This abstract aims to provide a concise overview of the key characteristics and applications of LSO crystals.
LSO crystals belong to the family of cerium-doped lutetium-based scintillators, where the incorporation of cerium allows for efficient energy transfer and emission of scintillation photons upon interaction with ionizing radiation. The intrinsic properties of lutetium and silicon ions in the crystal lattice contribute to its exceptional performance, making it a preferred choice in various high-energy physics experiments and medical imaging applications.
One of the remarkable features of LSO crystals is their high light yield, which refers to the amount of scintillation light produced per unit of deposited energy. This property is crucial for achieving high sensitivity and spatial resolution in PET imaging systems, enabling accurate detection and localization of positron-emitting radiotracers used for functional imaging of biological processes.
Furthermore, LSO crystals exhibit fast decay time characteristics, facilitating rapid signal detection and processing in imaging systems. The short decay time ensures minimal blurring of images and enables high temporal resolution, essential for dynamic PET studies and real-time imaging applications.
Moreover, LSO crystals offer excellent energy resolution, allowing for precise determination of the energy of incoming photons or particles. This capability is particularly advantageous in spectroscopic imaging techniques, where accurate energy discrimination is required to distinguish between different types of radiation and enhance the specificity of imaging.
In addition to medical imaging, LSO crystals find applications in high-energy physics experiments, homeland security, and environmental monitoring, demonstrating their versatility and reliability across diverse scientific and industrial domains.
In conclusion, LSO crystals represent a vital class of scintillator materials characterized by exceptional performance metrics, including high light yield, fast decay time, and excellent energy resolution. Their widespread adoption in PET scanners and other imaging devices underscores their significance in advancing medical diagnostics and scientific research endeavors.

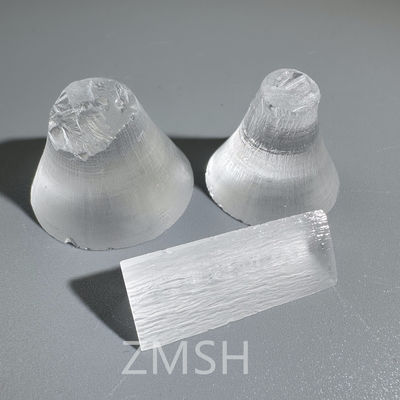

Lutetium Oxyorthosilicate LSO crystal 's showcase
Lutetium Oxyorthosilicate LSO crystal 's data sheet
| Crystal System | Monoclinic |
| Melting Point (℃) |
2070 |
| Density (g/cm3) | 7.3~7.4 |
| Hardness (Mho) | 5.8 |
| Refractive Index | 1.82 |
| Light Output (Comparing NaI(Tl)) | 75% |
| Decay Time (ns) | ≤42 |
| Wavelength (nm) | 410 |
| Anti-radiation (rad) | ＞1×108 |
Lutetium Oxyorthosilicate LSO crystal 's applications
-
Medical Imaging: LSO crystals are extensively used in medical imaging devices, particularly in positron emission tomography (PET) scanners. These crystals play a crucial role in detecting the gamma rays emitted by positron-emitting radiotracers injected into the body. LSO's high light yield, fast decay time, and excellent energy resolution contribute to the high sensitivity, spatial resolution, and quantitative accuracy of PET imaging, enabling the visualization and quantification of physiological processes and disease states.
-
High-Energy Physics Experiments: LSO crystals are employed in high-energy physics experiments for the detection and measurement of particles generated in particle accelerators and colliders. Their ability to efficiently convert ionizing radiation into scintillation light, coupled with their fast response time and excellent energy resolution, makes them valuable detectors for studying fundamental particles and their interactions.
-
Homeland Security: LSO crystals are utilized in radiation detection and monitoring systems for homeland security purposes. These systems are designed to detect and identify radioactive materials, including those that may be associated with illicit activities or threats to public safety. LSO's sensitivity to gamma radiation, combined with its ability to provide accurate energy measurements, makes it suitable for use in radiation portal monitors, handheld detectors, and other security screening devices.
-
Environmental Monitoring: LSO crystals are employed in environmental monitoring applications for the detection and measurement of ionizing radiation in the environment. They are used in radiation monitoring networks and environmental surveillance systems to assess the levels of radiation in air, water, soil, and food products. LSO's sensitivity, stability, and reliability make it well-suited for long-term monitoring of environmental radioactivity and ensuring compliance with regulatory standards for radiation protection.
-
Nuclear Medicine Research: LSO crystals are utilized in nuclear medicine research for studying the behavior of radiopharmaceuticals and investigating new imaging techniques and applications. Researchers utilize LSO-based detectors to perform preclinical studies, develop imaging algorithms, and evaluate the performance of novel imaging systems. LSO's versatility and performance characteristics make it a valuable tool for advancing the field of nuclear medicine and molecular imaging.
Overall, LSO crystals play a critical role in various scientific, medical, and industrial applications, where their exceptional scintillation properties contribute to improved detection sensitivity, spatial resolution, and accuracy in diverse imaging and radiation detection systems.
Lutetium Oxyorthosilicate LSO crystal 's properties
-
High Light Yield: LSO crystals exhibit a high light yield, meaning they produce a significant amount of scintillation light in response to ionizing radiation interactions. This property is essential for maximizing the detection efficiency and sensitivity of scintillation detectors, such as those used in PET scanners, where the conversion of gamma-ray energy into visible light is critical for imaging purposes.
-
Fast Decay Time: LSO crystals have a fast scintillation decay time, typically on the order of tens of nanoseconds. This rapid decay enables quick detection and signal processing, leading to improved temporal resolution in imaging systems. Fast decay times are particularly advantageous in dynamic imaging applications, where capturing rapid physiological processes requires precise temporal information.
-
Excellent Energy Resolution: LSO crystals offer excellent energy resolution, allowing them to differentiate between gamma-ray energies with high precision. This property is crucial for accurately identifying and quantifying the energies of incoming radiation particles or photons, enhancing the specificity and accuracy of imaging and spectroscopy applications.
-
High Density: LSO crystals have a relatively high density, which contributes to their effective stopping power for ionizing radiation. The high density enables efficient absorption of gamma rays and other high-energy particles, leading to improved detection sensitivity and signal-to-noise ratios in scintillation detectors.
-
Good Chemical Stability: LSO crystals exhibit good chemical stability, making them resistant to degradation and suitable for long-term use in various environmental conditions. Their stability ensures consistent performance over time, essential for reliable operation in medical imaging devices and other sensitive applications.
-
High Z-Number: LSO crystals contain lutetium, a heavy element with a high atomic number (Z), which enhances their interaction with gamma rays and other ionizing radiation. This characteristic contributes to their high stopping power and efficient conversion of radiation energy into scintillation light, improving the overall sensitivity and performance of scintillation detectors.
-
Optical Transparency: LSO crystals are optically transparent, allowing scintillation light produced within the crystal to be efficiently collected and detected by photodetectors. This property ensures high photon detection efficiency and minimizes light attenuation, resulting in improved energy resolution and spatial resolution in imaging systems.
Overall, the combination of these properties makes LSO crystals highly versatile and valuable for a wide range of applications, including medical imaging, high-energy physics experiments, radiation detection, and environmental monitoring. Their exceptional performance characteristics contribute to advancements in imaging technology and scientific research across various disciplines.
