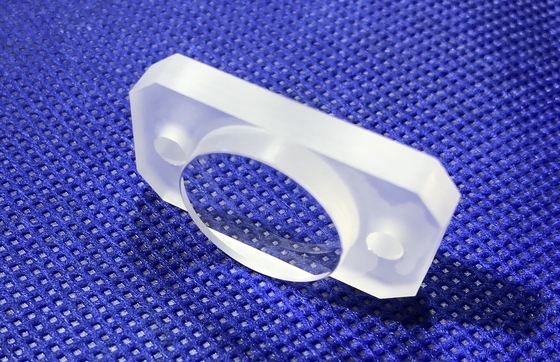

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts

  • High Light

    K9 Polishing Sapphire Optical Windows

    ,

    High Temperature Resistant Sapphire Parts

    ,

    Custom Quartz Sapphire Optical Windows

  • Material
    Sapphire Optical Grade
  • Orientation
    C-axis
  • Surface S/D
    Polished/unpolished
  • Tolerance
    ±0.03mm
  • Application
    Equipment Window
  • Grade
    Optical Grade Without Bubble;color
  • Transmittance
    >70% At 200nm
  • Place of Origin
    CHINA
  • Brand Name
    zmkj
  • Model Number
    Step window
  • Minimum Order Quantity
    10pcs
  • Price
    by case
  • Packaging Details
    packed in Capacitor paper +Sponge paper+paper case
  • Delivery Time
    1-3weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    5000pcs per month

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts

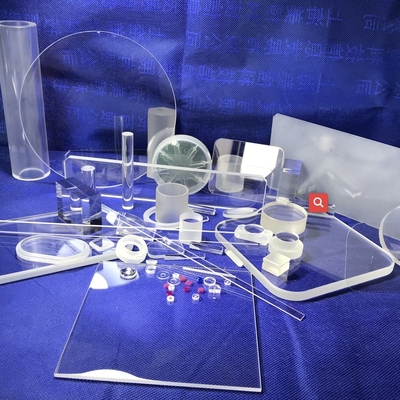

prolate ellipse/plano/Round Sapphire optical glass window sector sapphire glass/ sapphire window/sapphire optical plate for vacuum equipment watch window trapezoidal step circular square customized by clients sapphire parts/ sapphire component

Welcome to Know Sapphire~~

Synthetic sapphire is transparent single crystal 99.99% pure Al2O3 that exhibits a unique combination of physical, chemical, electrical and optical properties: high thermal conductivity, high strength and scratch resistance, hardness (9 on the Mohs scale), transparent in wide range of wavelength, chemical inertness.
High crystal perfection, low reactivity, and appropriate unit cell size make sapphire an excellent substrate in the semiconductor industry for blue light-emitting diodes (LED).
Since Nobel Laureate in Physics Shuji Nakamura used the sapphire substrate in 1990s for LED, the demand of sapphire crystal has been growing rapidly.

It drives development of new markets like general lighting, backside lighting in TV-sets, displays, consumer appliances, aerospace and defense, and other applications

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 0





Sapphire physical property

  1. A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV and IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved).
  2. Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
  3. Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.




Sapphire Processing

Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing



Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 1



Rough & Polished windows  process  capacity



Production Name
plano concave lens
Material
optical glass
Surface Quality
60/40,40/20,20/10,
Dimention Tolerance
+/-0.01
Diameter
dia1~400mm/Customer request
clear aperture
>98%
 thickness
1-200mm
color
transparent
coating
antireflection /Customer request
Application
optical equipment



Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 2Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 3Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 4Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 5



Our  Related Products



             LiTaO3 ingot                                                        Colored Sapphire

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 6Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 7

          SiC     Crystal                                                                  MgO/LaAlO3/STO crystal

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 8Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 9

  • We can fabricate the sapphire glass from rough material plate to polished window
  • We have the very Fast delivery capacity within 15days by Customized size
  • In addition,we Support  { ONE WEEK REFUND MONEY} if not qualified.
  • We also can make substrates, wafers, rods,Bump join; Lens with step&hole



About Our Company & Factory

ZMKJ has been fabricating micro to large sapphire windows, sight glasses and flats for over 10 years. Although sapphire is often more costly than glass and other transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often eliminating the need for PM periodic replacements.

We are also specialize in providing a varity of materials wafers, substrates, components, products are widely used in electronics, optics, optoelectronics and many other fields. We've been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.

It's our vision to explore and develope cutting edge application of new materials with customers together.

Quartz / K9 Custom Polishing Sapphire Optical Windows High Temperature Resistant Sapphire Parts 10
FAQ & CONTACT



Q:What is your minimum order requirement?
A:MOQ:1 piece

Q:How long will it take to execute my order ?
A:After confirming the payment.

Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q:How to pay?
A:T/T, Paypal, West Union, bank transfer and  or Assurance payment on Alibaba and etc.

Q:Can you produce custom optics?
A:Yes, we can produce custom optics
Q:If you have any other questions,please do not hesitate to contact me.
A:Tel+:86-15801942596 or skype:wmqeric@sina.cn
