Ultra Thin DSP Sapphire Windows High Optical Transmittance Sapphire Substrate Wafer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZMKJ |
| Model Number: | Process according to the drawing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | usd30/pc |
| Packaging Details: | 25pcs cassettle wafer case in 100 grade cleaning bag |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Substrate Grade | Orientation: | C-AXIS/A-AXIS/M-AXIS |
|---|---|---|---|
| Thickness: | 100um(other Thickness Ok) | Surface: | DSP/SSP/AS-CUT |
| TTV: | ＜10um | BOW: | ＜10um |
| Warp: | ＜10um | Package: | 100 Grade Cleaning Room By Vacuum Package |
| Customize: | Acceptable | ||
| High Light: | DSP Sapphire Windows,Ultra Thin Sapphire Windows,Optical Sapphire Substrate Wafer |
||
Product Description
Ultra-thin 2inch sapphire DSP wafers thickness 100um 0.1mm
2inch 100um Ultra Thin sapphire wafers 0.1mm Thickness C-plane DSP Sapphire wafer
Why Sapphire?
1. Sapphire has a high optical transmittance, so it is widely used as microelectronic tube dielectric material, ultrasonic conduction element, waveguide laser cavity, and other optical elements, as window materials for infrared military devices, space vehicles, high-intensity lasers and optical communications.
2. Sapphire has high rigidity, high strength, high working temperature, abrasion resistance, corrosion resistance characteristics, so sapphire substrate is often used in harsh environments, such as boiler water gauge (high-temperature resistance), commodity bar code scanner, bearing, and other precision manufacturing (wear resistance), coal, gas, well detection sensors and detector windows (anti-corrosion).
3. Sapphire has the characteristics of electrical insulation, transparency, good thermal conductivity, and high rigidity, so it can be used as the substrate material of integrated circuits, such as LED and microelectronic circuits, ultra-high-speed integrated circuit.
PRODUCT DESCRIPTION

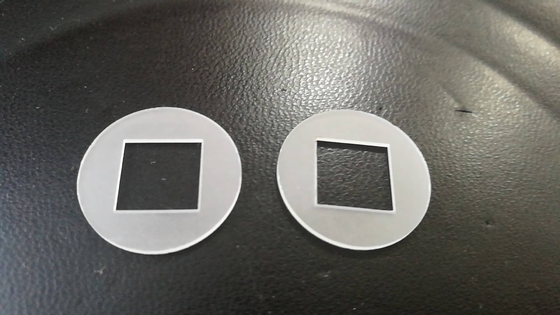

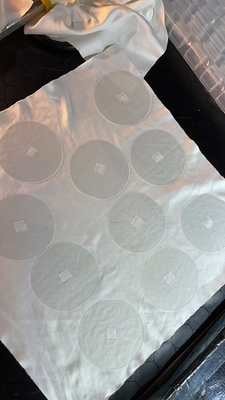

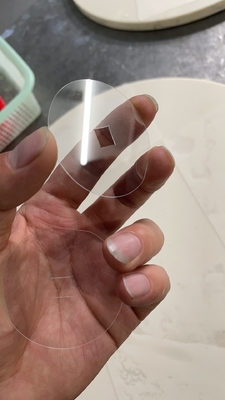

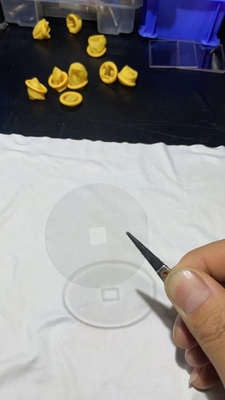

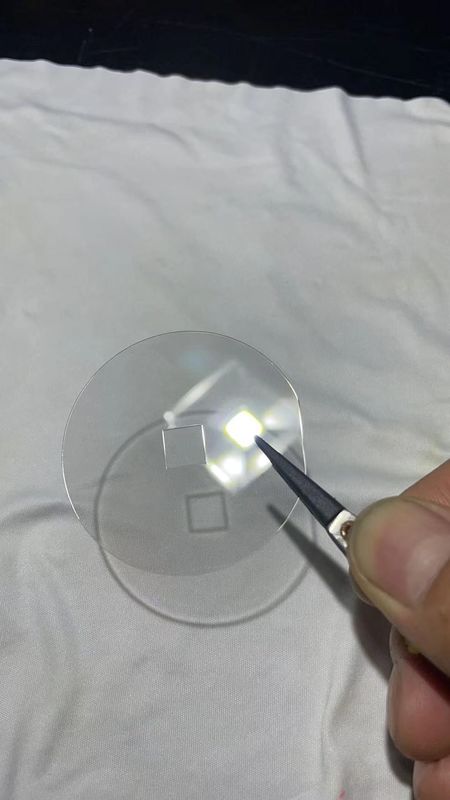

customized shape sapphire optical window by laser cut
1. Sappphire applications
- Growth substrate for III-V and II-VI compounds
- Electronics and optoelectronics
- IR applications
- Silicon On Sapphire Integrated Circuit(SOS)
- Radio Frequency Integrated Circuit(RFIC)
- wear corrosion resistance optical lens for protective cover glass
- sapphire bearing ＆ sapphire ball & Radiating ceramic substrate
- Sapphire windows replace quartz in some extreme environment
2. Comparison of optical window materials
Material Properties Applications BK7 Transmission Range: 330-2100nm
Refractive Index: 1.5164@588nmMost popular and low cost
Visible and near IR spectrum applicationsFused Silica Transmission Range: 185-2500nm
Refractive Index: 1.4858@308nm
Low Thermal Expansion Coefficient: 0.54 x 10-6KUV to IR spectrum
Best choice for thermal resistance
application.Sapphire Transmission Range: 180-4500nm
Refractive Index: 1.755@1000nm
Strong HardnessBest choice for scratch resistance applications Thinner optics Wide Transmission Range Calcium Fluoride Transmission Range: 170-7800nm
Refractive Index: 1.399@5000nm
Little Hygroscopic Susceptibility
High Thermal Expansion Coefficient: 18.85 x 10-6KIR laser applications MgF2 Transmission Range: 120-7000nm
Refractive Index: 1.376@700nmUV laser applications Application●Aircraft windows●Submarine windows ●Industrial OEM●FLIR●Medical/Life Sciences●Intelligence,surveillance&reconnaissance(ISR)
Other Related Products
GaAs Substrates Colored Sapphire Crystal
Customized Sapphire lens/ LiTaO3 Ingots/ SiC Substrates/ LaAlO3 Substrates
Why Choose us
| Onsite engineers & master optician | |
| 10+ years of expertise in sapphire & exotic materials manufacturing | |
| ISO 9001:2008 Certified | |
| Can Customzied make many Difficult and complex sapphire parts | |
| State-of-the-art manufacturing equipment & measurement capabilities | |
| Cost saving overseas sourcing (for non-ITAR applications only) | |
Packing & Delivery
Packing Details : Packing, BOX,CARTONS
Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.
