Customized Size Sapphire Optical Window 2mm Thickness With Hole

Customized Size Sapphire Optical Window 2mm Thickness With Hole

Product Details:

Place of Origin: CHINA
Brand Name: ZMKJ
Certification: ROHS
Model Number: dia18mm

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: usd500/pcs
Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
Delivery Time: 2-4WEEKS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Crystal Orientation: C-AXIS
Thickness: 2mm(other Thickness Ok) Surface: DSP
Package: PET Films Customize: Acceptable
Thickness Tolerannce: ±30um Application: Optical Window
Shape: Round Shape SIZE: Dia
High Light:

customized sapphire optical window

,

2mm sapphire optical window

,

DSP custom sapphire windows

Product Description





 transparent customized size sapphire optical window with hole


Sapphire application



Application
Sapphire wafer and substrate applications include:
Microelectronic IC applications
SOS Silicon-on-Sapphire
The growth of superconducting compounds / Gallium Nitride
Infrared detectors
Hybrid microelectronics
Polishing carriers
Hostile environment
Optical transmission from ultraviolet to near infrared
High temperature
Radiation resistance



Product Name
Sapphire Ingot
Sapphire Wafer
Sapphire Crystal
Precision Sapphire Rod
Sapphire Substrate and Wafer
Sapphire Prism
Sapphire Screen Cover
Sapphire Optical Window
Sapphire Window
Sapphire Lenses



Product Description

Substrate
Sapphire (Al2O3)
Density
3.97g/cm3
Index of Refraction nd
1.77
Axis Orientation
Random
Young's Modulus
435GPa
Knoop Hardness
1900GPa
Surface Quality
80/50,60/40,40/20
Surface Flatness
2λ (typical)
Clear Aperture
≥90%
Customized Shape
Round, square, rectangular

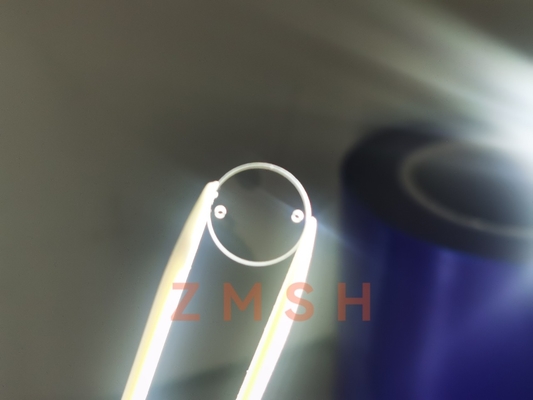

Customized Size Sapphire Optical Window 2mm Thickness With Hole 0

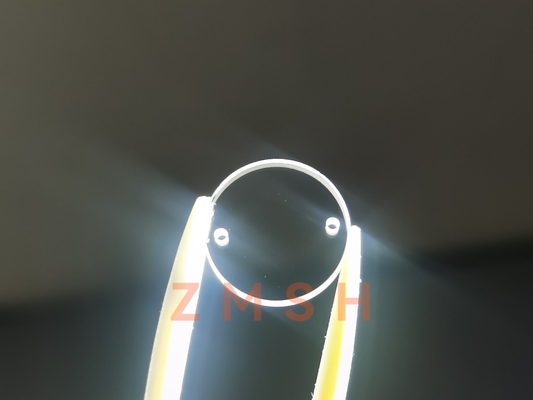

Customized Size Sapphire Optical Window 2mm Thickness With Hole 1

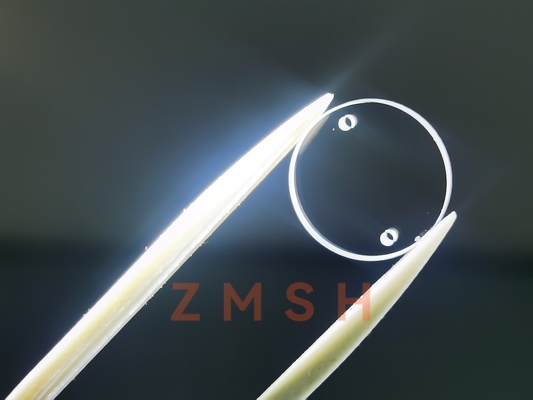

Customized Size Sapphire Optical Window 2mm Thickness With Hole 2


General  Other Size Sheet   on stocks

 Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS





                       2inch

DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt
SSP C-axis 0.2/0.43mm
(DSP&SSP) A-axis/M-axis/R-axis 0.43mm

                      3inch

DSP/ SSP C-axis 0.43mm/0.5mm

                     4Inch

dsp c-axis 0.4mm/ 0.5mm/1.0mm
ssp c-axis 0.5mm/0.65mm/1.0mmt

                      6inch

ssp c-axis 1.0mm/1.3mmm

dsp c-axis 0.65mm/ 0.8mm/1.0mmt



Products ddetail:

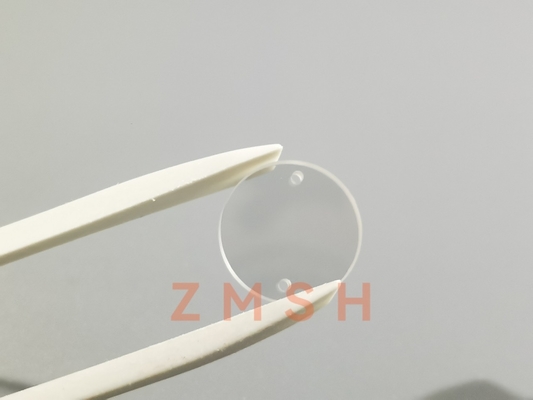

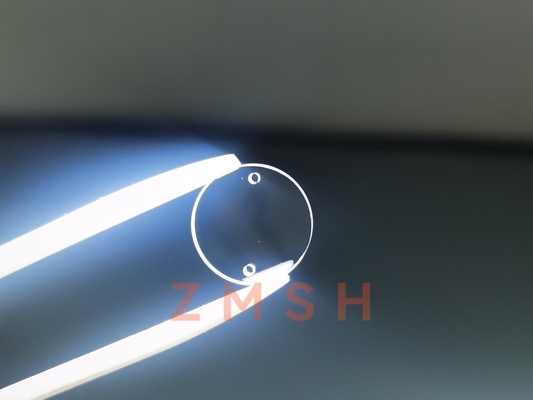

Customized Size Sapphire Optical Window 2mm Thickness With Hole 3Customized Size Sapphire Optical Window 2mm Thickness With Hole 4

FAQ



Q: What are your main products?

A: prime semiconductor wafer and Optical lens,mirrors,windows,filters,prisms



Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.



Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.



Q:What is your MOQ ?

MOQ is 25pcs for this wafers

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.


  Q: If you have any other questions,please do not hesitate to contact me.
      A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
       we are at your side any time~~
