DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows

DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows

Products - Sapphire Substrate
  • High Light

    200mm sapphire substrate

    ,

    Al2O3 sapphire substrate

    ,

    200mm sapphire wafers

  • Material
    Sapphire Substrate
  • Orientation
    C-AXIS
  • Thickness
    1.15mm(other Thickness Ok)
  • Surface
    DSP
  • TTV
    ＜10um
  • BOW
    ＜10um
  • Warp
    ＜10um
  • Package
    100 Grade Cleaning Room By Vacuum Package
  • Customize
    Acceptable
  • Thickness Tolerannce
    ±15um
  • Application
    Epitaxial
  • Shape
    Round Shape
  • SIZE
    DIA8INCH
  • Place of Origin
    CHINA
  • Brand Name
    ZMKJ
  • Certification
    ROHS
  • Model Number
    8inch sapphire
  • Minimum Order Quantity
    25pcs
  • Price
    usd500/pcs
  • Packaging Details
    25pcs cassettle wafer case in 100 grade cleaning bag
  • Delivery Time
    2-4WEEKS
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    1000pcs per month

DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows

  • DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows
  • DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows
  • DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows
  • DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows
  • DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows
Get Price Contact Now

 C-axis (0001) orientation 8inch diameter 200mm with notch DSP Sapphire Substrate wafers thickness 1.15mm C-a


Sapphire application



Application
Sapphire wafer and substrate applications include:
Microelectronic IC applications
SOS Silicon-on-Sapphire
The growth of superconducting compounds / Gallium Nitride
Infrared detectors
Hybrid microelectronics
Polishing carriers
Hostile environment
Optical transmission from ultraviolet to near infrared
High temperature
Radiation resistance



Product Name
Sapphire Ingot
Sapphire Wafer
Sapphire Crystal
Precision Sapphire Rod
Sapphire Substrate and Wafer
Sapphire Prism
Sapphire Screen Cover
Sapphire Optical Window
Sapphire Window
Sapphire Lenses
  • Product Description



    Product Name
    2-10" 4inch  C-Plane  Sapphire Glass Wafer
    Material
    Sapphire
    Diameter
    8inch dia200mm
    Diameter Tolerance
    +-0.1mm
    Thickness
    1150±25um
    Shape
    with notch
    Surface
    DSP
    Flatness
    >1lambda
    Surface Quality
    20/10
    Bevel
    yes
    Coating
    uncoated
General  Other Size Sheet   on stocks

 Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS





                       2inch

DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt
SSP C-axis 0.2/0.43mm
(DSP＆SSP) A-axis/M-axis/R-axis 0.43mm
                      3inch

DSP/ SSP C-axis 0.43mm/0.5mm
                     4Inch

dsp c-axis 0.4mm/ 0.5mm/1.0mm
ssp c-axis 0.5mm/0.65mm/1.0mmt
                      6inch

ssp c-axis 1.0mm/1.3mmm

dsp c-axis 0.65mm/ 0.8mm/1.0mmt



Products ddetail:

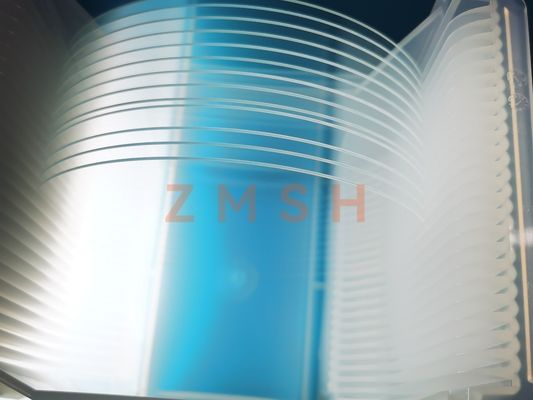

DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows 0DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows 1DSP 8inch 6inch Dia200mm monocrystalline Al2O3 Sapphire Substrate Prime Wafers sapphire wafers sapphire windows 2

FAQ



Q: What are your main products?

A: prime semiconductor wafer and Optical lens,mirrors,windows,filters,prisms



Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.



Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.



Q:What is your MOQ ?

MOQ is 25pcs for this wafers

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.


  Q: If you have any other questions,please do not hesitate to contact me.
      A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
       we are at your side any time~~
